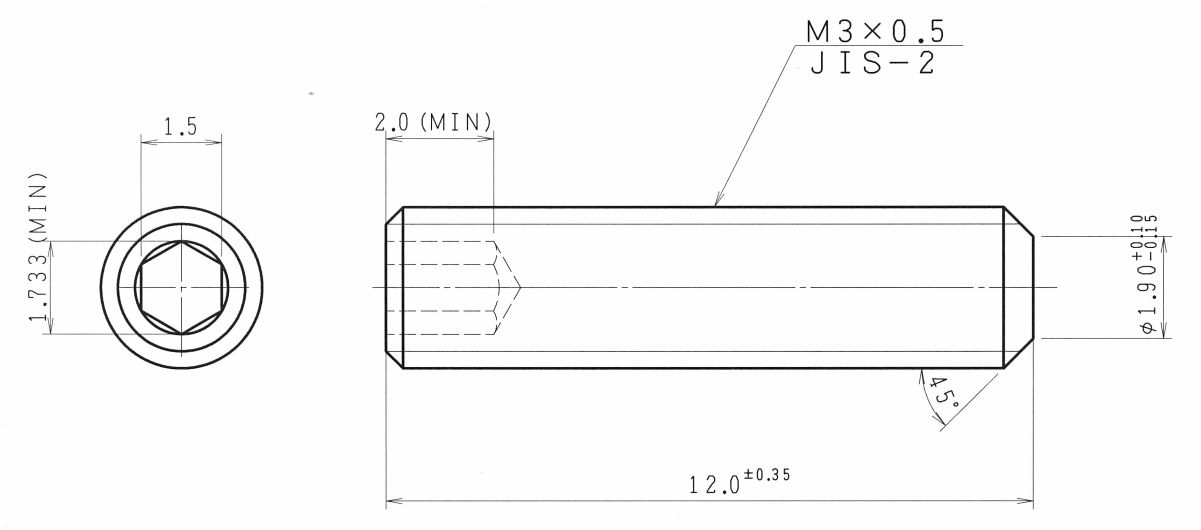

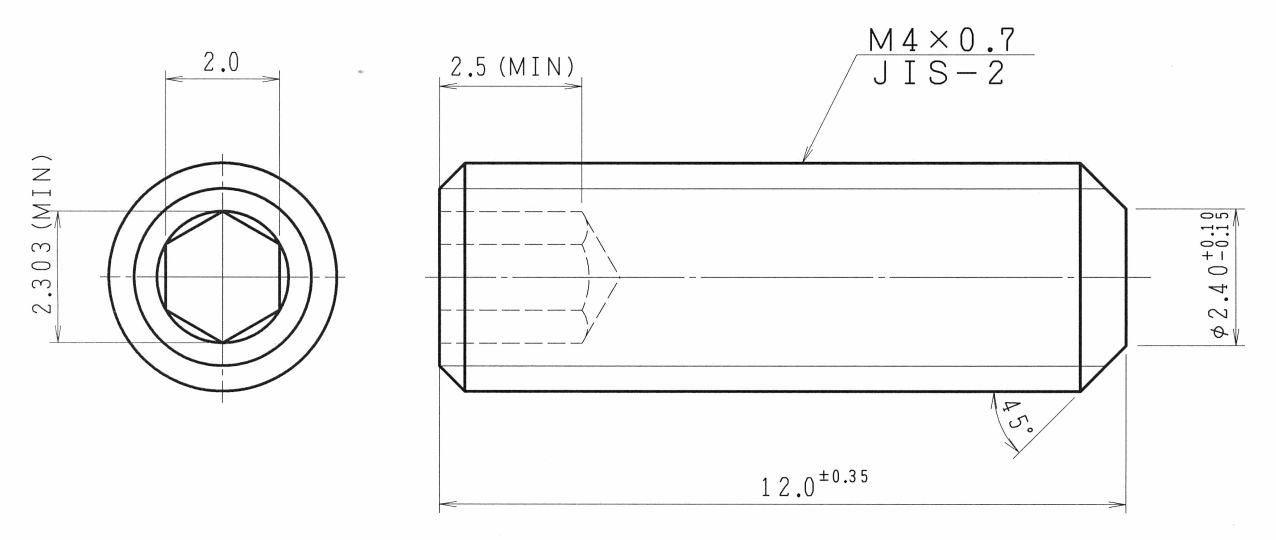

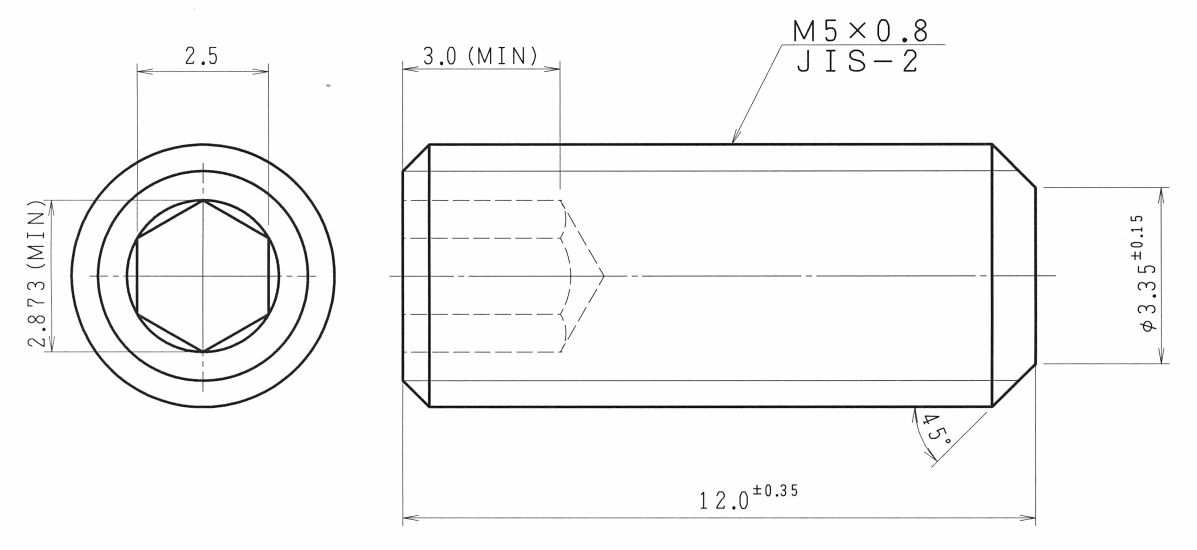

Overall length 12mm hexagon socket set screws sizes chart
Nominal diameter : M3, M4, M5
Material (Hardness) : Ni-Cr-Mo Steel (HRC50~53)
Overall length 12mm set screrw is not included in slotted set screws.
|5mm Length sizes chart, click here|
|6mm Length sizes chart, click here|
|8mm Length sizes chart, click here|
|10mm Length sizes chart, click here|
|12mm Length sizes chart|

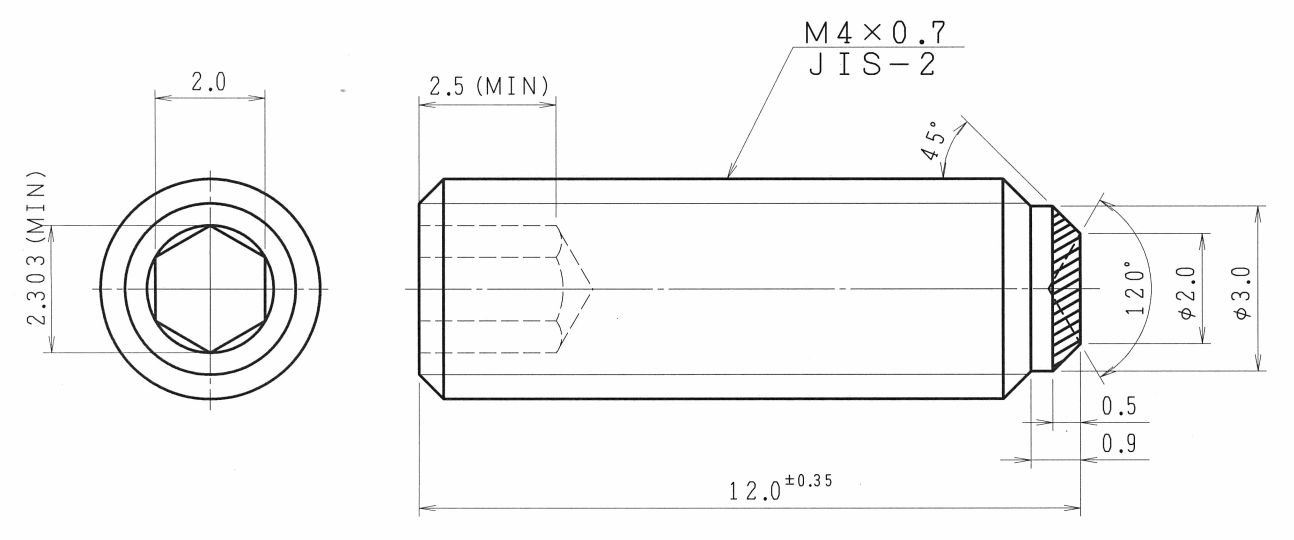

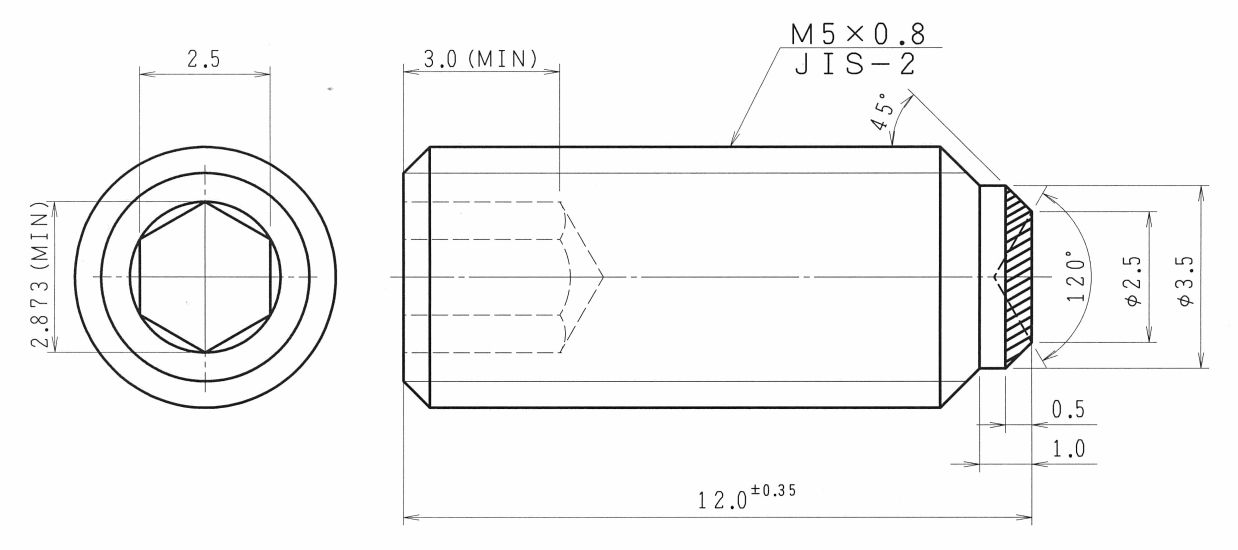

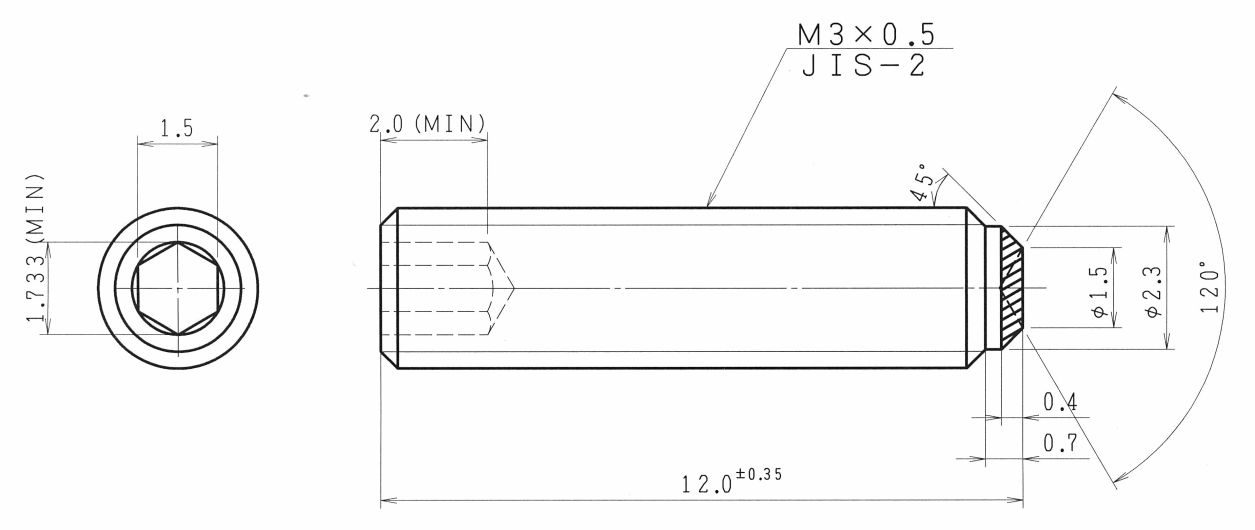

|Tip Shape||Cup Point
|Nominal diameter||length (mm)|
MOQ/SPQ ; 1,000/1,000 pcs
MOQ(Minimam Order Quantity) SPQ(Standard Packing Quantity)
Generally, small diameter of the hexagon socket cup point set screws, if it is tightened strongly in the hexagonal bar spanner, hexagonal hole is cracked. But our hexagon socket cup point set screws is using the Ni-Cr-Mo Steel (SNCM240) to the material. And furthermore, the precision of the hexagonal hole is good. In addition, the hardness by the heat treatment is high (HRC50 - 53), there is also toughness.
Therefore, the hexagonal hole is not broken even if you tighten it until you can wrench off a hexagonal bar spanner. At that time, when you move the magnet to the hexagonal hole, because it does not have a hexagonal hole deformed, broken hexagonal bar spanner is attracted to the magnet, it will be drawn from the hexagonal hole.
Our hexagon socket cup point set screw dries surface rust prevention oil with a vacuum hot-air drier after black oxide finish (surface treatment). Therefore, the hand of the assembling worker does not get oil at the time of work. In addition, this cup point set screws is easy to use in automated assembly, and it is hard to rust.
