We specialize in small hexagon set screws.

Hexagon set screw's nominal diameters are M1.6, M1.7, M2, M2.5, M2.6, M3, M4 and M5. Hexagon set screw's overall lengths are 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm and 12mm. Hexagon set screw's tip shapes are cup point, flat point, cone point, cup & cone point, knurled cup point.

SAIDA Manufacturing Co. Ltd.
Akiruno-city Tokyo JAPAN

Return to the previous place

Cup Point

Flat Point

Cone Point

CC Point

Knurled Cup

CC Point
	Hexagon socket Cup & Cone Point set screws sizes chart
	Opposite side distance of hexagon socket (S)
			S=0.9mm	S=1.3mm	S=1.3mm	S=1.5mm	S=2.0mm	S=2.5mm
Nominal Dia.	M1.6	M1.7	M2	M2.5	M2.6	M3	M4	M5
length (mm)	M1.6	M1.7	M2	M2.5	M2.6	M3	M4	M5
2			M2x2	CC point set screws is not in the JIS standards.
2.5			M2x2.5	M2.5x2.5	M2.6x2.5	M3x2.5
3			M2x3	M2.5x3	M2.6x3	M3x3

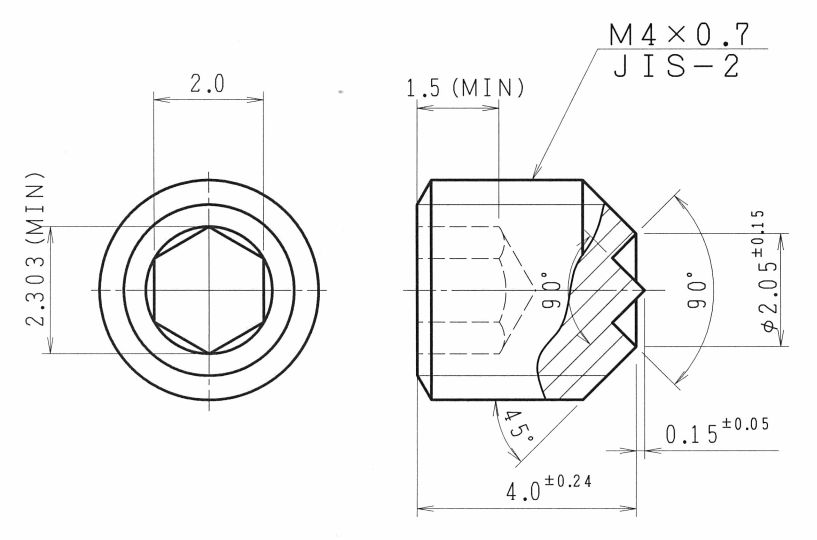

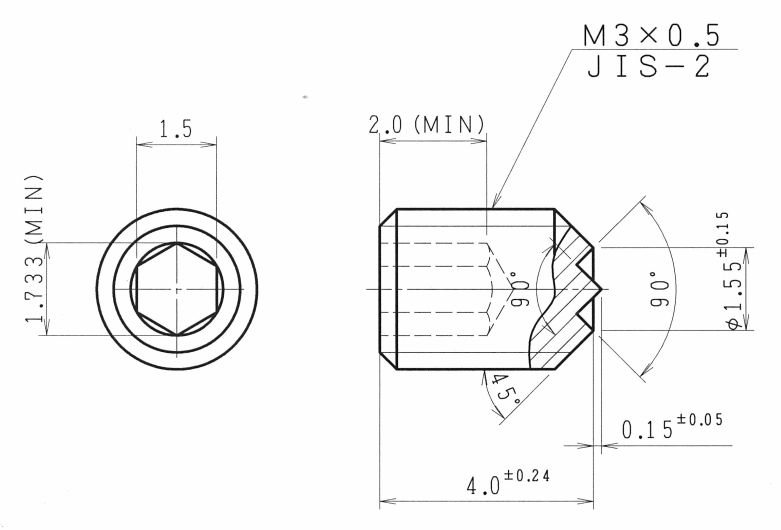

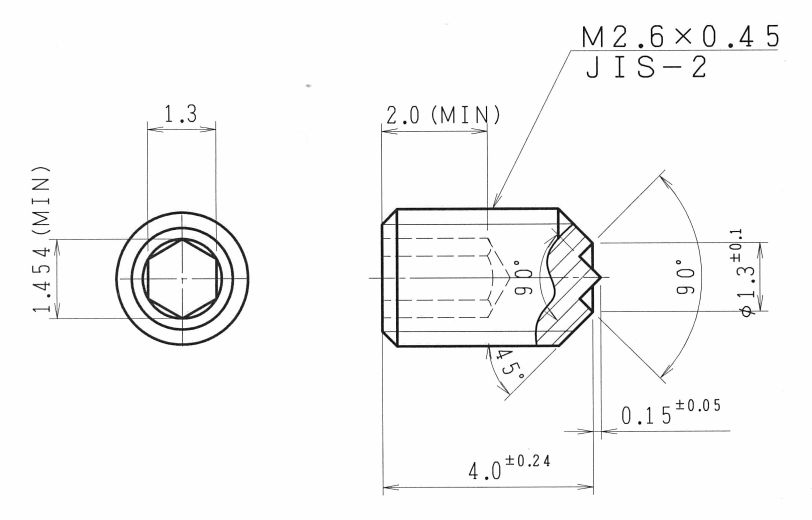

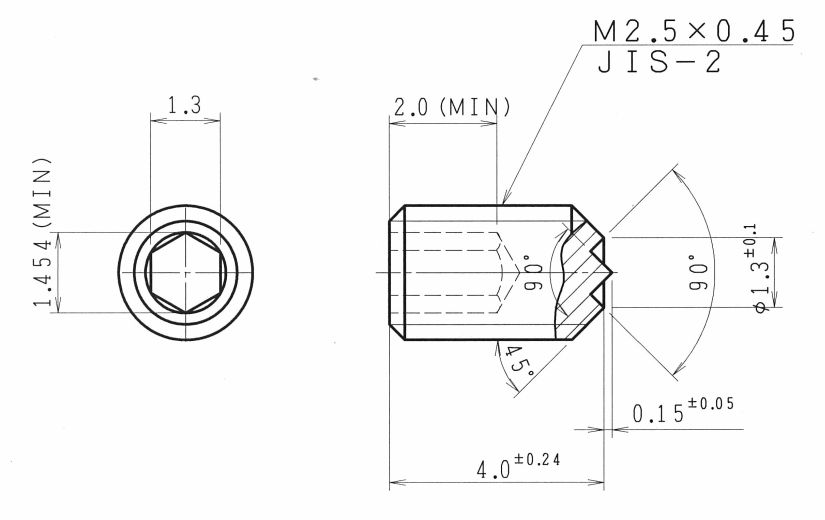

4			M2x4	M2.5x4	M2.6x4	M3x4	M4x4

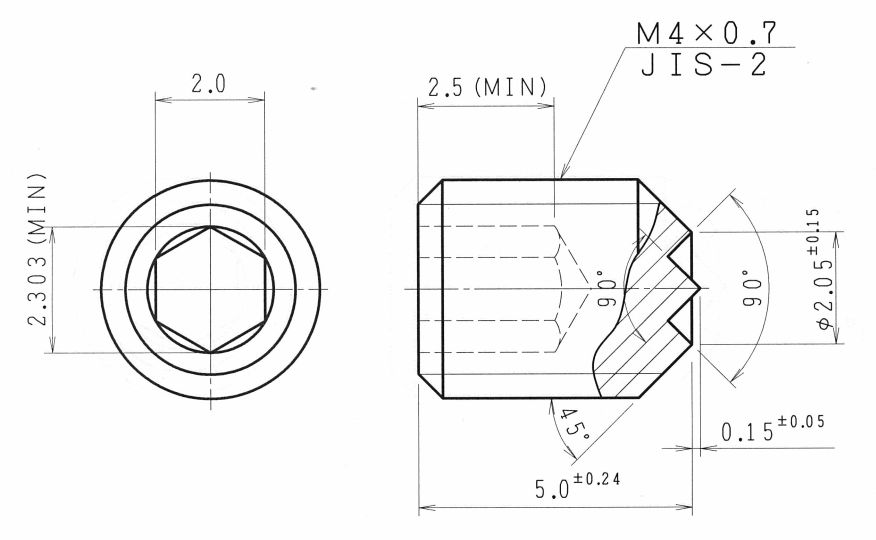

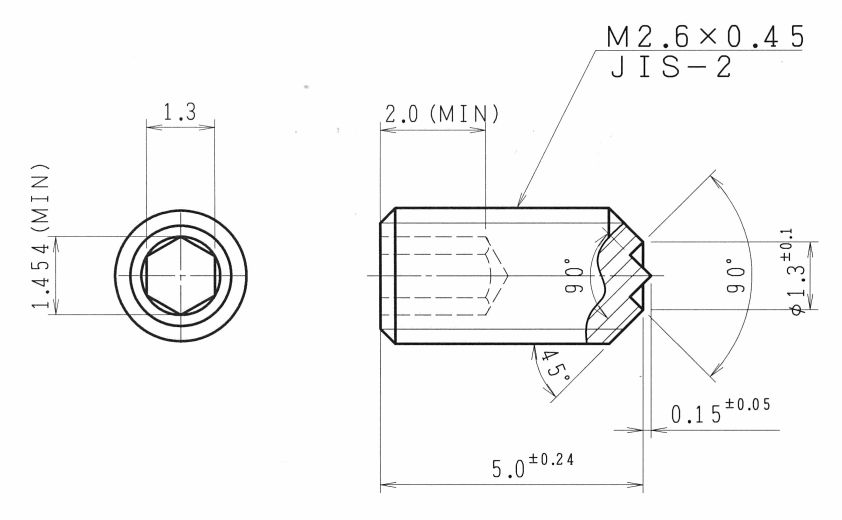

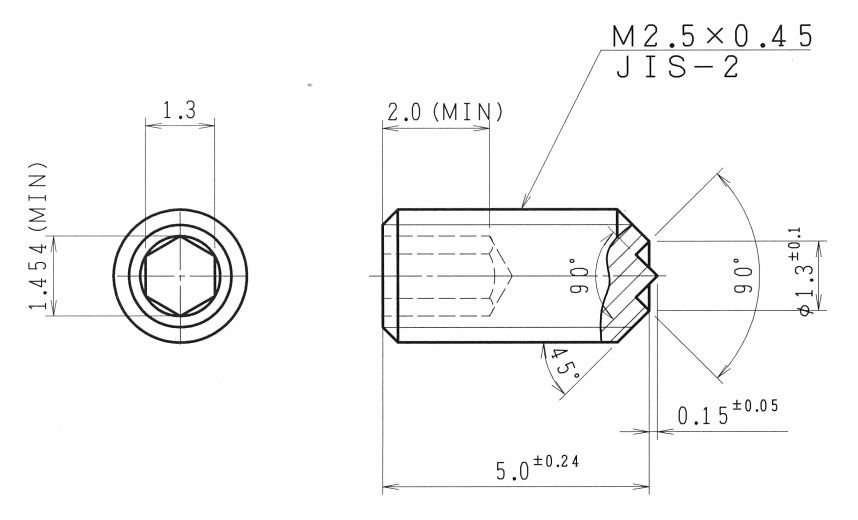

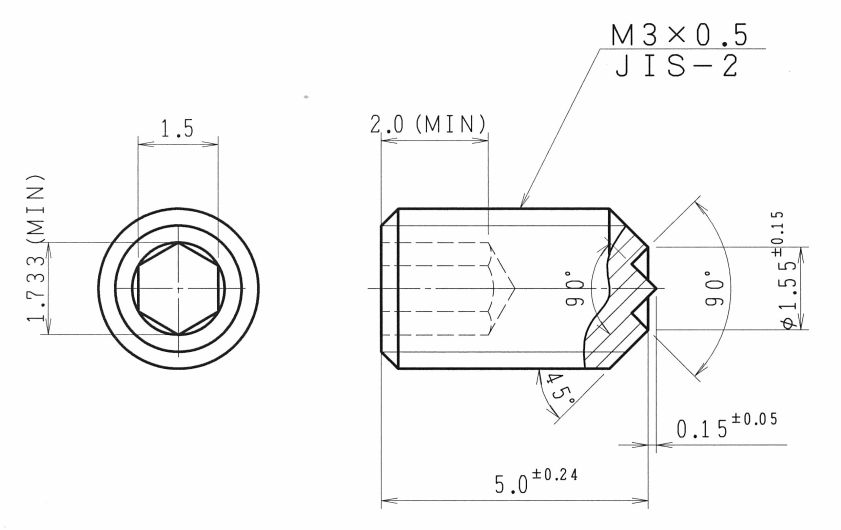

5			M2x5	M2.5x5	M2.6x5	M3x5	M4x5	M5x5

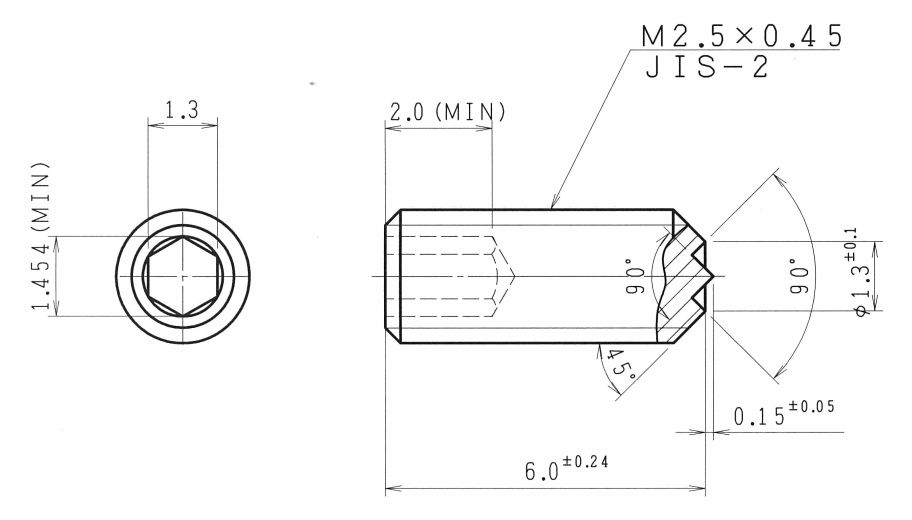

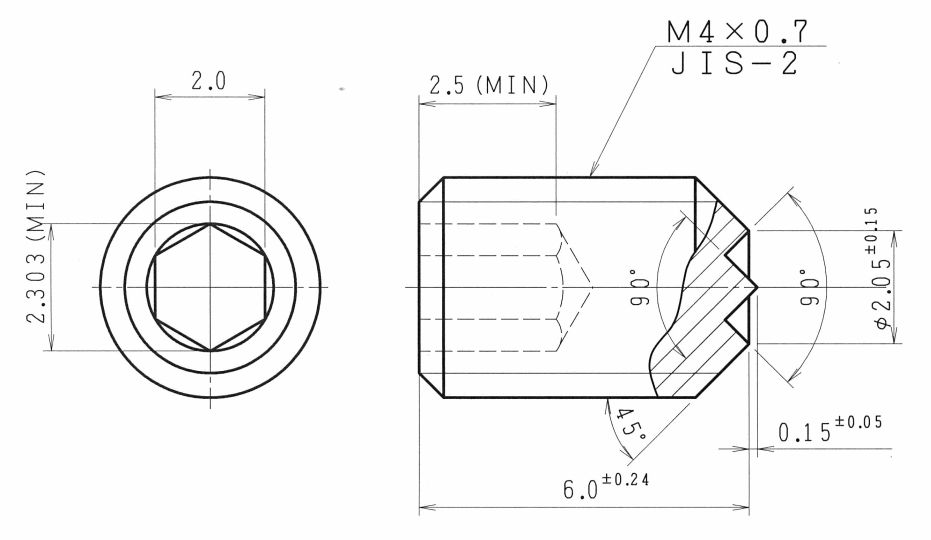

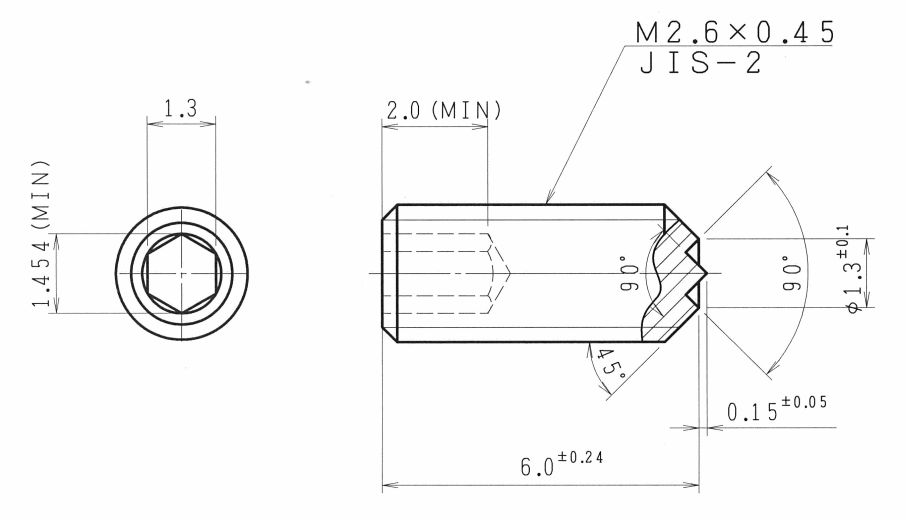

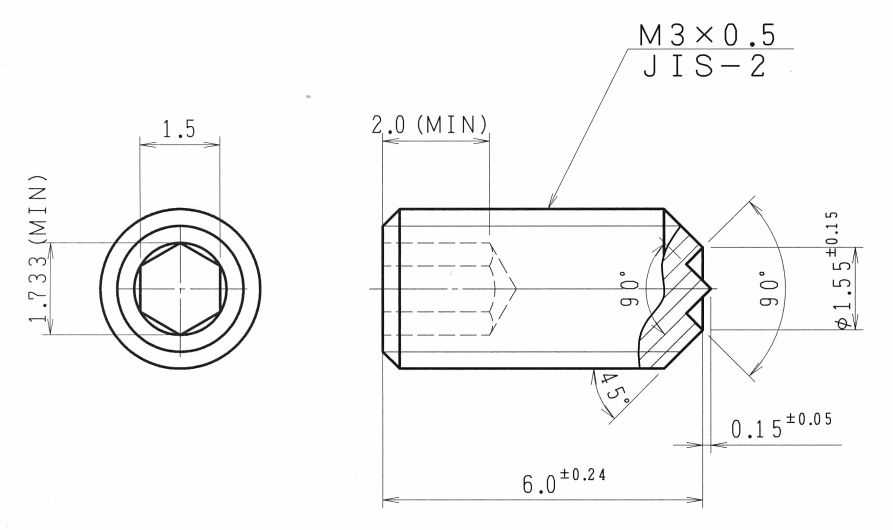

6			M2x6	M2.5x6	M2.6x6	M3x6	M4x6	M5x6

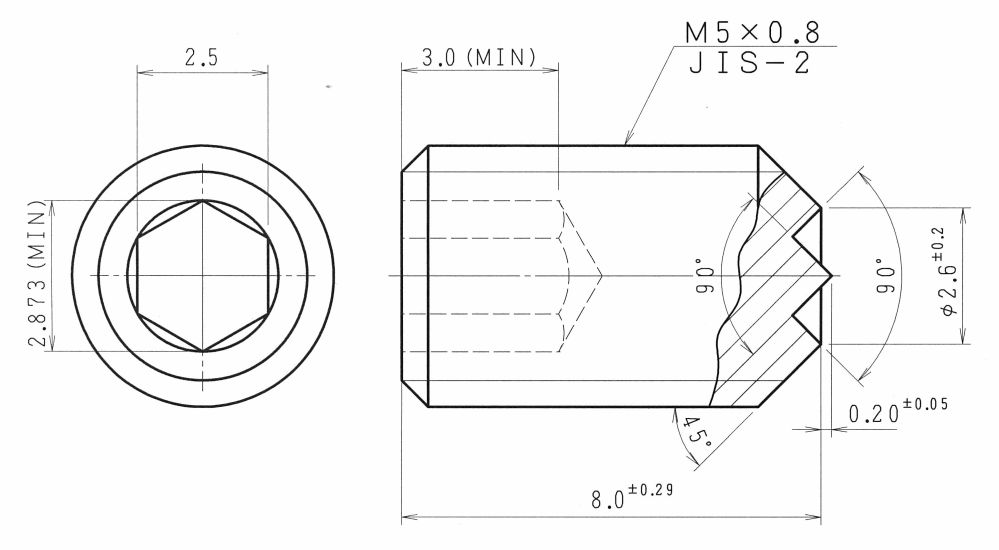

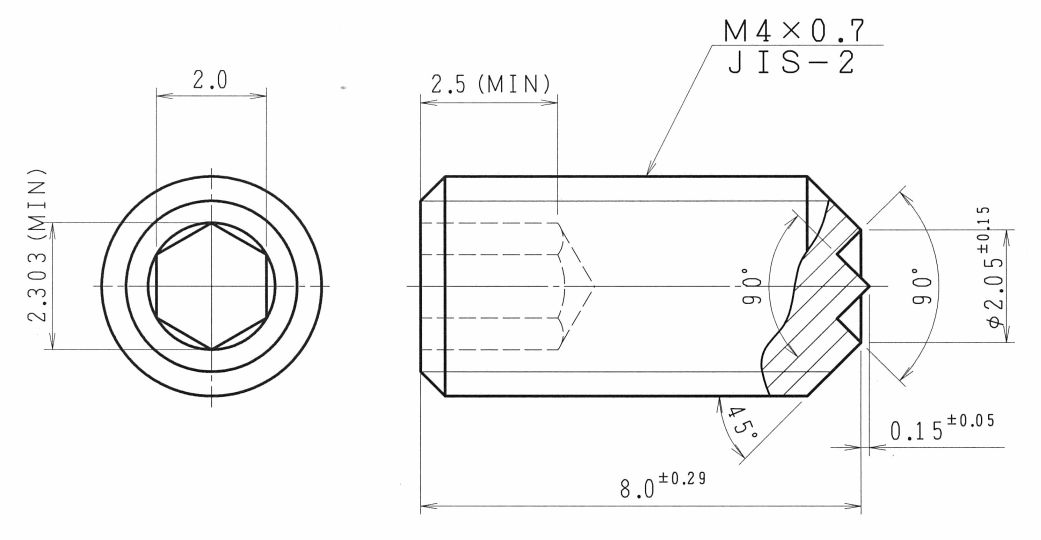

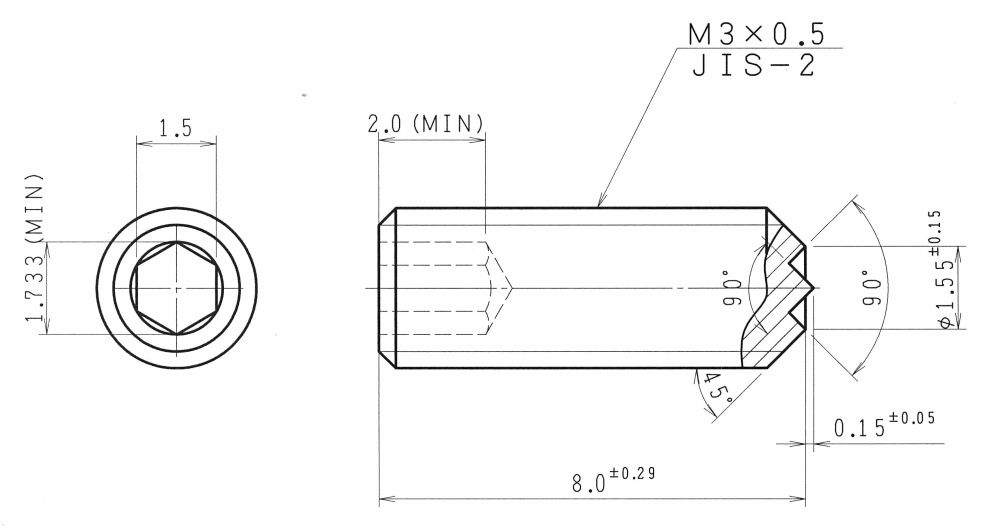

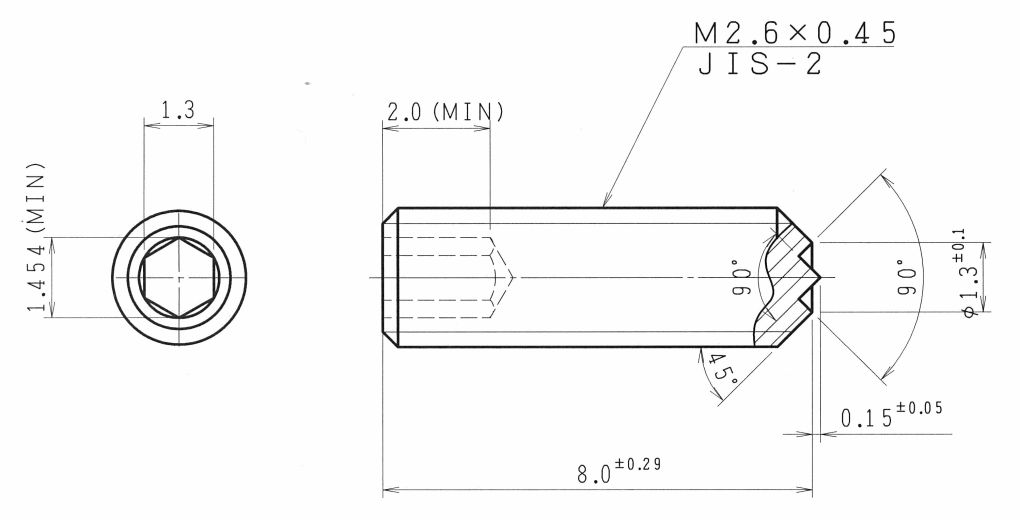

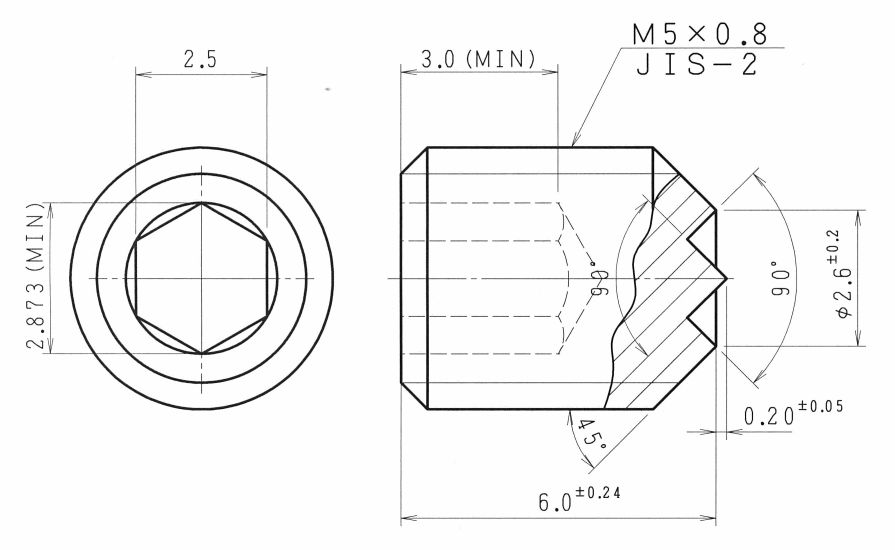

8			M2x8	M2.5x8	M2.6x8	M3x8	M4x8	M5x8

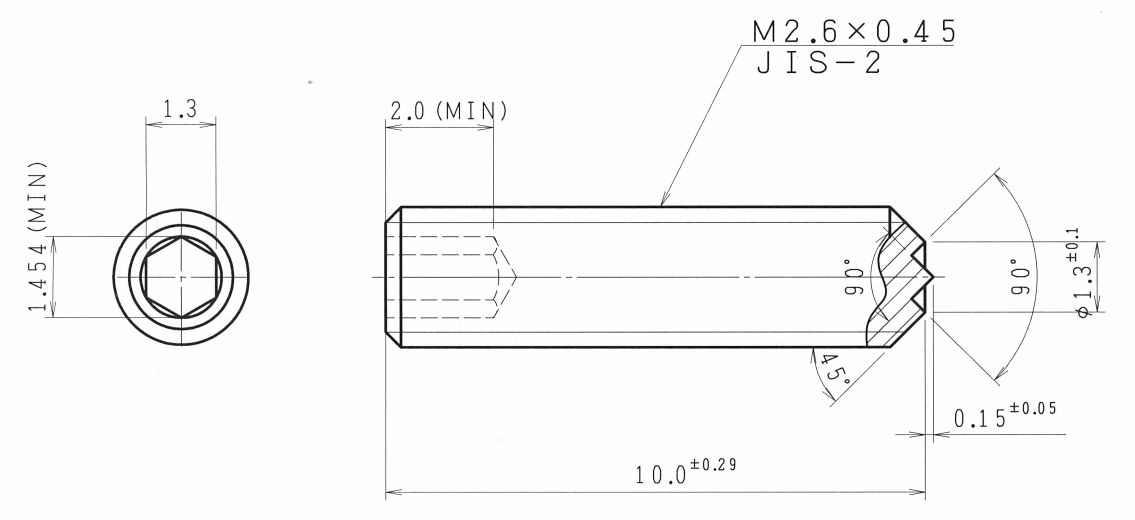

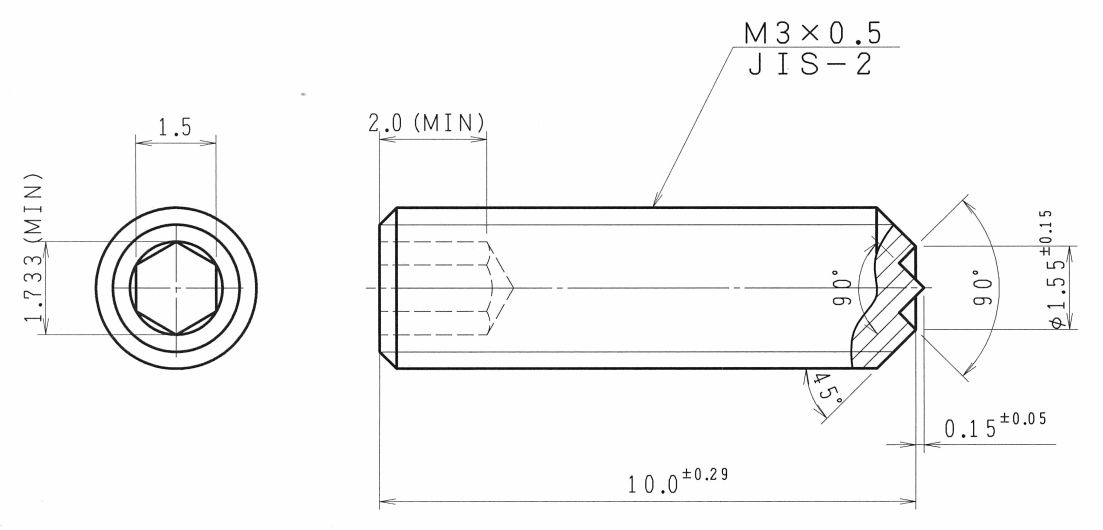

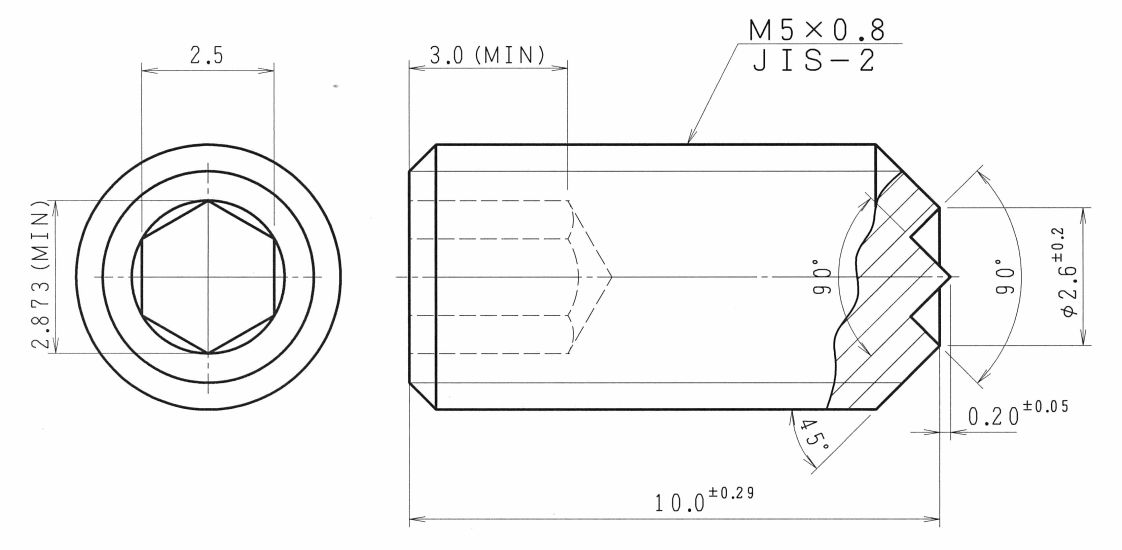

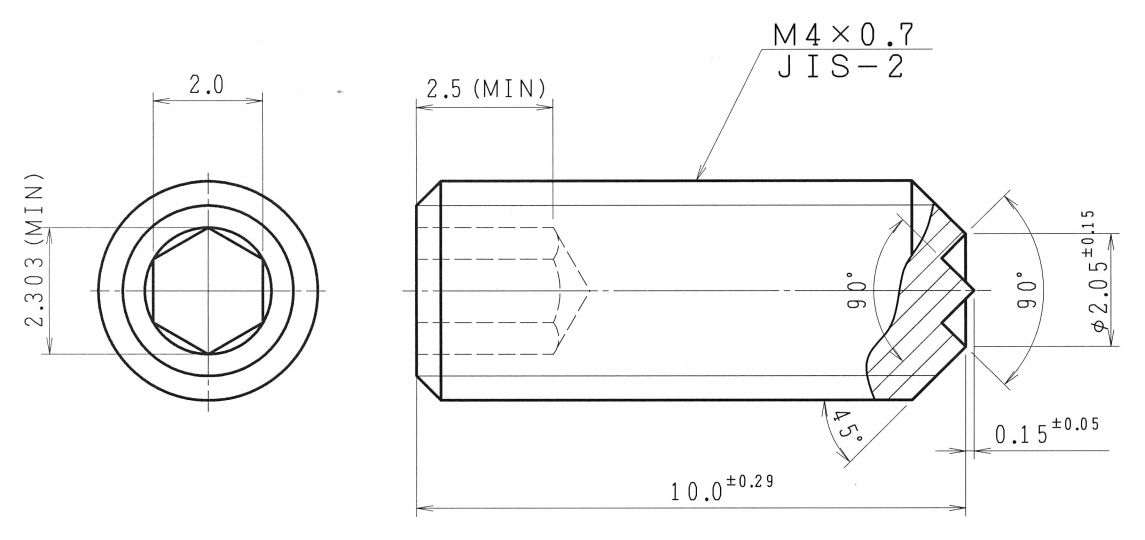

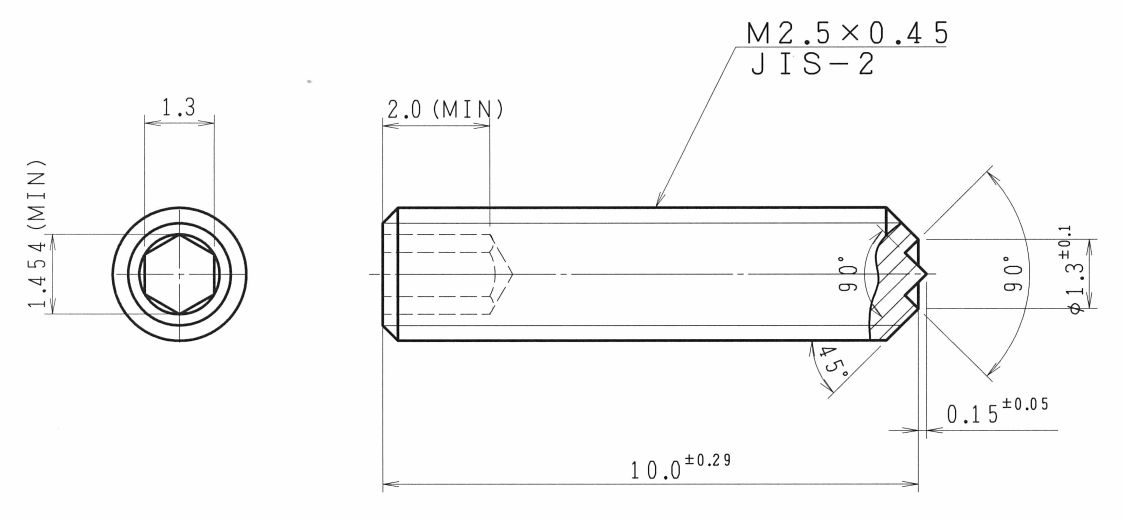

10			M2x10	M2.5x10	M2.6x10	M3x10	M4x10	M5x10

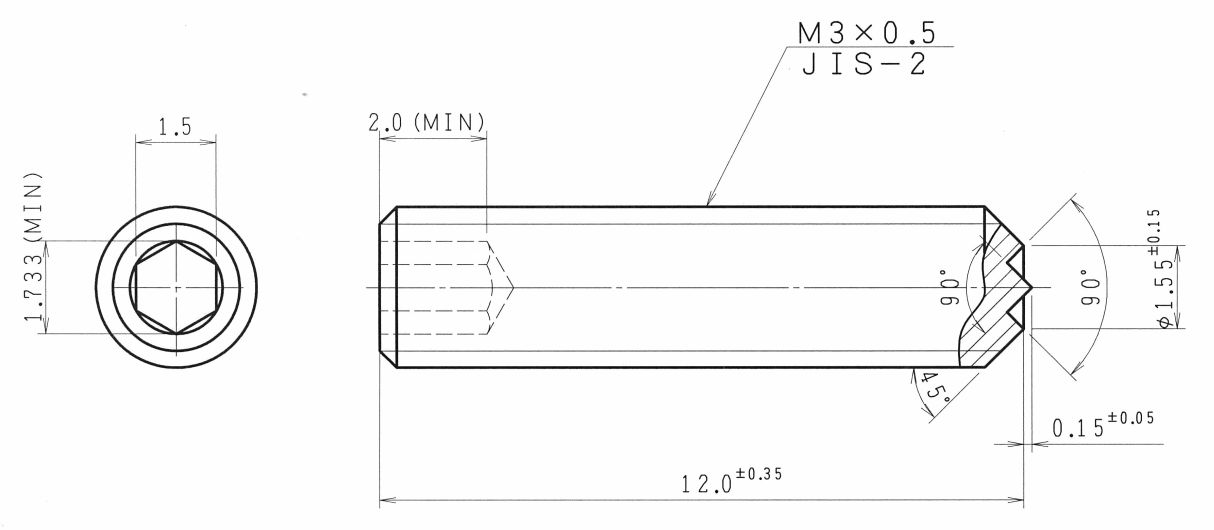

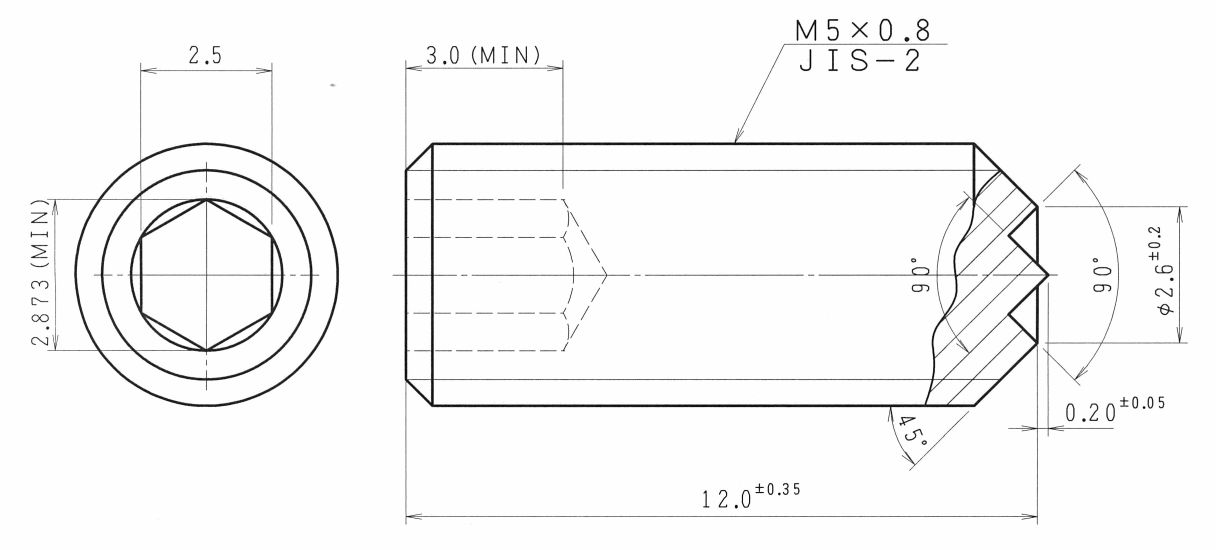

12						M3x12	M4x12	M5x12

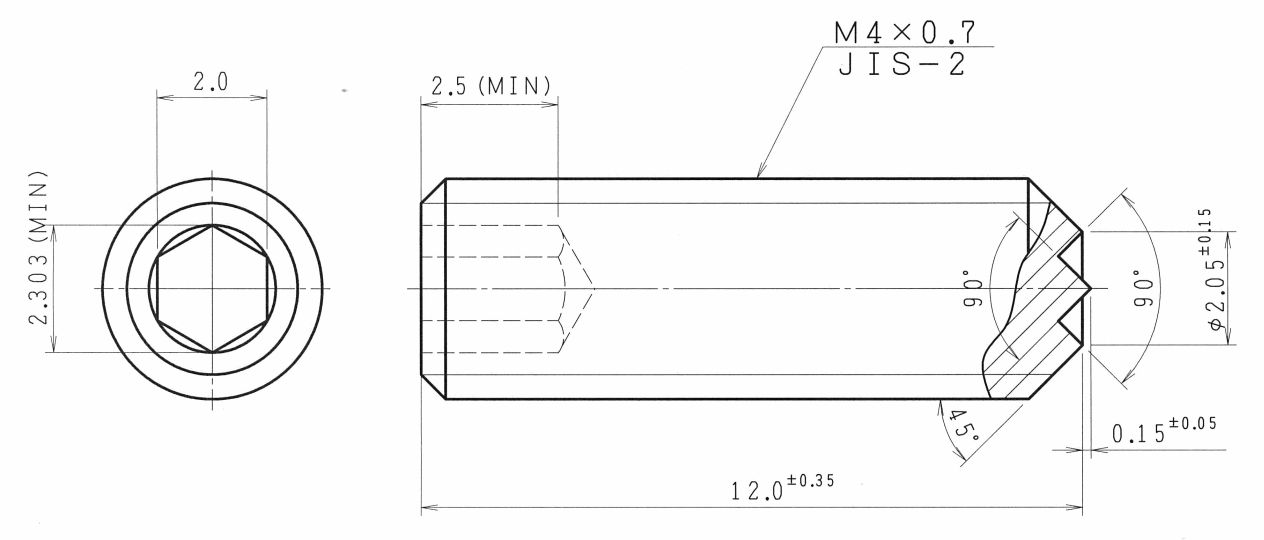

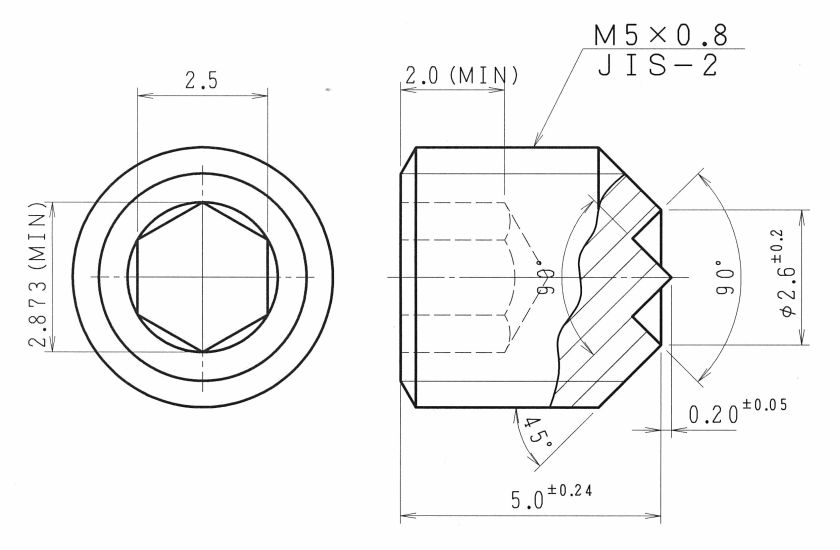

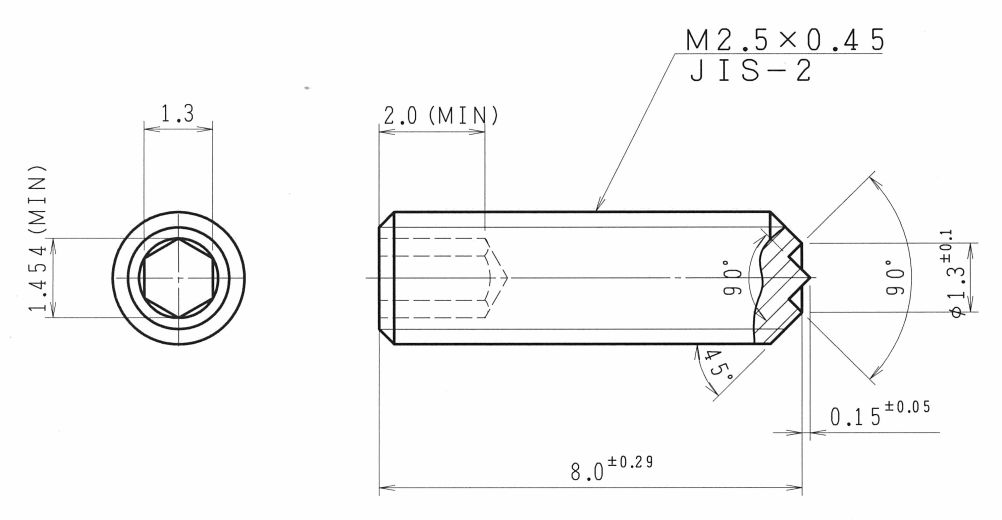

Explaining size M2x2.5 in the table, M2 is the nominal diameter and x2.5 is 2.5mm in overall length. You click a cell of size, a drawing of detailed dimensions is displayed. Please confirm the screw pitch, the tolerance of overall length, etc. in detailed drawing. Click each Nominal diameter to display a list of "tip shapes" and "overall lengths" by its nominal diameter. Click each length to display a list of "tip shapes" and "nominal diameters" by its overall length.
MOQ/SPQ ; 1,000/1,000 pcs MOQ(Minimam Order Quantity) SPQ(Standard Packing Quantity)

Generally, small diameter of the hexagon socket set screws, if it is tightened strongly in the hexagonal bar spanner, hexagonal hole is cracked. But our hexagon socket set screws is using the Ni-Cr-Mo Steel (SNCM240) to the material. And furthermore, the precision of the hexagonal hole is good. In addition, the hardness by the heat treatment is high (HRC50 - 53), there is also toughness.

broken test Therefore, the hexagonal hole is not broken even if you tighten it until you can wrench off a hexagonal bar spanner. At that time, when you move the magnet to the hexagonal hole, because it does not have a hexagonal hole deformed, broken hexagonal bar spanner is attracted to the magnet, it will be drawn from the hexagonal hole.

Our hexagon socket set screw dries surface rust prevention oil with a vacuum hot-air drier after black oxide finish (surface treatment). Therefore, the hand of the assembling worker does not get oil at the time of work. In addition, this setscrews is easy to use in automated assembly, and it is hard to rust.
