We specialize in small hexagon set screws.

Hexagon set screw's nominal diameters are M1.6, M1.7, M2, M2.5, M2.6, M3, M4 and M5. Hexagon set screw's overall lengths are 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm and 12mm. Hexagon set screw's tip shapes are cup point, flat point, cone point, cup & cone point, knurled cup point.

SAIDA Manufacturing Co. Ltd.
Akiruno-city Tokyo JAPAN

Return to the previous place

Overall length 6mm hexagon socket set screws sizes chart Nominal diameter : M2, M2.5, M2.6, M3, M4, M5 Material (Hardness) : Ni-Cr-Mo Steel (HRC50~53) Overall length 6mm slotted set screws click here.
					4mm Length sizes chart, click here
					5mm Length sizes chart, click here
					6mm Length sizes chart
					8mm Length sizes chart, click here
					10mm Length sizes chart, click here
Tip Shape		Cup Point	Flat Point	Cone Point	CC Point	Knurled Cup
Nominal diameter	length (mm)	Cup Point	Flat Point	Cone Point	CC Point	Knurled Cup
M2	6	M2x6	M2x6	M2x6	M2x6
M2.5		M2.5x6	M2.5x6	M2.5x6	M2.5x6
M2.6		M2.6x6	M2.6x6	M2.6x6	M2.6x6
M3		M3x6	M3x6	M3x6	M3x6	M3x6
M4		M4x6	M4x6	M4x6	M4x6	M4x6
M5		M5x6	M5x6	M5x6	M5x6	M5x6

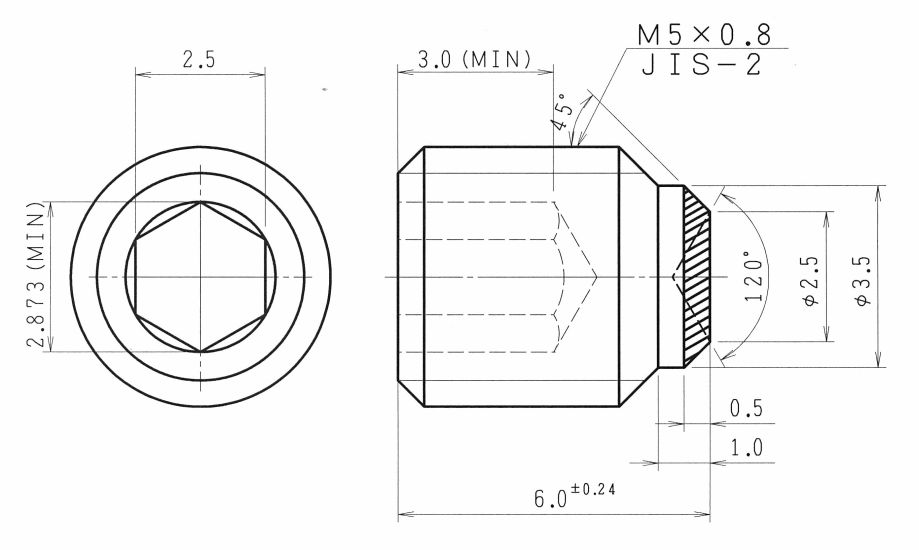

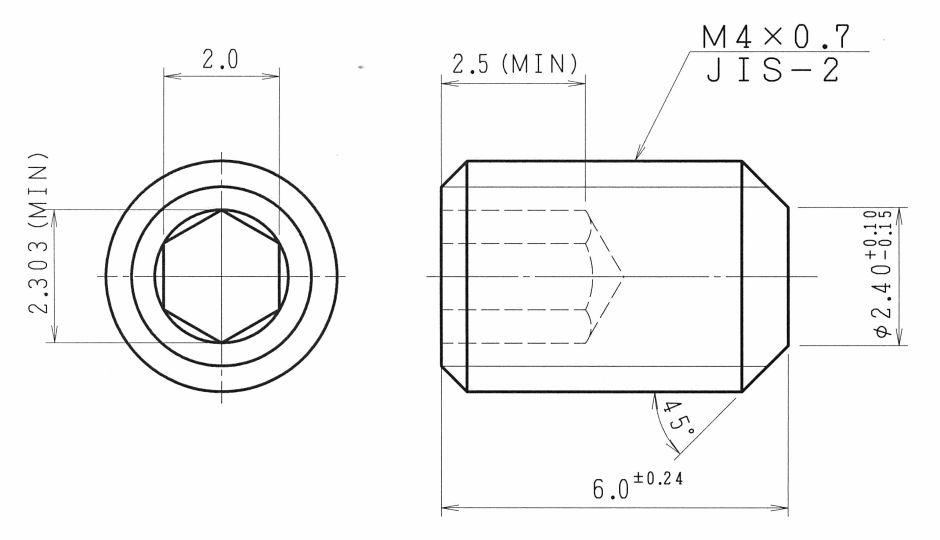

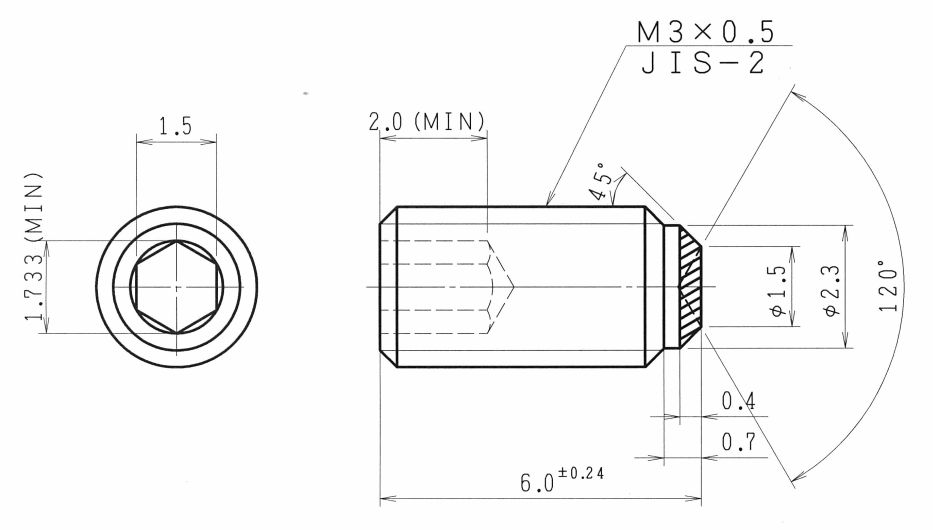

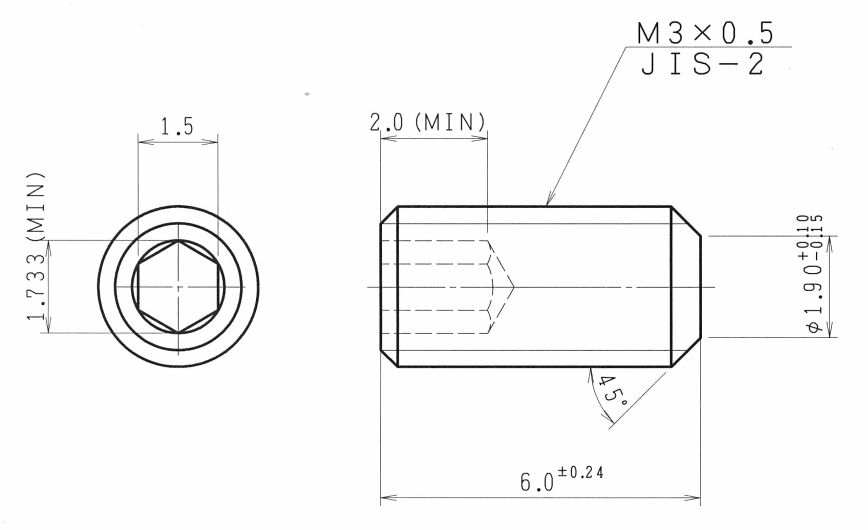

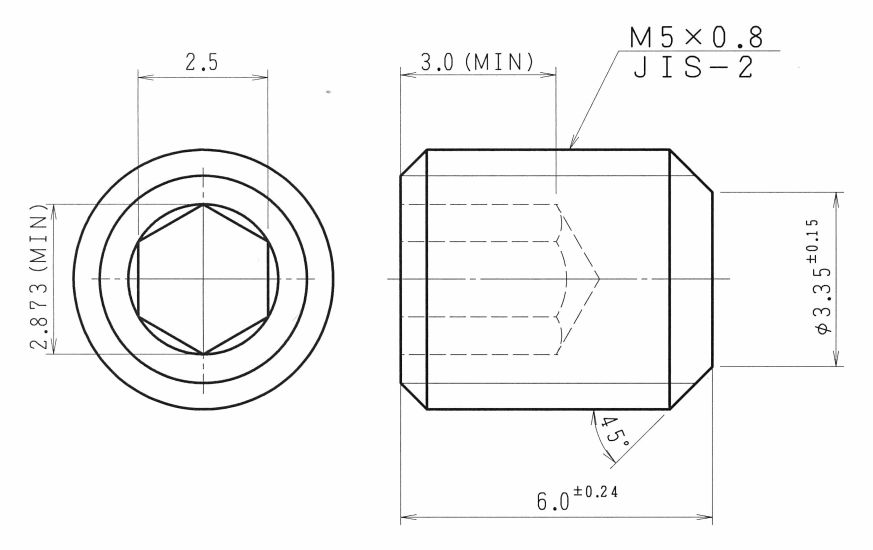

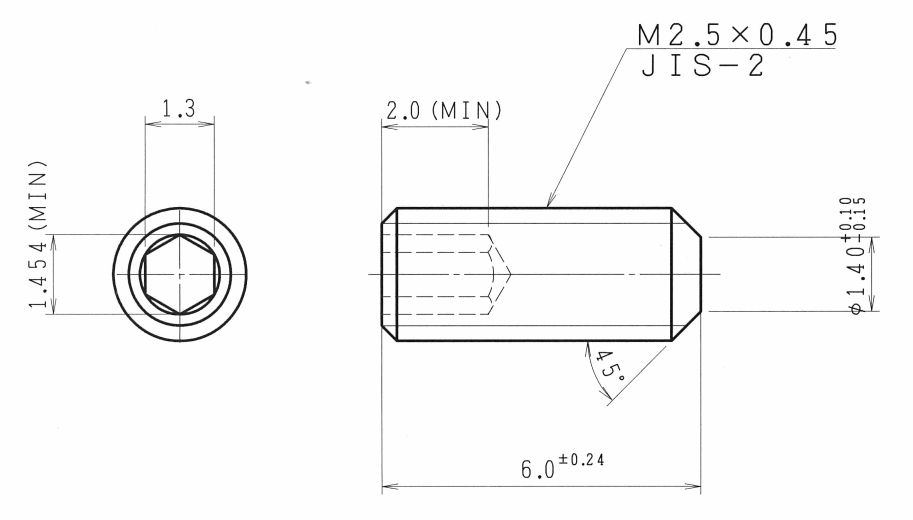

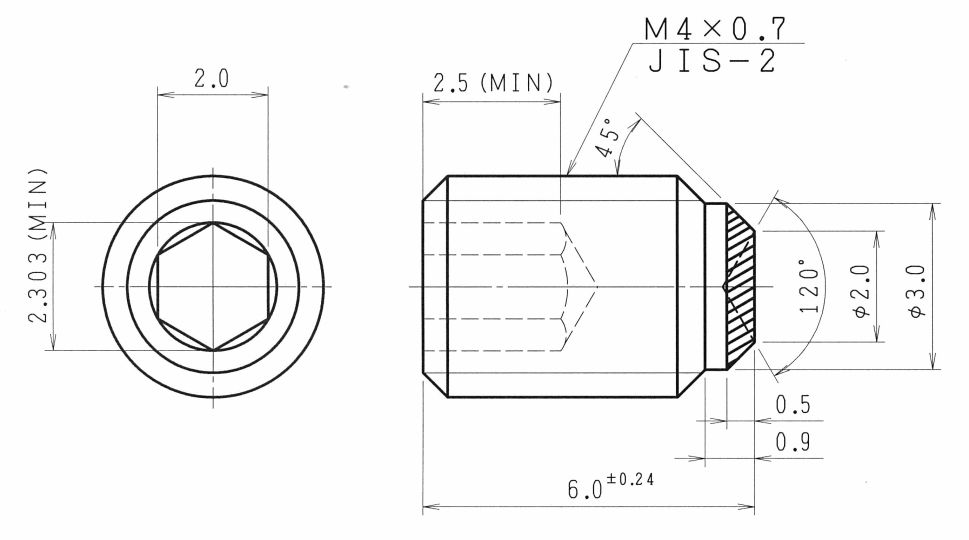

For example, M2x6 size is the nominal diameter M2, length 6 mm. You click a cell of size, a drawing of detailed dimensions is displayed. Please confirm the screw pitch, the tolerance of overall length, etc. in detailed drawing. Click each Tip shape to display a list of "nominal diameters" and "overall lengths" by its tip shape. Click each Nominal diameter to display a list of "tip shapes" and "overall lengths" by its nominal diameter.
MOQ/SPQ ; 1,000/1,000 pcs MOQ(Minimam Order Quantity) SPQ(Standard Packing Quantity)

Generally, small diameter of the hexagon socket cup point set screws, if it is tightened strongly in the hexagonal bar spanner, hexagonal hole is cracked. But our hexagon socket cup point set screws is using the Ni-Cr-Mo Steel (SNCM240) to the material. And furthermore, the precision of the hexagonal hole is good. In addition, the hardness by the heat treatment is high (HRC50 - 53), there is also toughness.

broken test Therefore, the hexagonal hole is not broken even if you tighten it until you can wrench off a hexagonal bar spanner. At that time, when you move the magnet to the hexagonal hole, because it does not have a hexagonal hole deformed, broken hexagonal bar spanner is attracted to the magnet, it will be drawn from the hexagonal hole.

Our hexagon socket cup point set screw dries surface rust prevention oil with a vacuum hot-air drier after black oxide finish (surface treatment). Therefore, the hand of the assembling worker does not get oil at the time of work. In addition, this cup point set screws is easy to use in automated assembly, and it is hard to rust.
