M2.6 Hexagon socket set screws sizes chart
Nominal diameter : M2.6 x P0.45
Material (Hardness) : Ni-Cr-Mo Steel (HRC50~53)
M2.6 set screrws is not included in slotted set screws.
 M2 sizes chart, click here
 M2.5 sizes chart, click here
 M2.6 sizes chart
 M3 sizes chart, click here
 M4 sizes chart, click here
Tip Shape  Cup Point
Cup Point Set Screw
Flat Point
Flat Point Set Screw
Cone Point
Cone Point Set Screw
CC Point
CCPoint Point Set Screw
Knurled Cup
Knurled Cup Point Set Screw
Nominal diameter length (mm)
M2.6 2.5 M2.6x2.5 M2.6x2.5 M2.6x2.5
3 M2.6x3 M2.6x3 M2.6x3 (120) M2.6x3
4 M2.6x4 M2.6x4 M2.6x4 M2.6x4
5 M2.6x5 M2.6x5 M2.6x5 M2.6x5
6 M2.6x6 M2.6x6 M2.6x6 M2.6x6
8 M2.6x8 M2.6x8 M2.6x8 M2.6x8
10 M2.6x10 M2.6x10 M2.6x10 M2.6x10

  • For example, M2.6x2.5 size is the nominal diameter M2.6, length 2.5 mm.

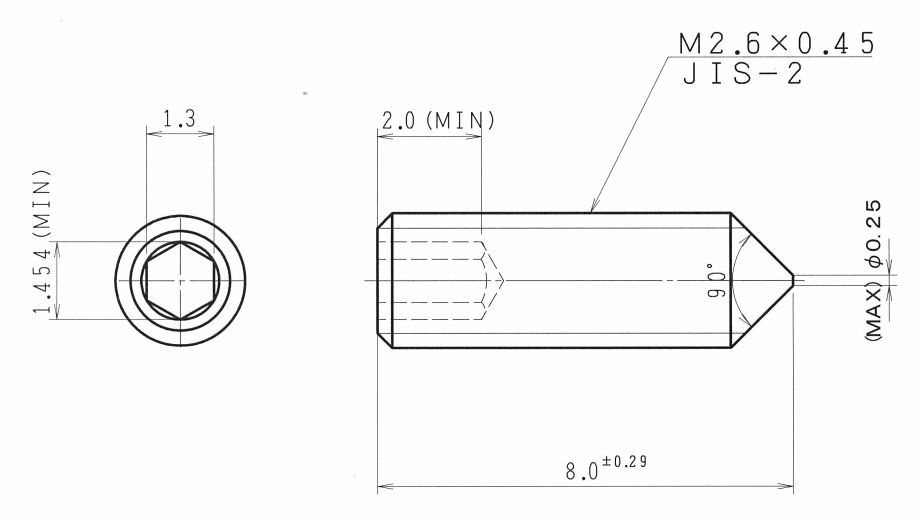

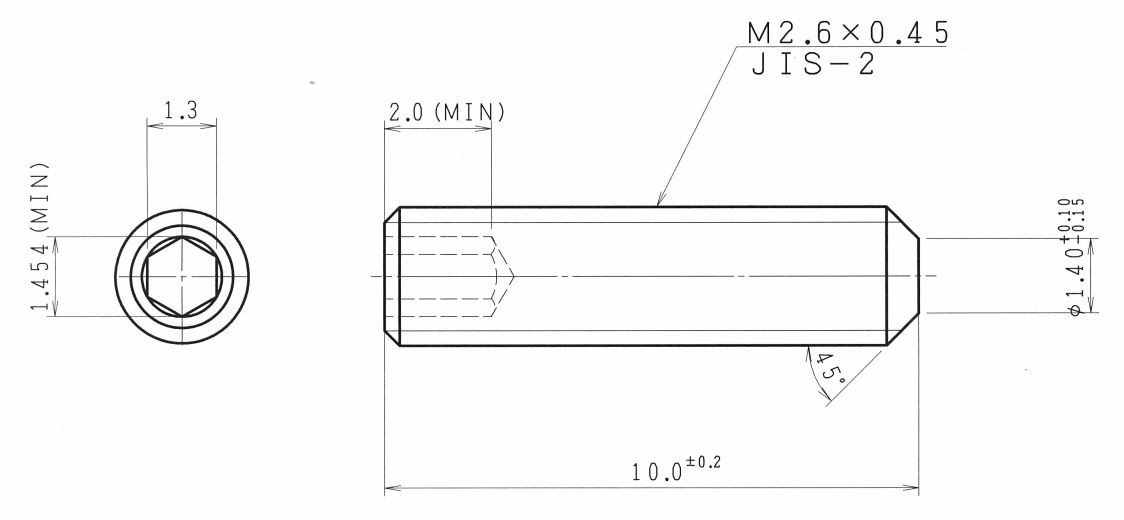

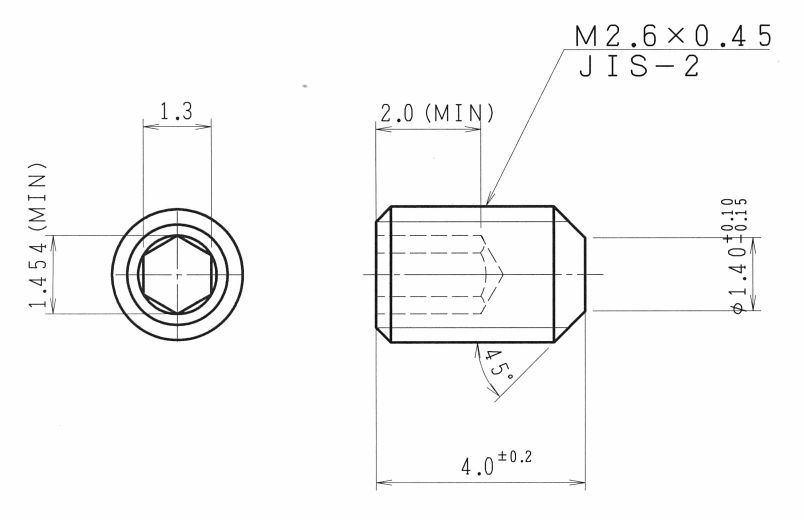

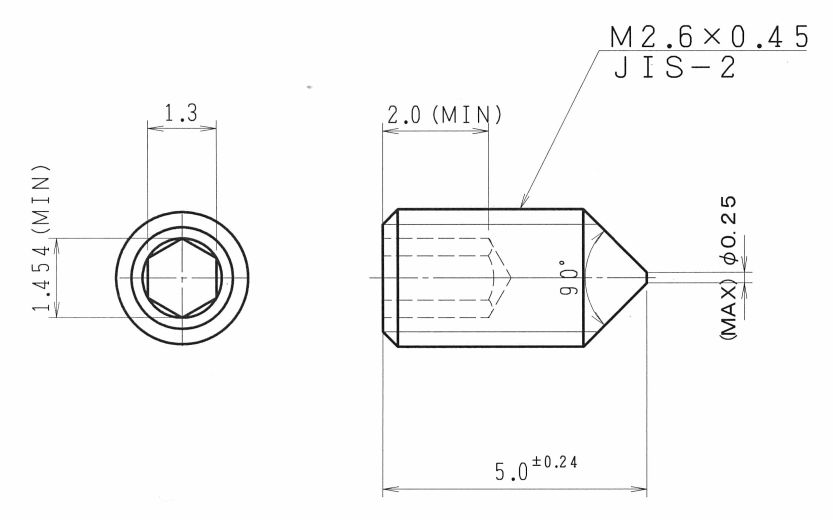

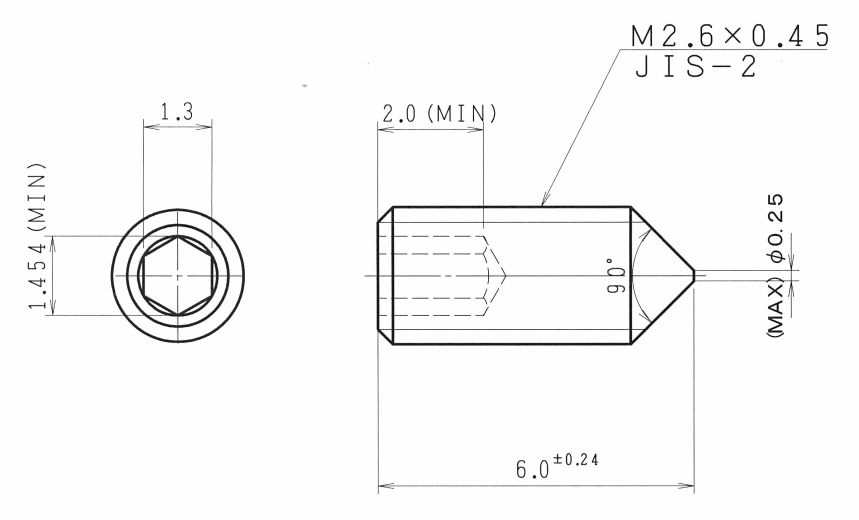

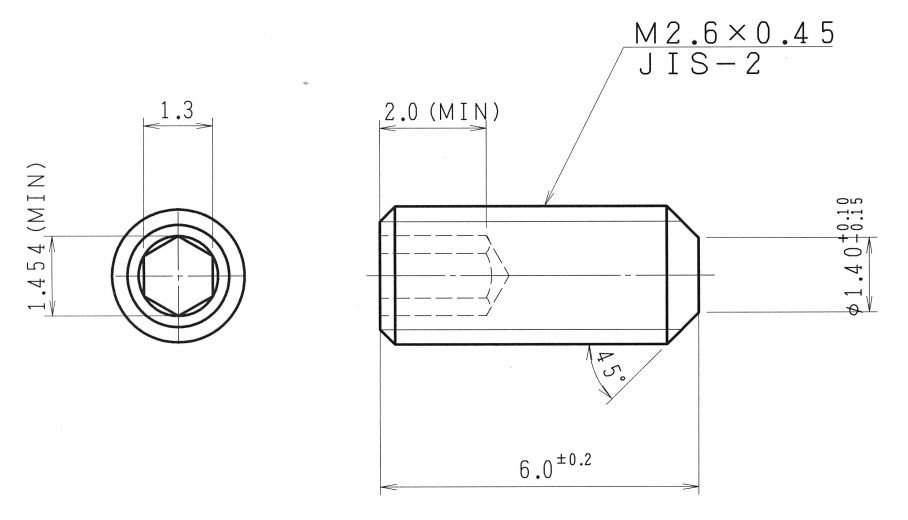

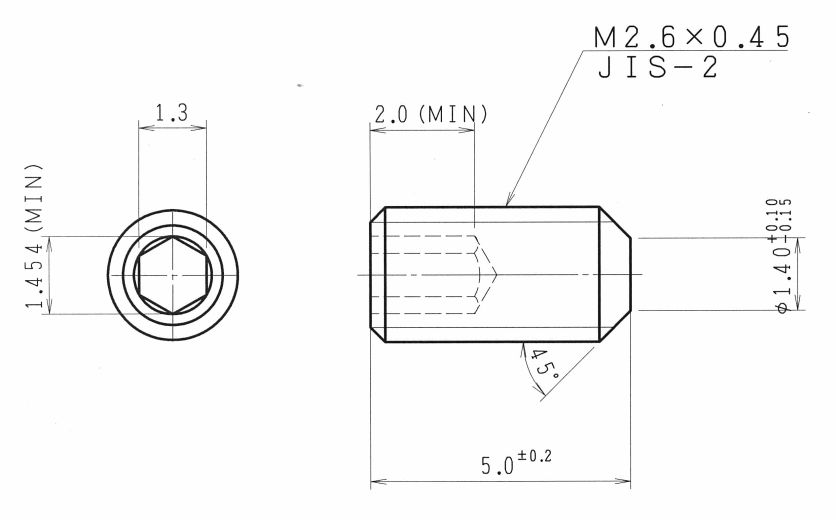

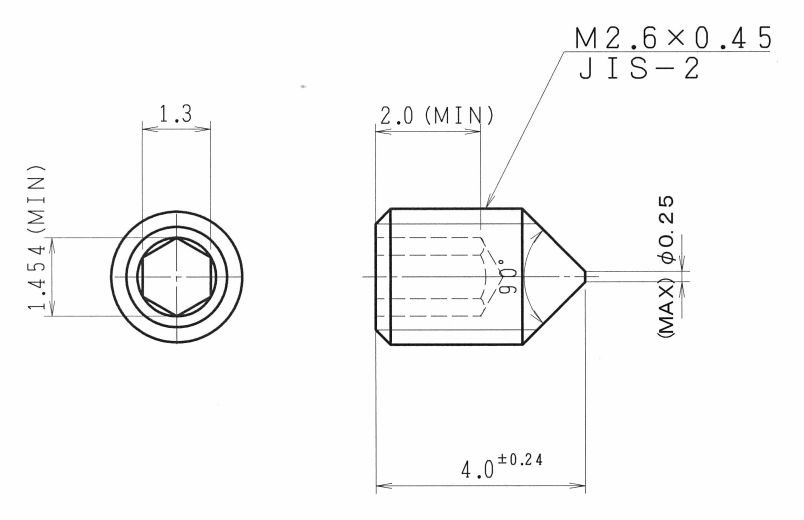

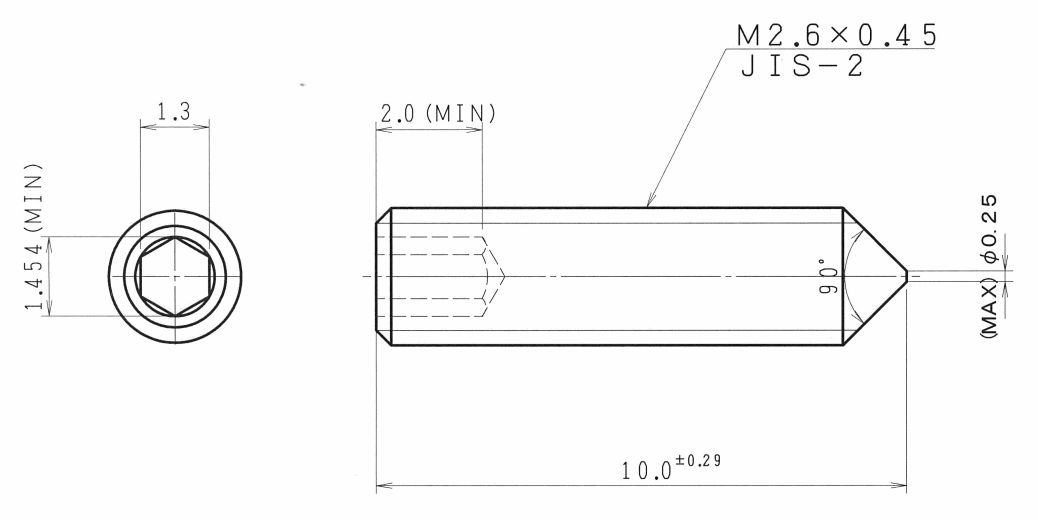

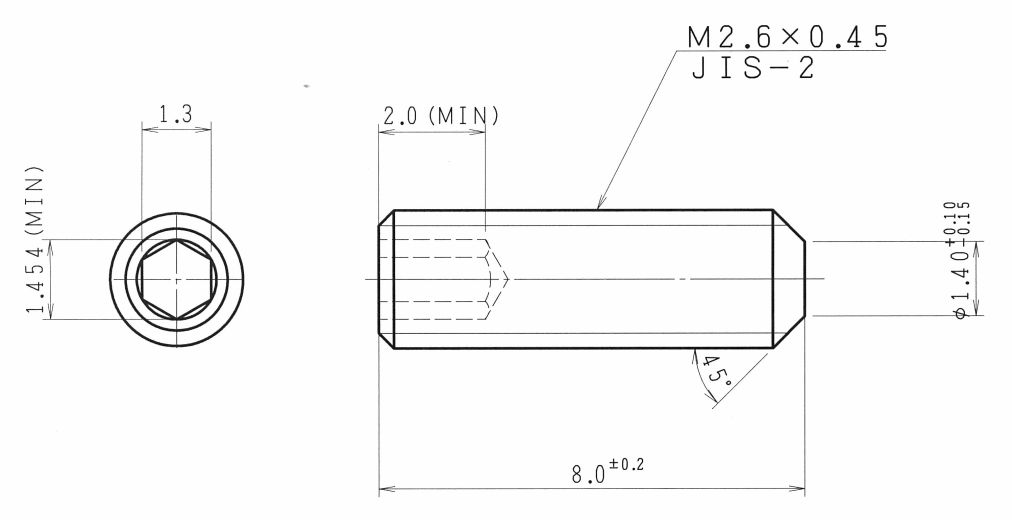

  • You click a cell of size, a drawing of detailed dimensions is displayed.
    Please confirm the screw pitch, the tolerance of overall length, etc. in detailed drawing.
  • Click each Tip shape to display a list of "nominal diameters" and "overall lengths" by its tip shape.
  • Click each length to display a list of "tip shapes" and "nominal diameters" by its overall length.
MOQ/SPQ ; 1,000/1,000 pcs
MOQ(Minimam Order Quantity)  SPQ(Standard Packing Quantity)

Generally, small diameter of the hexagon socket cup point set screws, if it is tightened strongly in the hexagonal bar spanner, hexagonal hole is cracked. But our hexagon socket cup point set screws is using the Ni-Cr-Mo Steel (SNCM240) to the material. And furthermore, the precision of the hexagonal hole is good. In addition, the hardness by the heat treatment is high (HRC50 - 53), there is also toughness.

broken test Therefore, the hexagonal hole is not broken even if you tighten it until you can wrench off a hexagonal bar spanner. At that time, when you move the magnet to the hexagonal hole, because it does not have a hexagonal hole deformed, broken hexagonal bar spanner is attracted to the magnet, it will be drawn from the hexagonal hole.

Our hexagon socket cup point set screw dries surface rust prevention oil with a vacuum hot-air drier after black oxide finish (surface treatment). Therefore, the hand of the assembling worker does not get oil at the time of work. In addition, this cup point set screws is easy to use in automated assembly, and it is hard to rust.
