 Cone Point slotted set screws sizes chart  (metric screw)
Material : Stainless steel
Free sample click here. 		Cone Point slotted set screws SUS 90
Nominal Dia.
 M1

 M1.2

 M1.4

 M1.6

 M1.7

 M2

 M2.5

 M3

length (mm)
1 Cone Point Slotted Set Screws in JIS standards click here
1.1
1.2 M1x1.2 M1.2x1.2
1.3
1.4
1.5 M1x1.5 M1.2x1.5 M1.4x1.5
1.6   There are more types of steel set screws than stainless steel set screws.
1.7
1.8 M1x1.8 M1.2x1.8 M1.4x1.8 M1.6x1.8 M1.7x1.8
2 M1x2 M1.2x2 M1.4x2 M1.6x2 M1.7x2 M2x2
2.5   M1.4x2.5 M1.6x2.5 M1.7x2.5 M2x2.5 M2.5x2.5
3   M1.6x3 M1.7x3 M2x3 M2.5x3 M3x3
3.5   M2x3.5 M2.5x3.5 M3x3.5
4   M2x4 M2.5x4 M3x4
5   M2.5x5 M3x5
6   M3x6

  • Explaining size M2x2.5 in the table, M2 is the nominal diameter and x2.5 is 2.5mm in overall length.

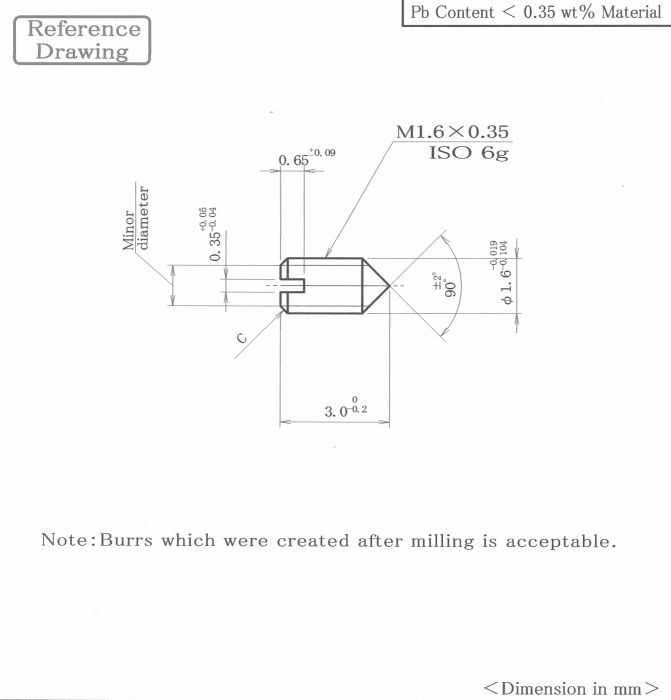

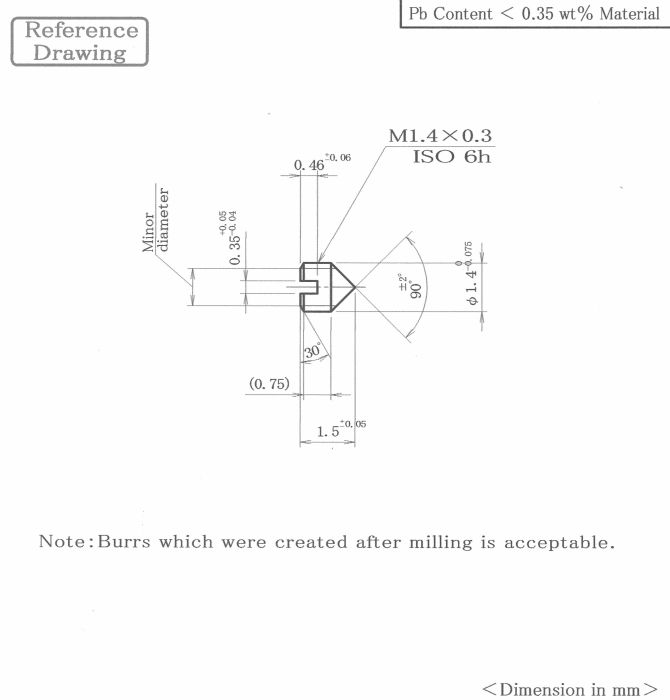

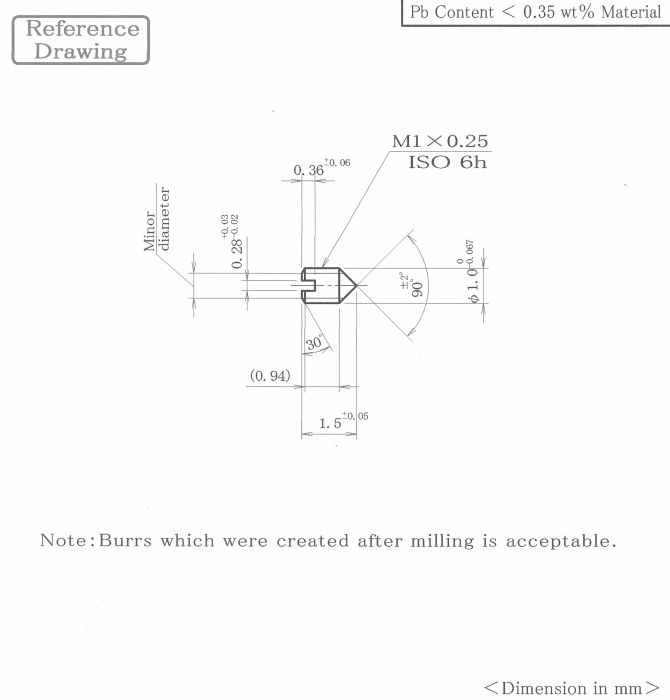

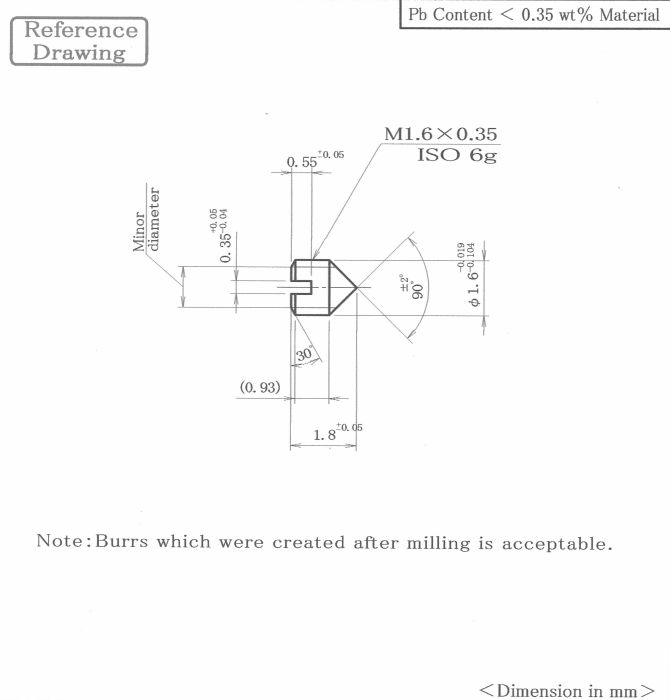

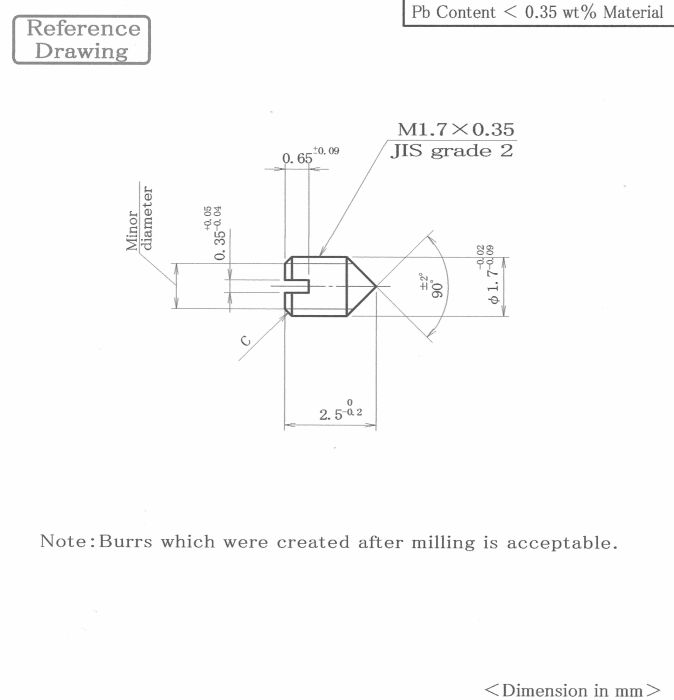

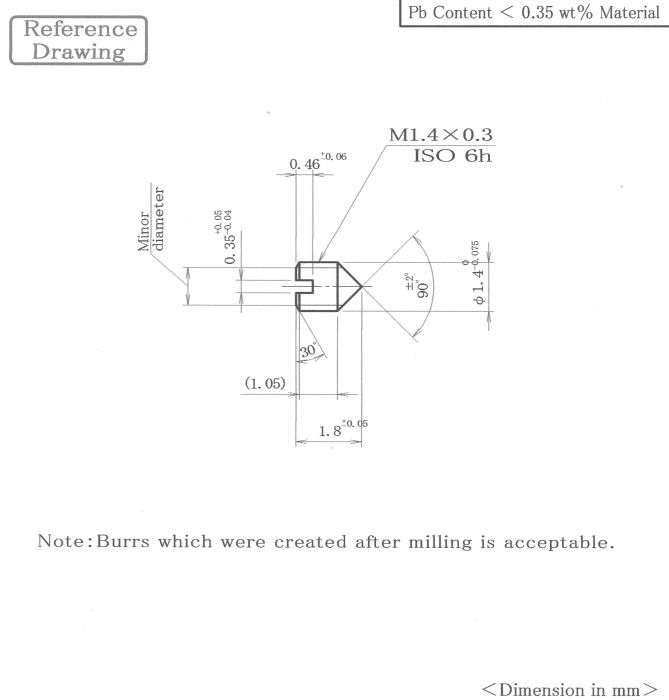

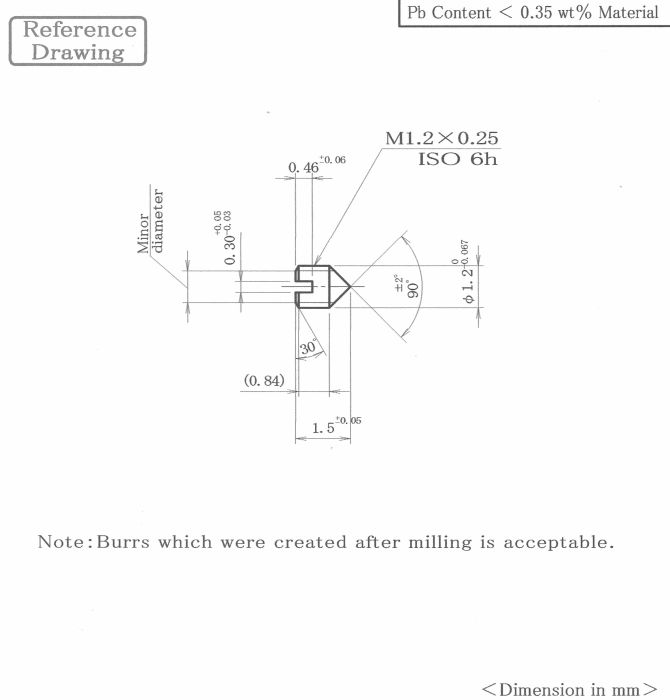

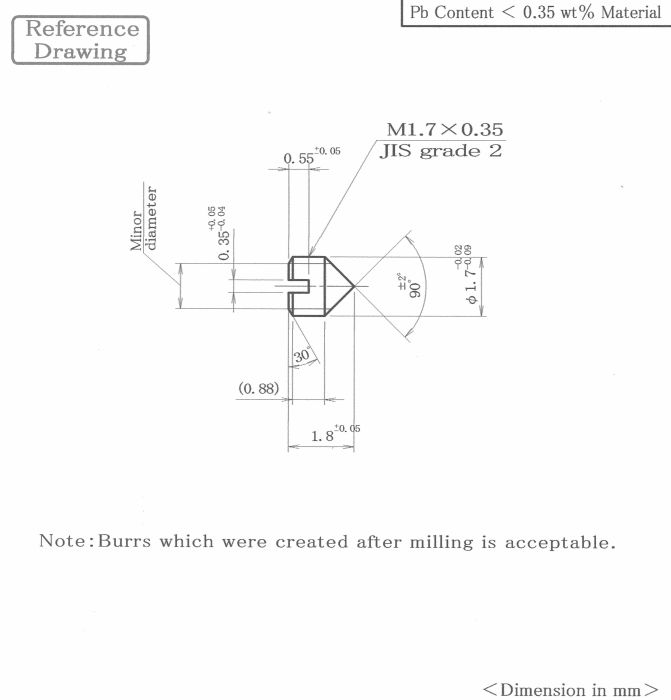

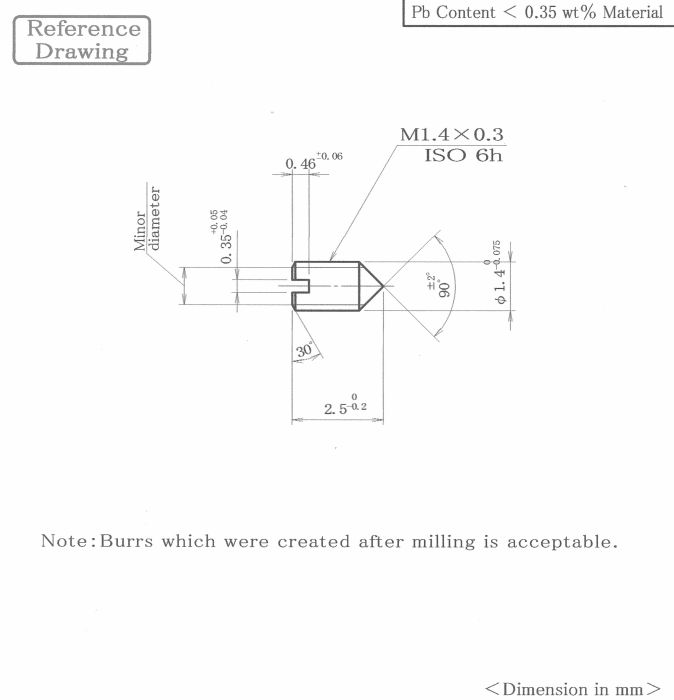

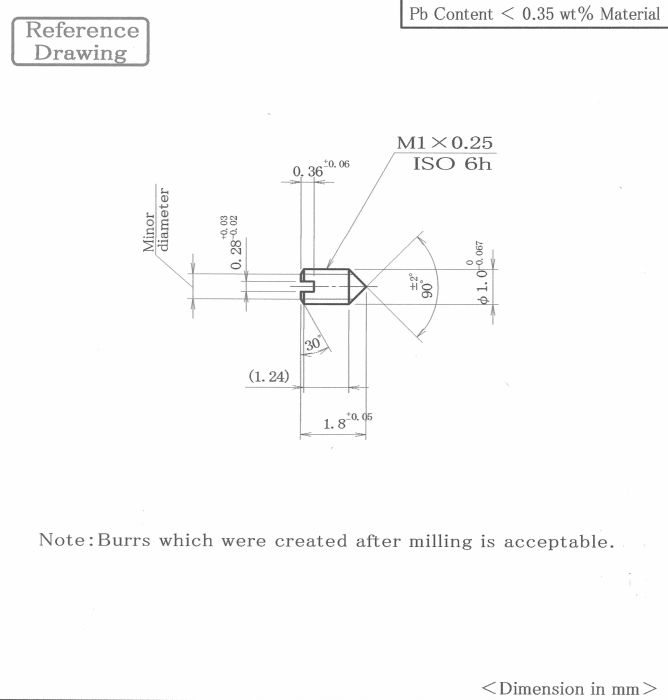

  • You click a cell of size, a drawing of detailed dimensions is displayed.
    Please confirm the screw pitch, the tolerance of overall length, etc. in detailed drawing.
  • Click each Nominal diameter to display a list of "tip shapes" and "overall lengths" by its nominal diameter.
  • Click each length to display a list of "tip shapes" and "nominal diameters" by its overall length.



We are manufacturing the cone point set screws in the cutting work. Therefore, the flatness accuracy of the cone point set screws is less than 0.01mm. In addition, the squareness of the threaded portion and the cone portion is less than 0.01mm. And, the variations of the flat diameter is less than 0.02mm.

Generally, in a cam-type automatic lathe, the screw thread will be manufactured by a cutting die. When manufactured in a cutting die, the breaking of "the screw thread triangular top part" sometimes occurs.
As it is, because we are manufacturing the screw thread by the byte chasing processing in the same way as a NC lathe, the breaking of "the screw thread triangular top part" does not occurs.

The material of the slotted cone point set screws in this table are stainless steel (JIS SUS303 equivalent). We have the slotted cone point set screws made of free-cuttong steel (SUM24L equivalent) in our standard.

Rotation of the slottedcone point set screws is done in the slotted screwdriver. Rotation of the hexagon socket cone point set screws is done in the hexagonal handle.
In which case the rotation of the small set screws of less than M1.6, the slotted cone point set screws is does not become useless holes than the hexagon socket cone point set screws.

When you tie up a round shaft by the tip of the cone point set screws, it damage on outer diameter surface of the round shaft. For the purpose of not damaging the outer diameter surface of the round shaft, a portion of the round shaft has a flat portion.
But, the position adjustment of the flat portion and set screw, require great care with the time of parts assembly. Insofar as the round shaft has a flat portion, when cone point set screw or cup point set screw is using, will be possible to tie up more firmly.
