Slotted set screw's nominal diameters are M1, M1.2, M1.4, M1.6, M1.7, M2, M2.3, M2.5, and M3. Slotted set screw's overall lengths are 1mm, 1.1mm, 1.2mm, 1.3mm, 1.4mm, 1.5mm, 1.6mm, 1.7mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm, 5mm and 6mm. Slotted set screw's tip shapes are flat point, cone point, oval point.

SAIDA Manufacturing Co. Ltd.
Akiruno-city Tokyo JAPAN

Return to the previous place

M1.7 slotted set screws size chart Nominal diameter x Pitch : M1.7 x 0.35 Free sample click here. M1.7 hexagon socket set screws click here.
					M1.4 size chart in click
					M1.6 size chart in click
					M1.7 size chart
					M2 size chart in click
					M2.3 size chart in click
Material		Free-cutting steel (ASK2600S) with zinc plating (Black and White)			Stainless steel (ASK3000FL)
Tip shape		Flat point	Cone point	Oval point	Flat point	Cone point
Nominal diameter	length (mm)
M1.7	1
	1.1
	1.2			M1.7x1.2
	1.3	M1.7x1.3	M1.7x1.3	M1.7x1.3
	1.4	M1.7x1.4	M1.7x1.4	M1.7x1.4
	1.5	M1.7x1.5	M1.7x1.5	M1.7x1.5	M1.7x1.5
	1.6	M1.7x1.6	M1.7x1.6	M1.7x1.6
	1.7	M1.7x1.7	M1.7x1.7	M1.7x1.7
	1.8	M1.7x1.8	M1.7x1.8	M1.7x1.8	M1.7x1.8	M1.7x1.8
	2	M1.7x2	M1.7x2	M1.7x2	M1.7x2	M1.7x2
	2.5	M1.7x2.5	M1.7x2.5	M1.7x2.5	M1.7x2.5	M1.7x2.5
	3	M1.7x3	M1.7x3	M1.7x3	M1.7x3	M1.7x3
	4	M1.7x4	M1.7x4	M1.7x4
	5		M1.7x5

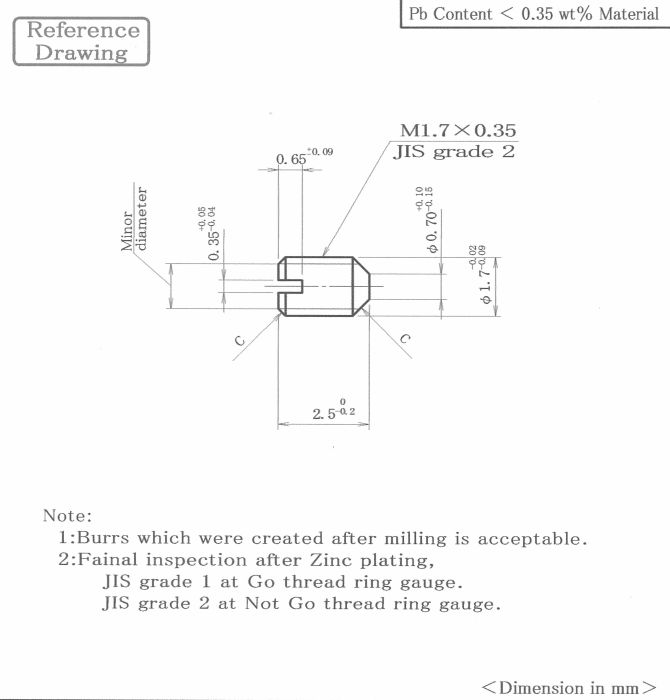

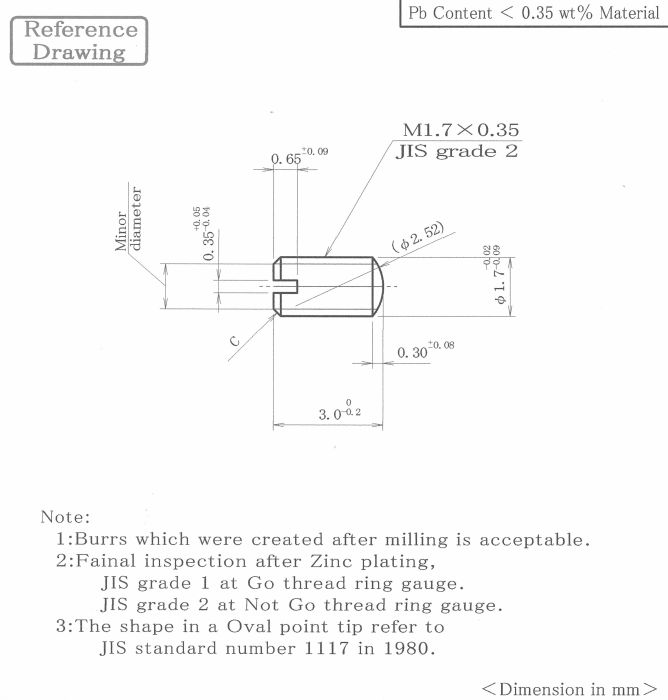

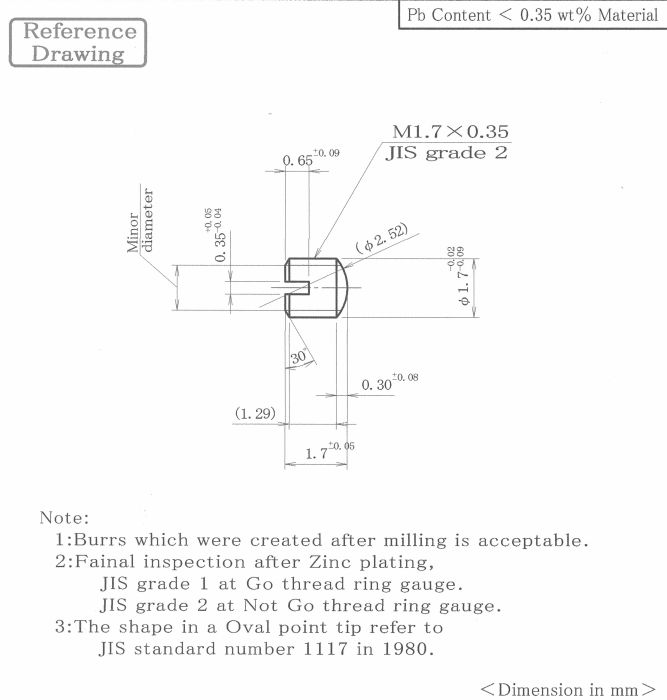

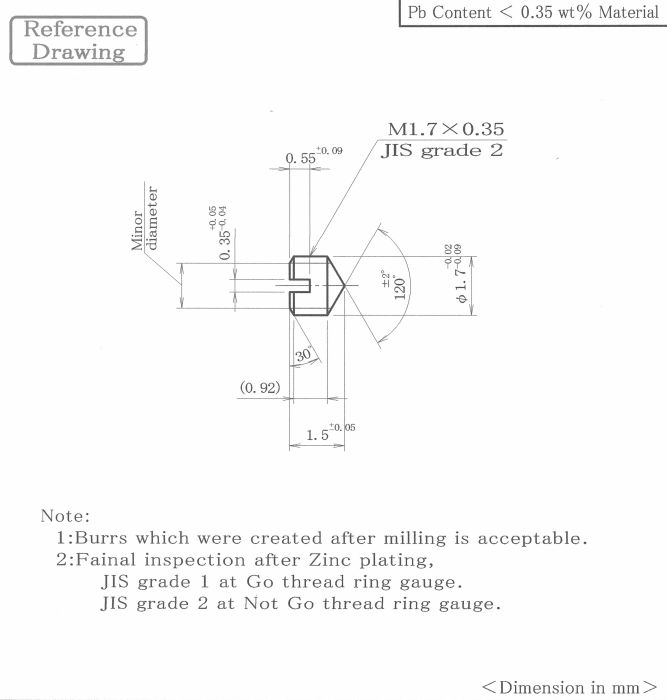

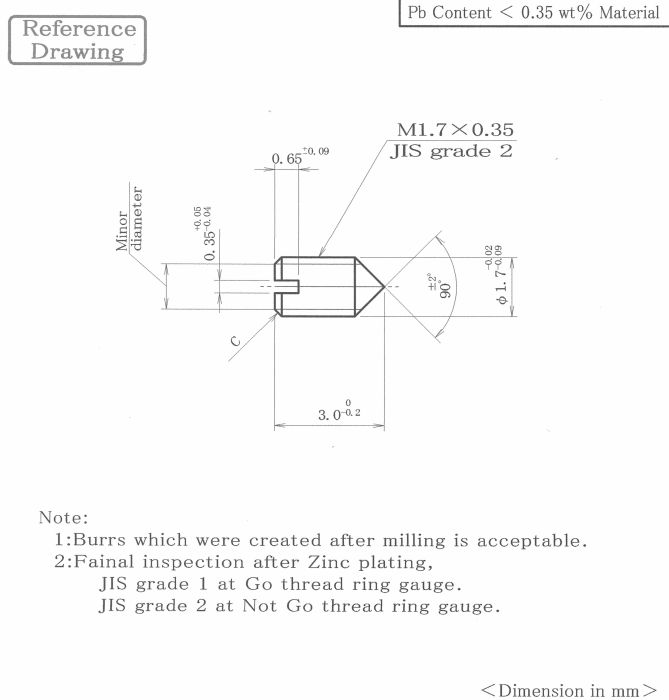

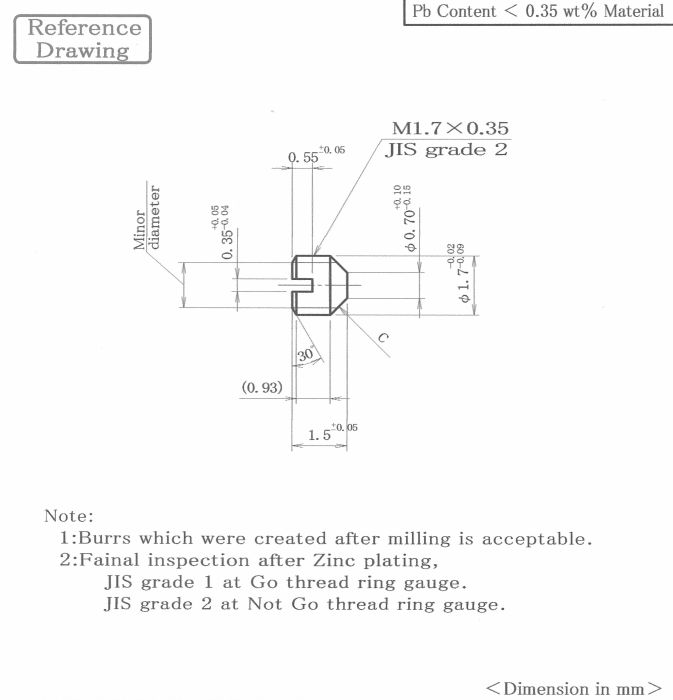

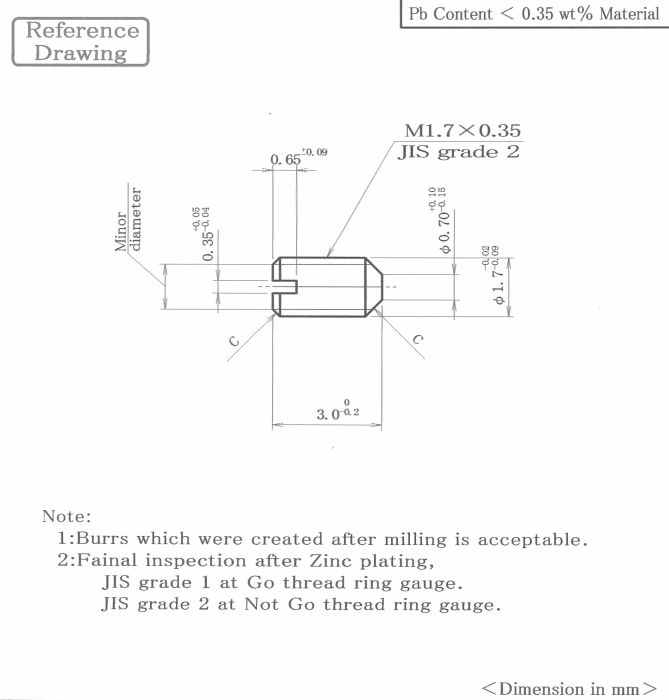

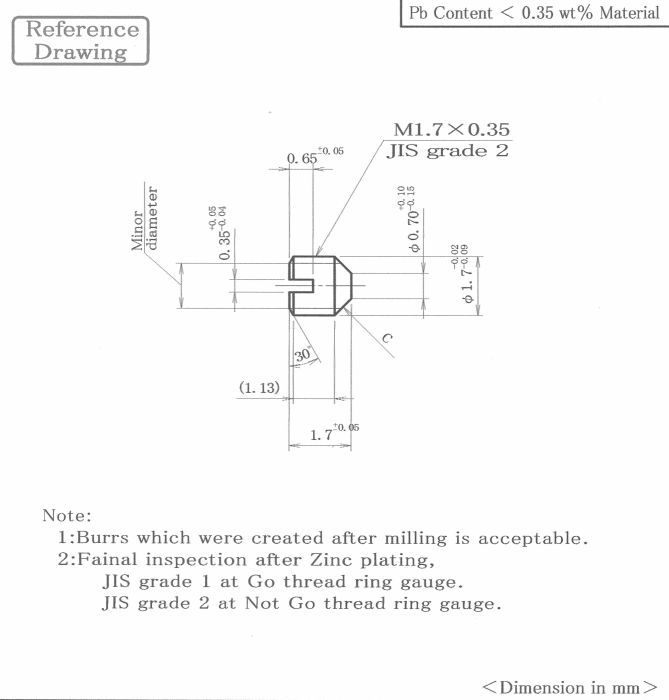

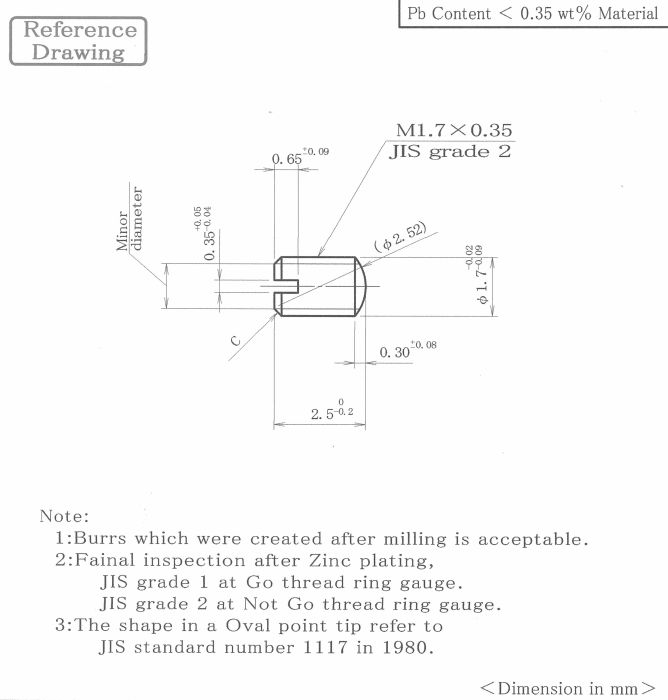

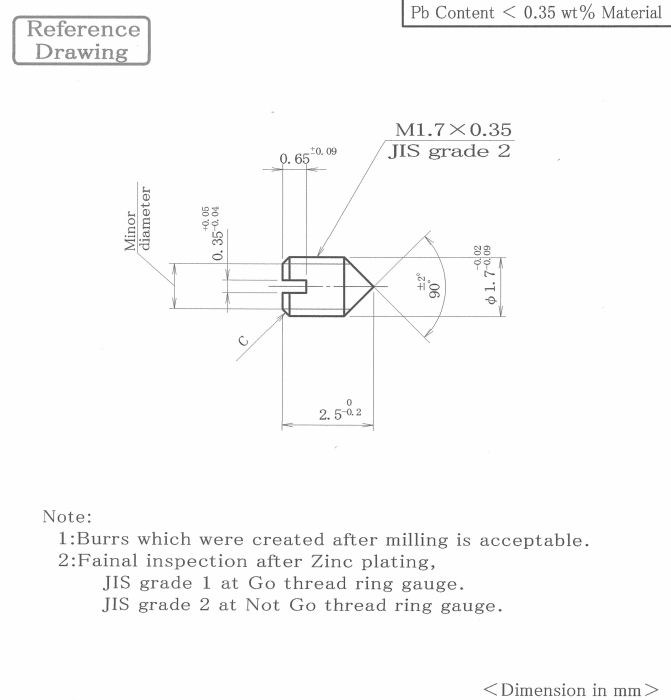

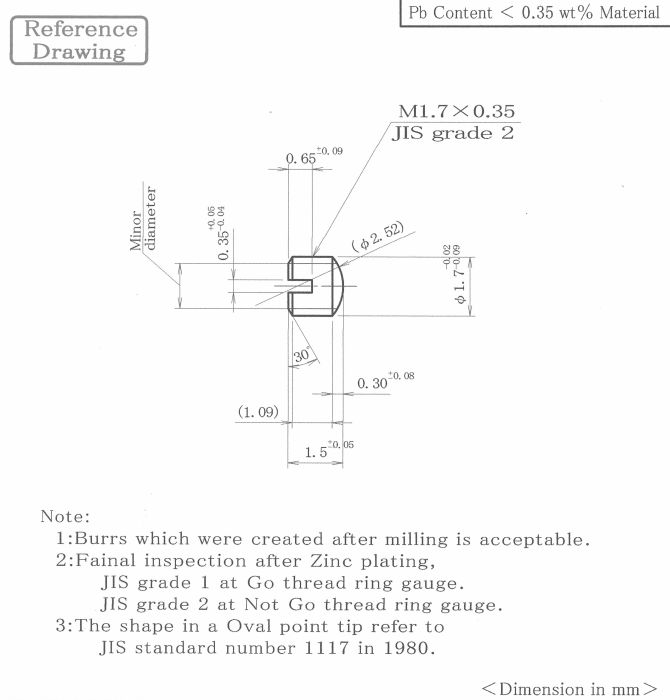

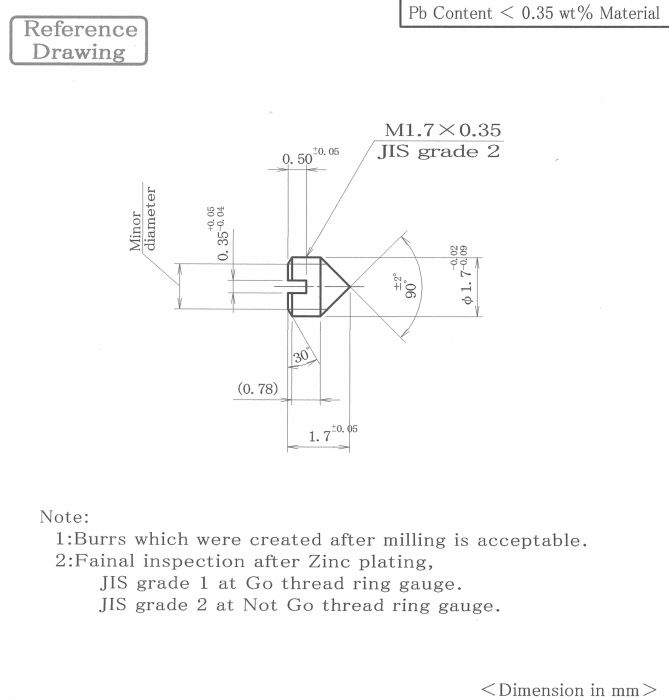

For example, M1.7x1.3 size is the nominal diameter M1.7, length 1.3 mm. You click a cell of size, a drawing of detailed dimensions is displayed. Please confirm the screw pitch, the tolerance of overall length, etc. in detailed drawing. Click each Tip shape to display a list of "nominal diameters" and "overall lengths" by its tip shape. Click each length to display a list of "tip shapes" and "nominal diameters" by its overall length.

We are manufacturing the flat point set screws in the cutting work. Therefore, the flatness accuracy of the flat point set screws is less than 0.01mm. In addition, the squareness of the threaded portion and the flat portion is less than 0.01mm. And, the variations of the flat diameter is less than 0.02mm.

Free-cutting steel (ASK2600S) is easy to be rusted, our standard stocks offers black or white zinc plating (trivalent). Other plating (electric nickel plating, electroless nickel plating, etc.) is possible as a special order product.
