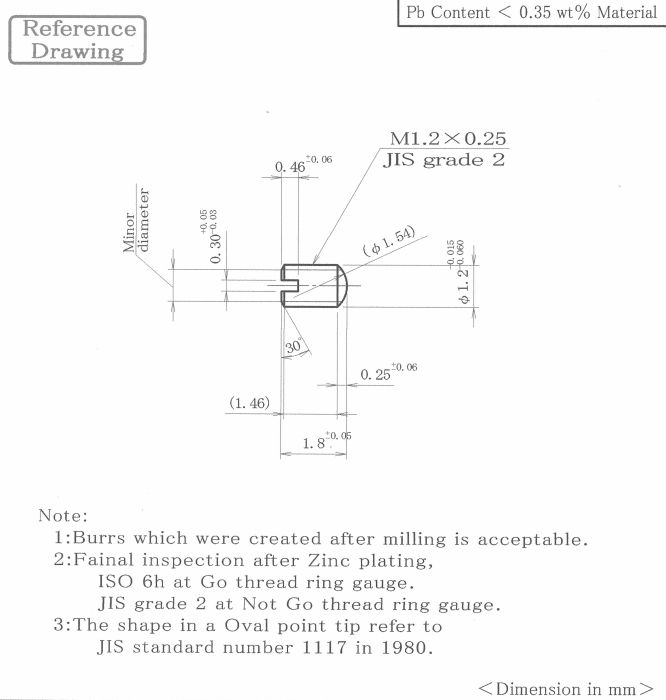

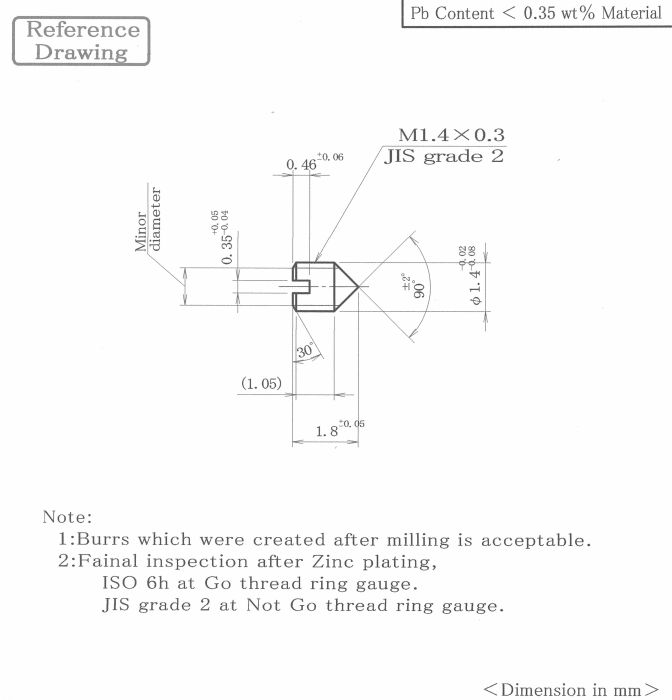

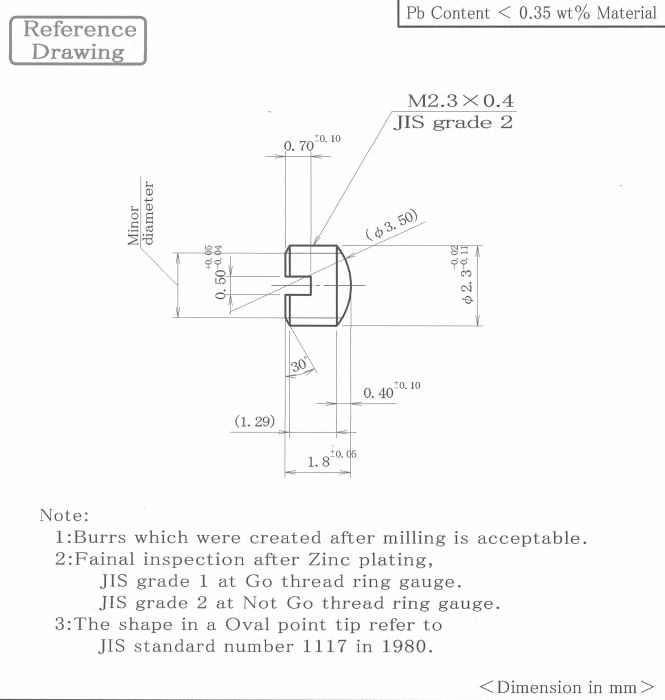

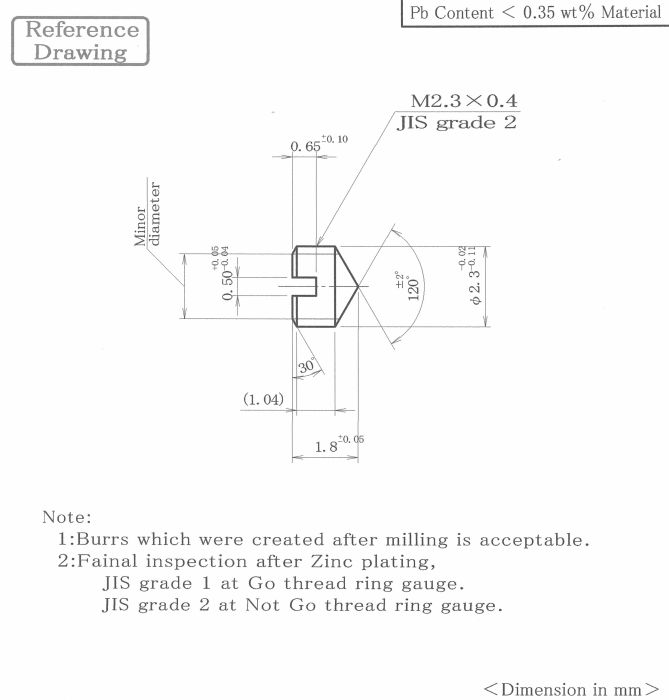

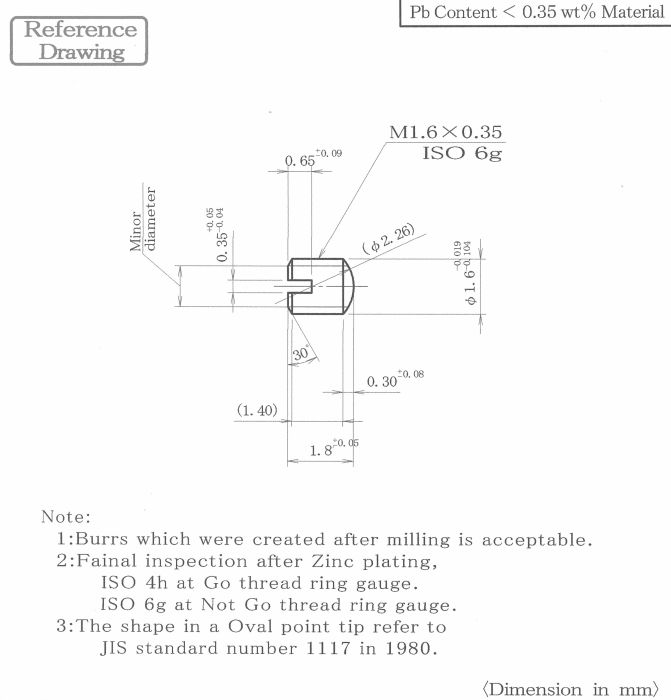

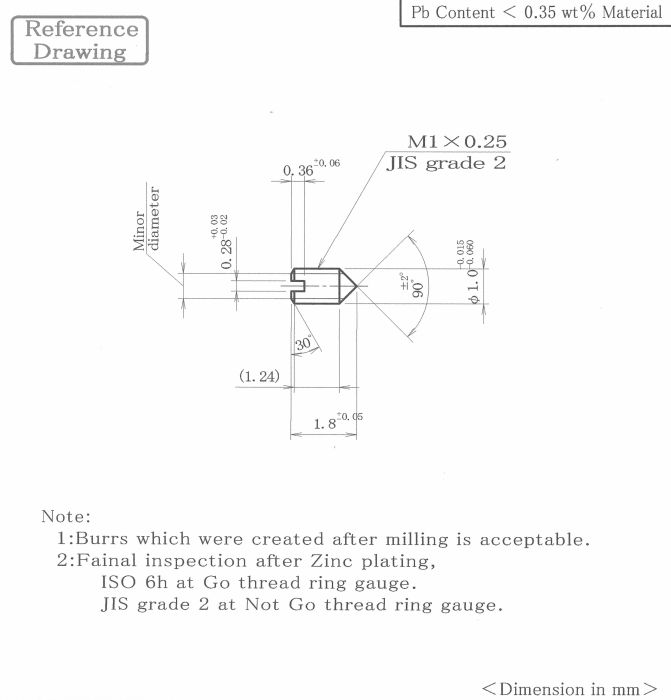

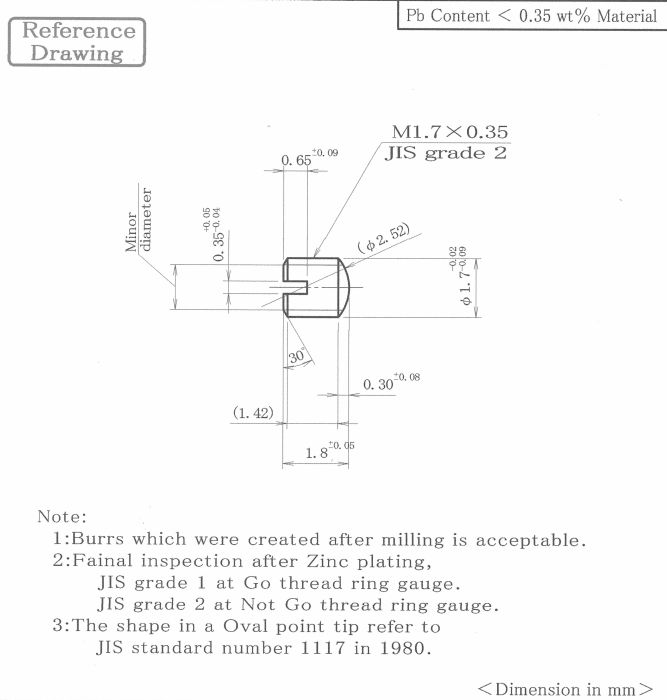

Overall length 1.8mm slotted set screw sizes chart
Nominal diameter : M1, M1.2, M1.4, M1.6, M1.7, M2, M2.3, M2.5
Free sample click here.
Overall length 1.8mm set screrw is not included in hexagon socket set screws.
|1.6mm size chart in click|
|1.7mm size chart in click|
|1.8mm size chart|
|2mm size chart in click|
|2.5mm size chart in click|
Free-cutting steel (ASK2600S)
with zinc plating (Black and White)
|Stainless steel (ASK3000FL)|

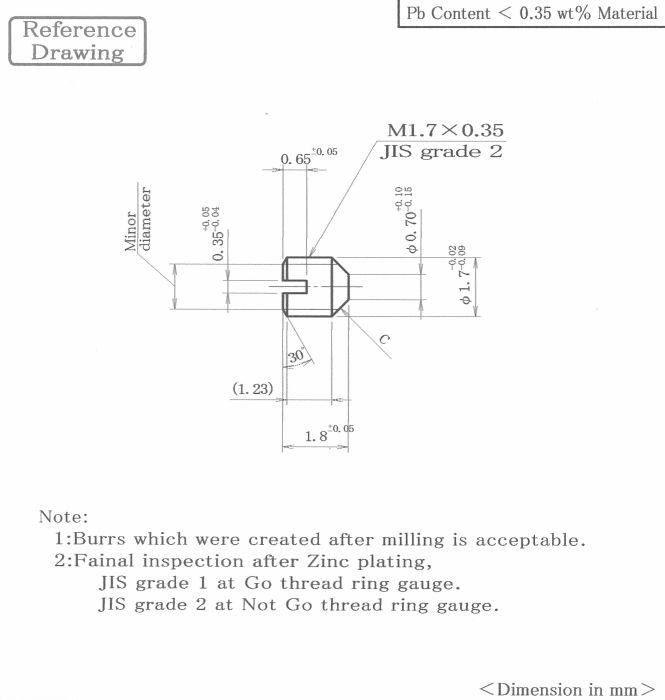

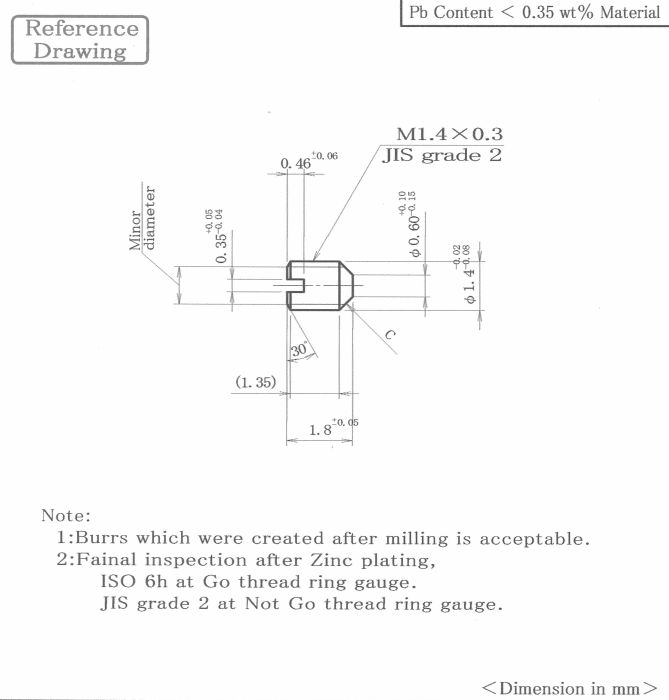

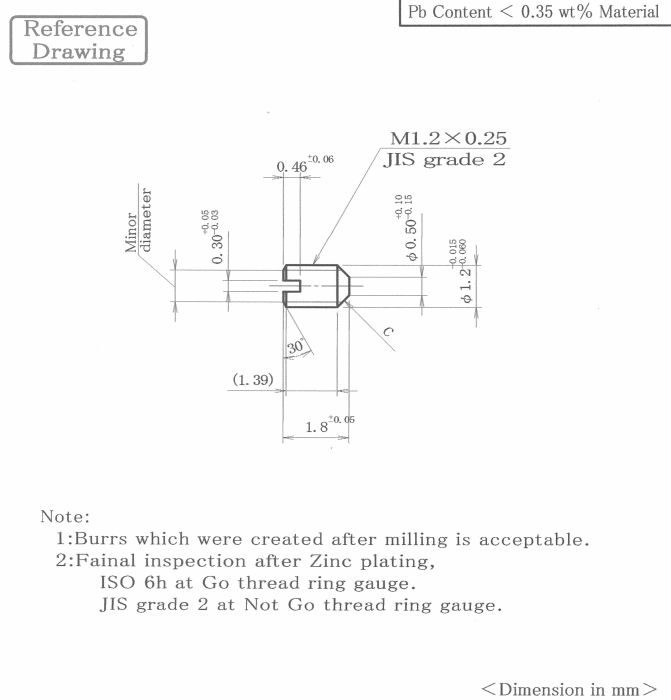

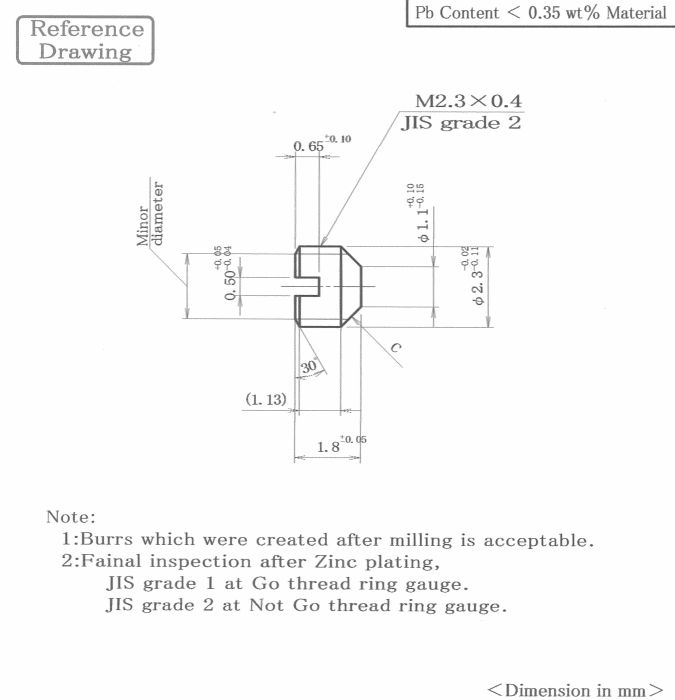

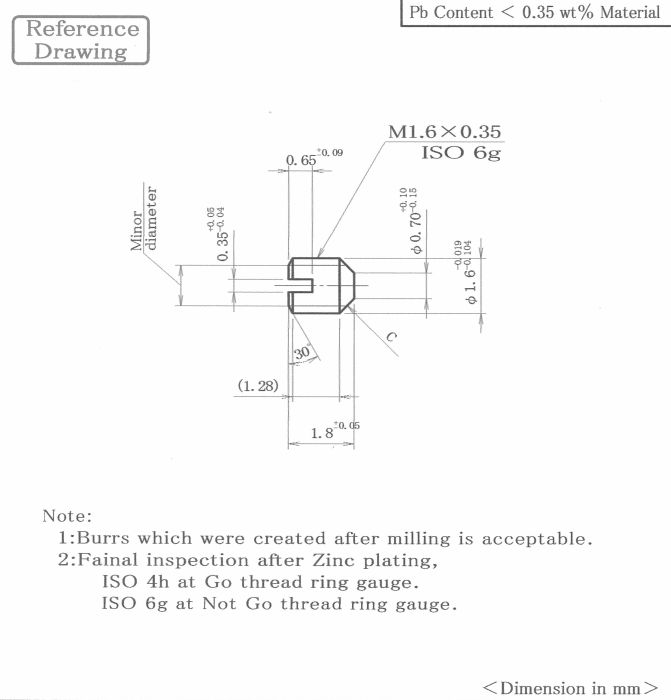

|Tip shape||Flat point
|Nominal diameter||Overall length (mm)|
We are manufacturing the flat point set screws in the cutting work. Therefore, the flatness accuracy of the flat point set screws is less than 0.01mm. In addition, the squareness of the threaded portion and the flat portion is less than 0.01mm. And, the variations of the flat diameter is less than 0.02mm.
Free-cutting steel (ASK2600S) is easy to be rusted, our standard stocks offers black or white zinc plating (trivalent). Other plating (electric nickel plating, electroless nickel plating, etc.) is possible as a special order product.
