 Cone Point Slotted Set Screws sizes chart  (metric screw)
Material : Free-cutting steel  with Zinc Plating
Free sample click here. 		Cone Point slotted set screws Steel 90 Black
Black 		Cone Point slotted set screws Steel 90 White
Silver
Nominal Dia.
 M1

 M1.2

 M1.4

 M1.6

 M1.7

 M2

 M2.3

 M2.5

length (mm)
1 M1x1 M1.2x1 Cone Point Slotted Set Screws in JIS standards click here
1.1 M1x1.1 M1.2x1.1 M1.4x1.1
1.2 M1x1.2 M1.2x1.2 M1.4x1.2
1.3 M1x1.3 M1.2x1.3 M1.4x1.3 M1.6x1.3 M1.7x1.3
1.4 M1x1.4 M1.2x1.4 M1.4x1.4 M1.6x1.4 M1.7x1.4
1.5 M1x1.5 M1.2x1.5 M1.4x1.5 M1.6x1.5 M1.7x1.5 M2x1.5
1.6 M1x1.6 M1.2x1.6 M1.4x1.6 M1.6x1.6 M1.7x1.6 M2x1.6 M2.3x1.6
1.7 M1x1.7 M1.2x1.7 M1.4x1.7 M1.6x1.7 M1.7x1.7 M2x1.7 M2.3x1.7
1.8 M1x1.8 M1.2x1.8 M1.4x1.8 M1.6x1.8 M1.7x1.8 M2x1.8 M2.3x1.8 M2.5x1.8
2 M1x2 M1.2x2 M1.4x2 M1.6x2 M1.7x2 M2x2 M2.3x2 M2.5x2
2.5 M1x2.5 M1.2x2.5 M1.4x2.5 M1.6x2.5 M1.7x2.5 M2x2.5 M2.3x2.5 M2.5x2.5
3 M1x3 M1.2x3 M1.4x3 M1.6x3 M1.7x3 M2x3 M2.3x3 M2.5x3
4 M1.6x4 M1.7x4 M2x4 M2.3x4 M2.5x4
5   M1.7x5 M2x5 M2.3x5 M2.5x5
6 M2x6 M2.3x6 M2.5x6

  • Explaining size M2x2.5 in the table, M2 is the nominal diameter and x2.5 is 2.5mm in overall length.

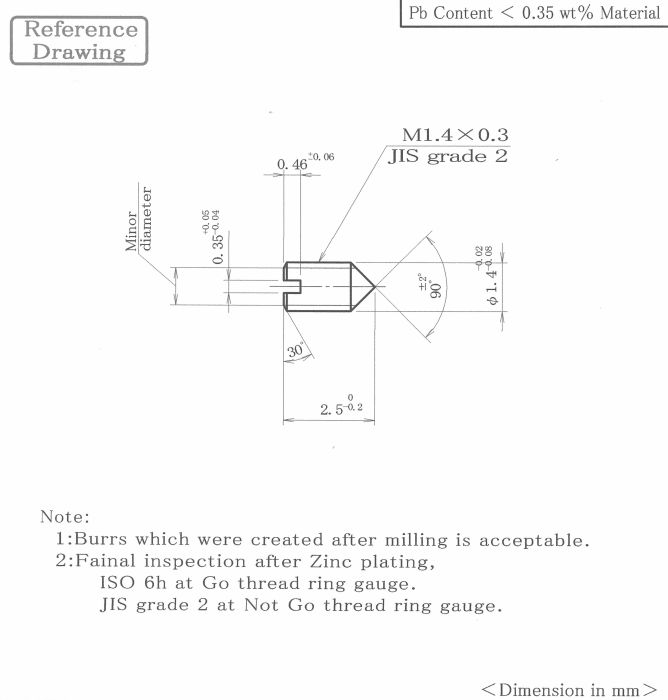

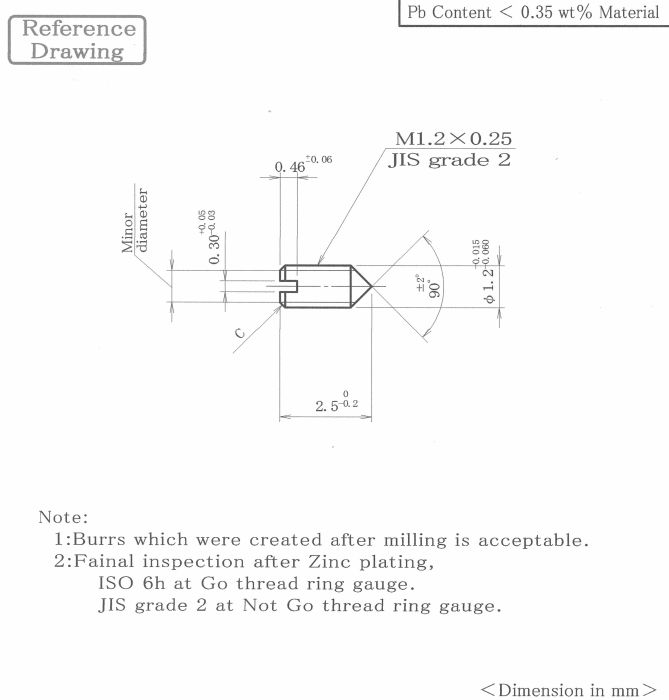

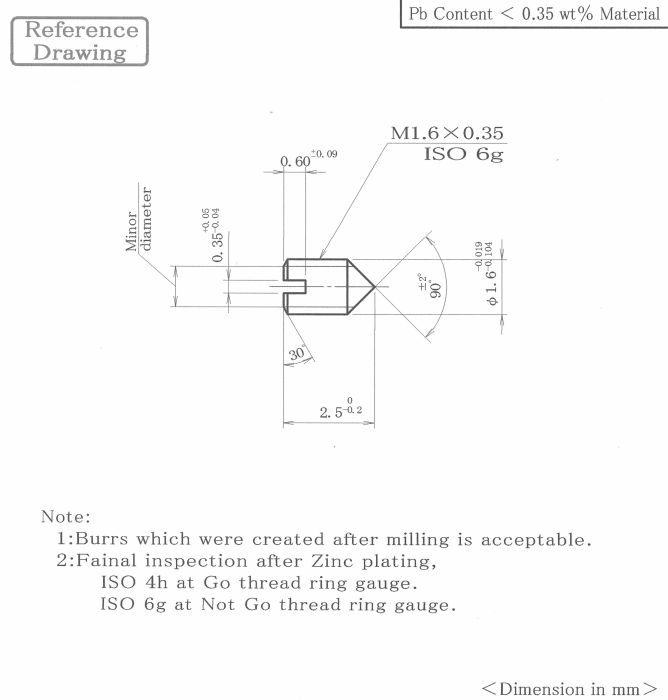

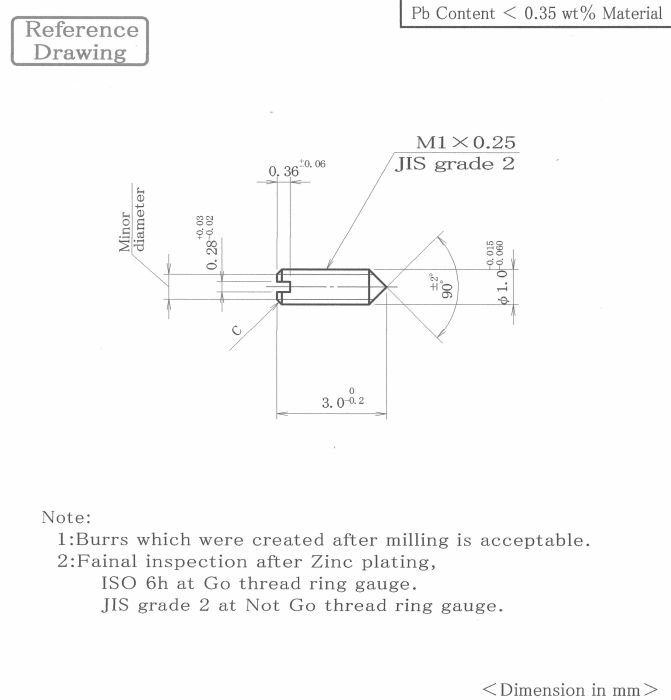

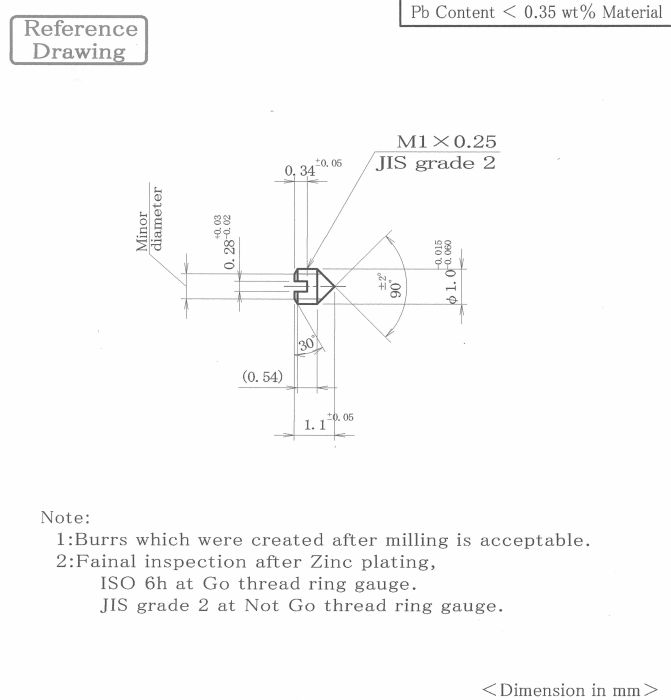

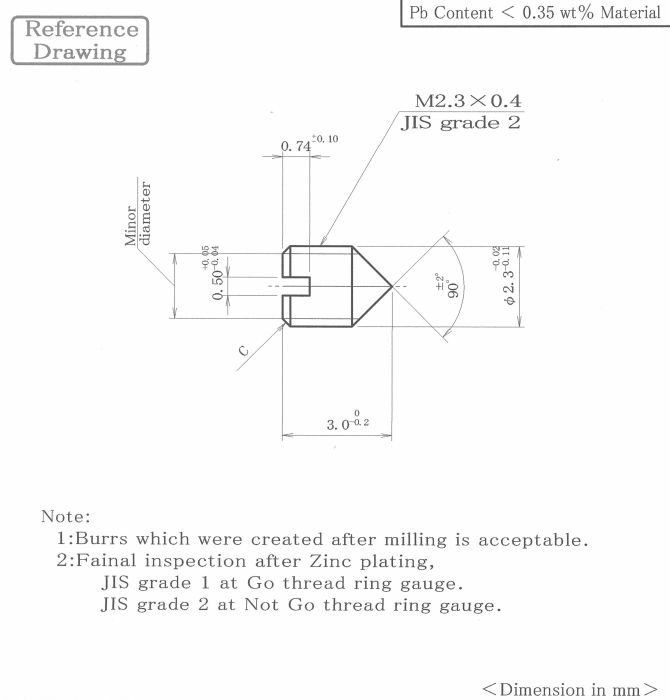

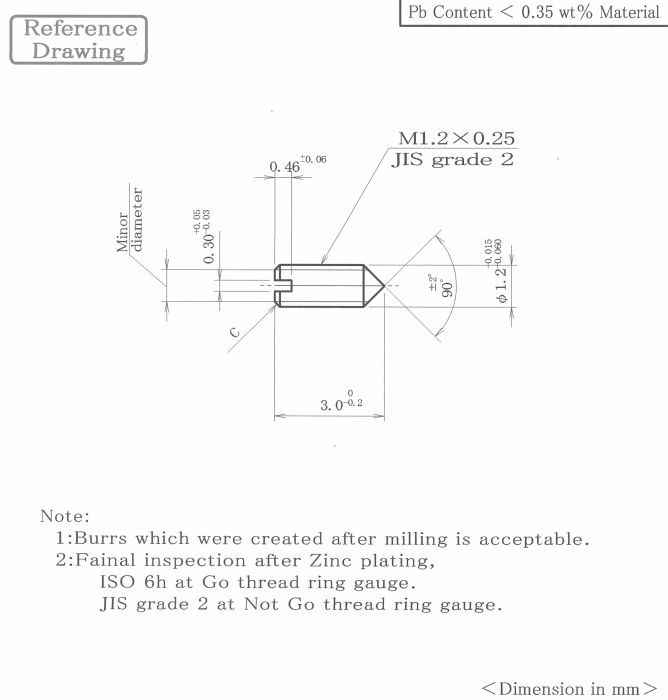

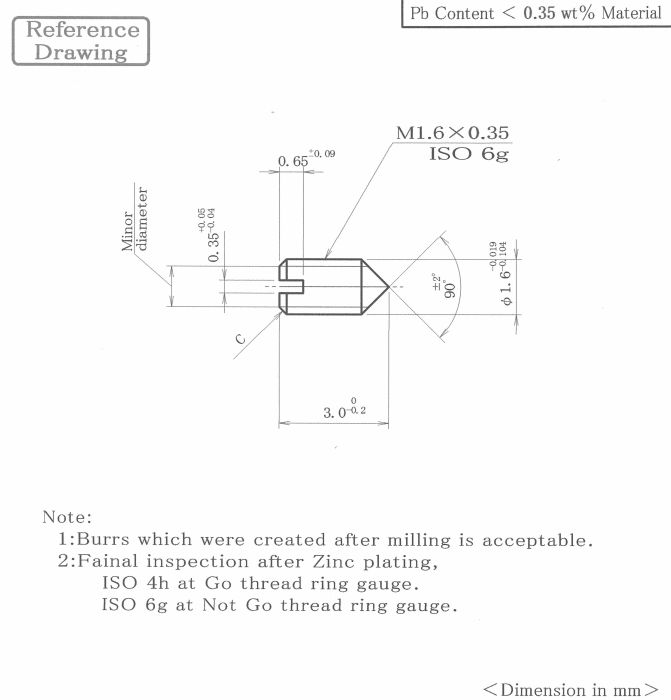

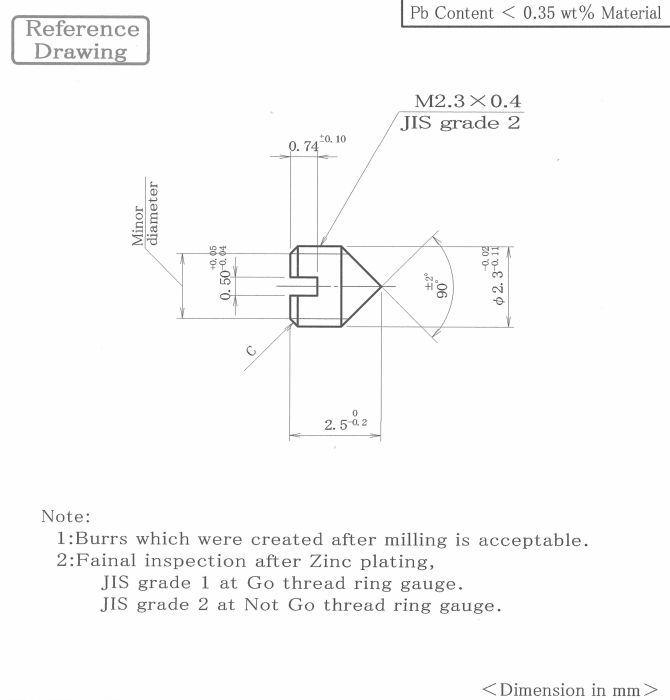

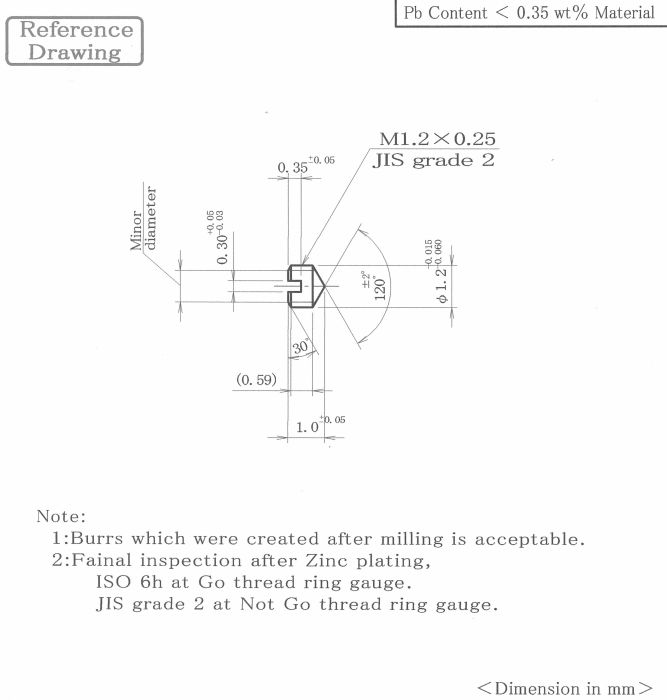

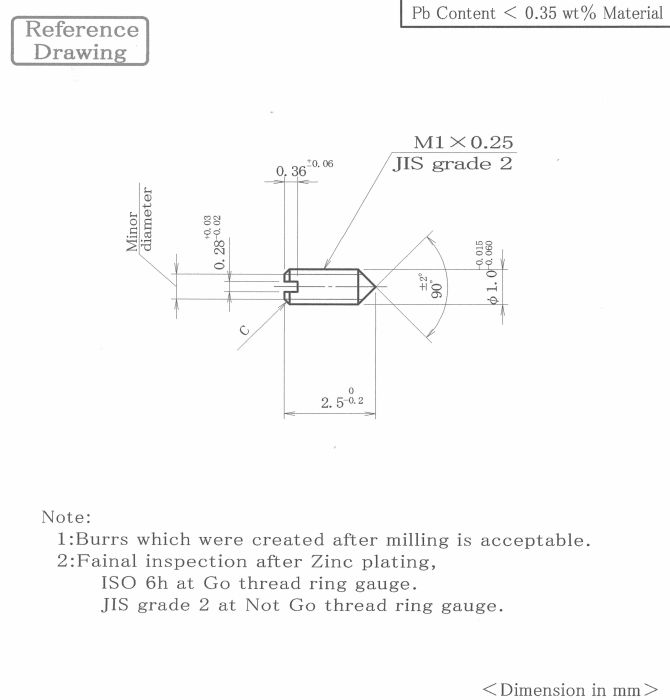

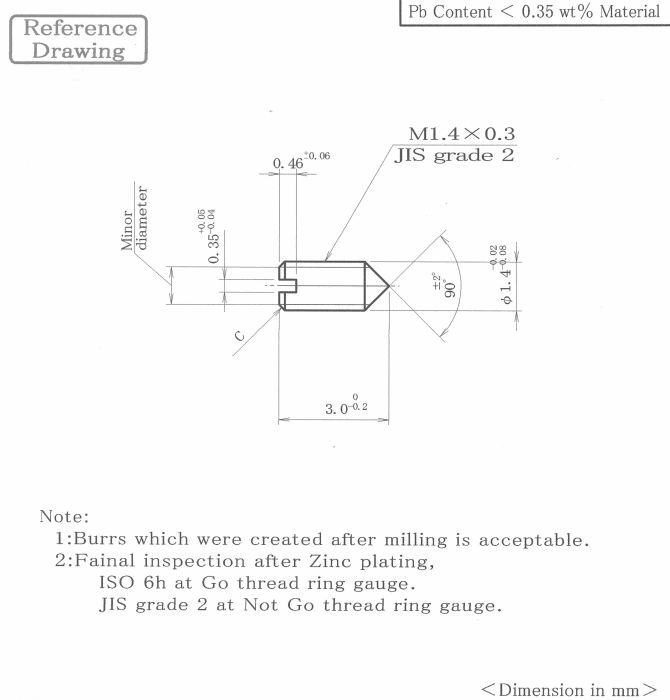

  • You click a cell of size, a drawing of detailed dimensions is displayed.
    Please confirm the screw pitch, the tolerance of overall length, etc. in detailed drawing.
  • Click each Nominal diameter to display a list of "tip shapes" and "overall lengths" by its nominal diameter.
  • Click each length to display a list of "tip shapes" and "nominal diameters" by its overall length.



We are manufacturing the slotted cone point set screws in the cutting work. So, concentricity of the threaded portion and the cone portion is less than 0.01mm.

Generally, in a cam-type automatic lathe, the screw thread will be manufactured by a cutting die. When manufactured in a cutting die, the breaking of "the screw thread triangular top part" sometimes occurs. As it is, because we are manufacturing the screw thread by the byte chasing processing in the same way as a NC lathe, the breaking of "the screw thread triangular top part" does not occurs.

The material of the slotted cone point set screws in this table are free-cutting steel (JIS SUM24L equivalent). Because the free-cutting steel is easy to be rusted, our standard stocks offers black or white zinc plating (trivalent). Other plating (electric nickel plating, electroless nickel plating, etc.) is possible as a special order product. We have the stocks of the slotted cone point set screws made of stainless steel in our standard.

Rotation of the slotted cone point set screws is done in the slotted screwdriver. Rotation of the hexagon socket cone point set screws is done in the hexagonal handle. In which case the rotation of the small set screws of less than M1.6, the slotted cone point set screws is does not become useless holes than the hexagon socket cone point set screws.

When you tie up a round shaft by the tip of the cone point set screws, it damage on outer diameter surface of the round shaft. For the purpose of not damaging the outer diameter surface of the round shaft, a portion of the round shaft has a flat portion. But, the position adjustment of the flat portion and set screw, require great care with the time of parts assembly. Insofar as the round shaft has a flat portion, when cone point set screw or cup point set screw is using, will be possible to tie up more firmly.
