Slotted set screw's nominal diameters are M1, M1.2, M1.4, M1.6, M1.7, M2, M2.3, M2.5, and M3. Slotted set screw's overall lengths are 1mm, 1.1mm, 1.2mm, 1.3mm, 1.4mm, 1.5mm, 1.6mm, 1.7mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm, 5mm and 6mm. Slotted set screw's tip shapes are flat point, cone point, oval point.

SAIDA Manufacturing Co. Ltd.
Akiruno-city Tokyo JAPAN

Return to the previous place

Overall length 2mm slotted set screw sizes chart Nominal diameter :  M1, M1.2, M1.4, M1.6, M1.7, M2, M2.3, M2.5, M3 Free sample click here. Overall length 2mm hexagon socket set screws click here.
					1.7mm size chart in click
					1.8mm size chart in click
					2mm size chart
					2.5mm size chart in click
					3mm size chart in click
Material		Free-cutting steel (ASK2600S) with zinc plating (Black and White)			Stainless steel (ASK3000FL)
Tip shape		Flat point	Cone point	Oval point	Flat point	Cone point
Nominal diameter	Overall length (mm)
M1	2	M1x2	M1x2	M1x2	M1x2	M1x2
M1.2		M1.2x2	M1.2x2	M1.2x2	M1.2x2	M1.2x2
M1.4		M1.4x2	M1.4x2	M1.4x2	M1.4x2	M1.4x2
M1.6		M1.6x2	M1.6x2	M1.6x2	M1.6x2	M1.6x2
M1.7		M1.7x2	M1.7x2	M1.7x2	M1.7x2	M1.7x2
M2		M2x2	M2x2	M2x2	M2x2	M2x2
M2.3		M2.3x2	M2.3x2	M2.3x2
M2.5		M2.5x2	M2.5x2	M2.5x2	M2.5x2
M3					M3x2

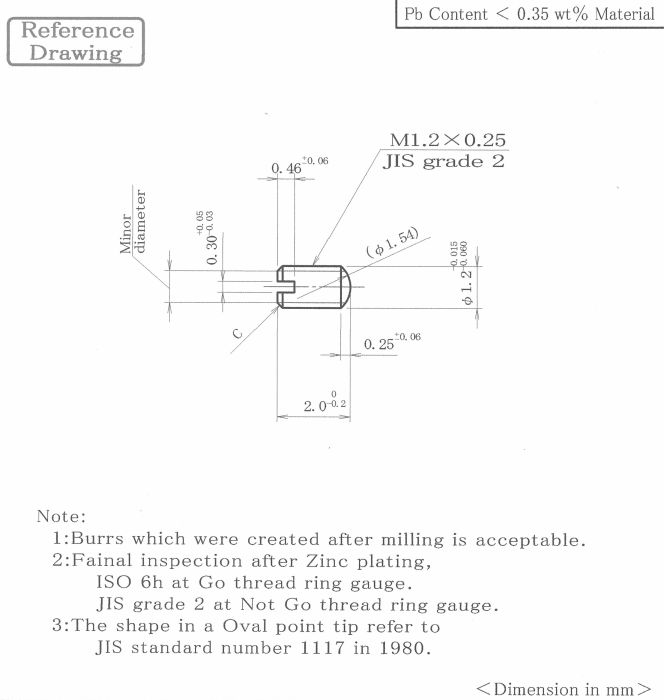

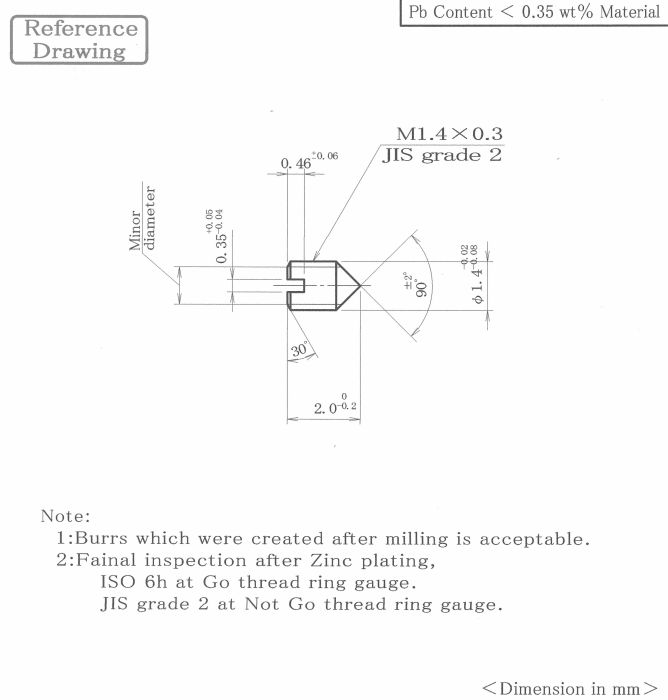

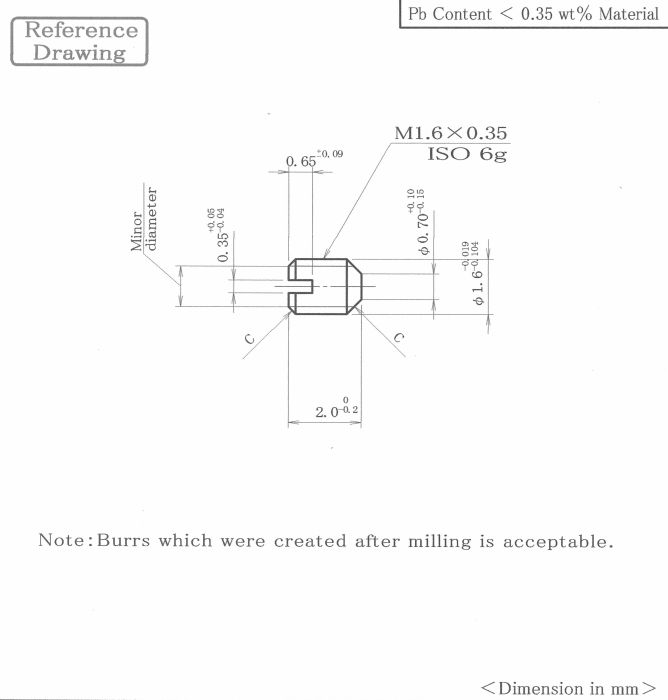

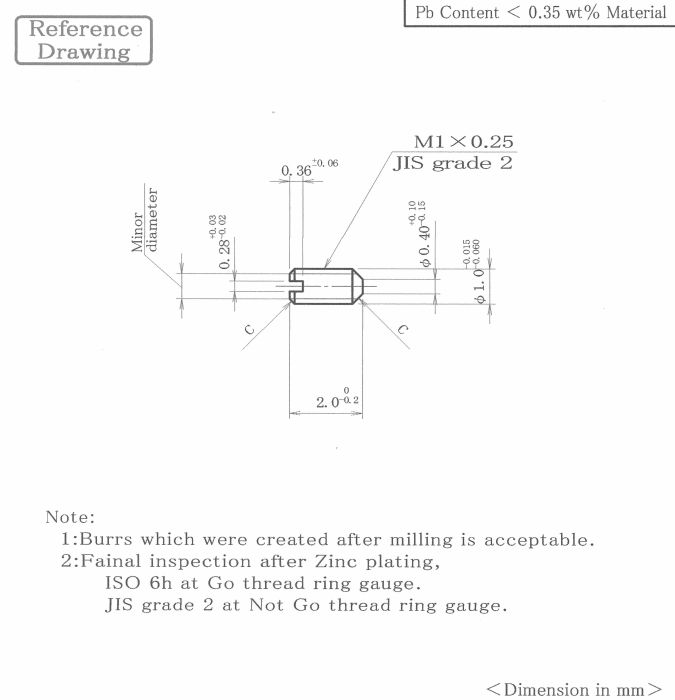

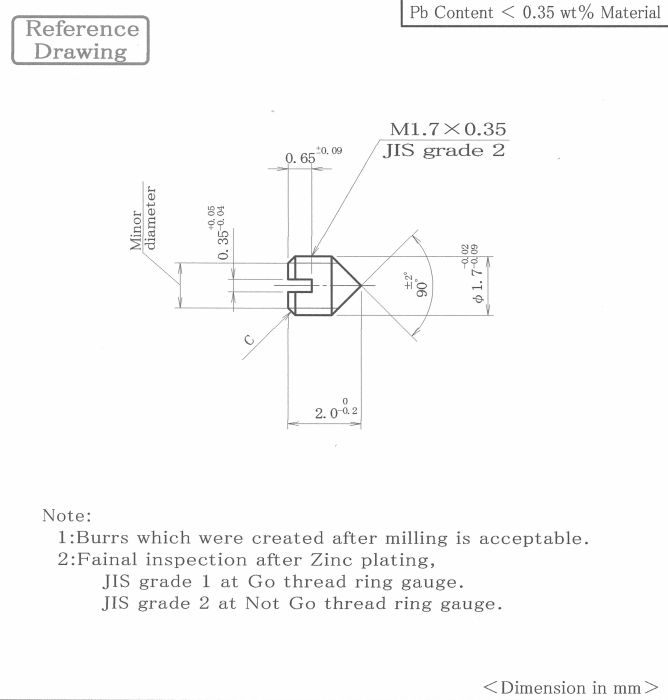

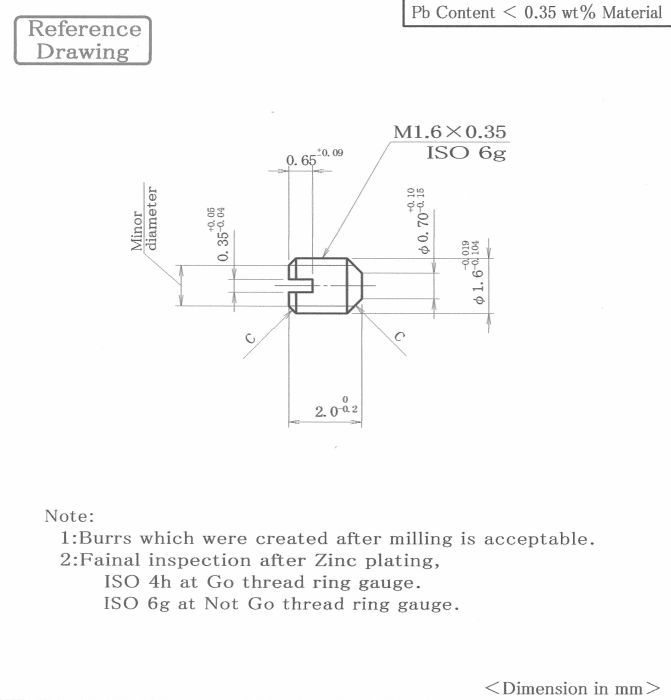

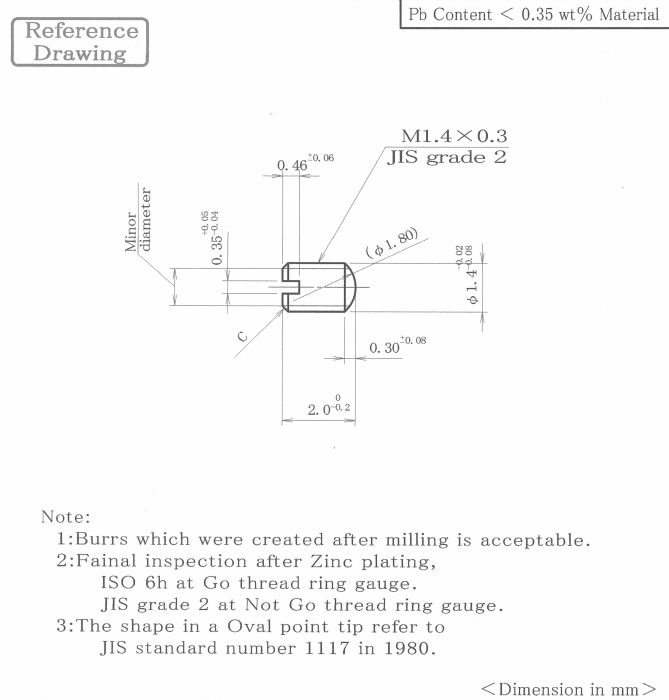

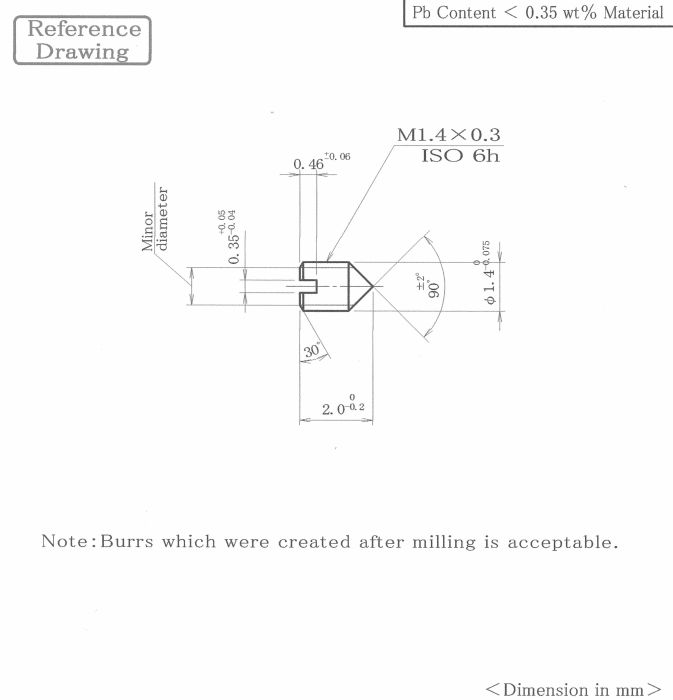

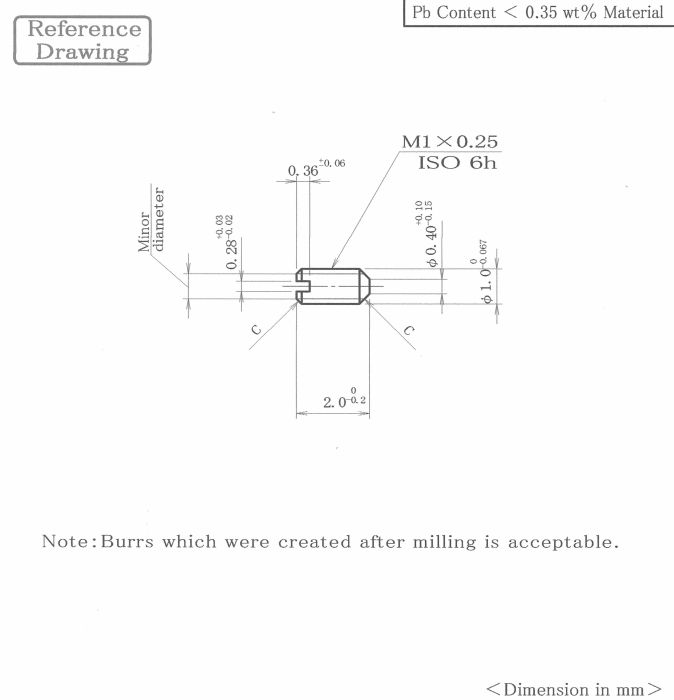

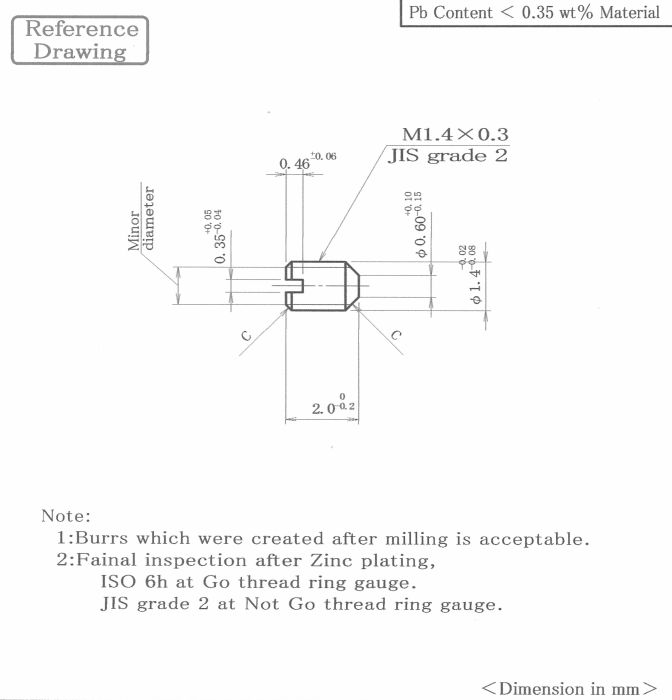

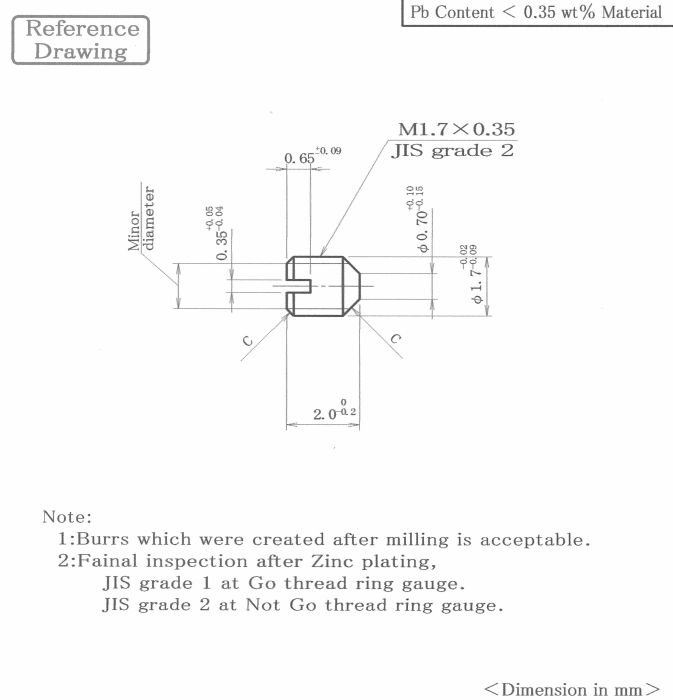

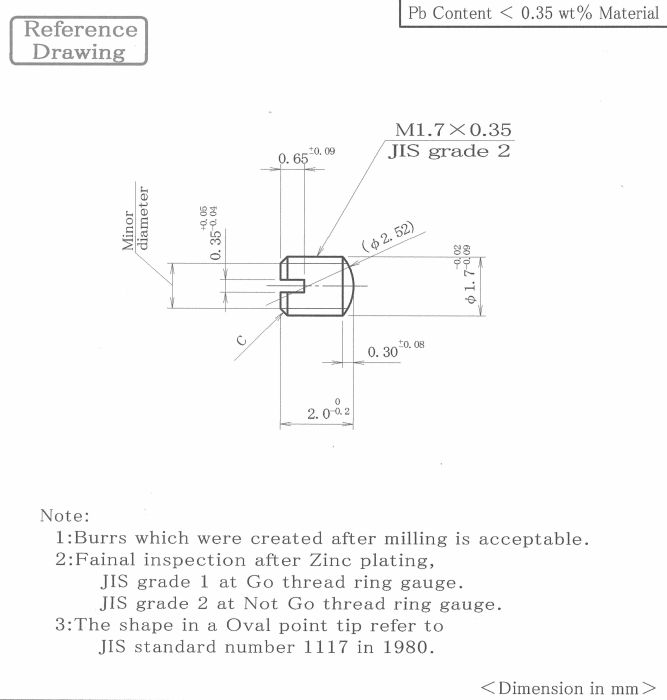

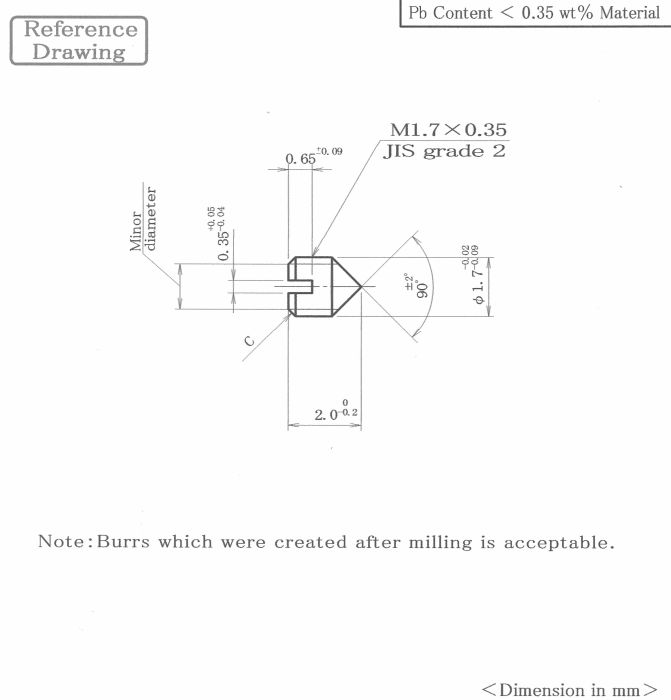

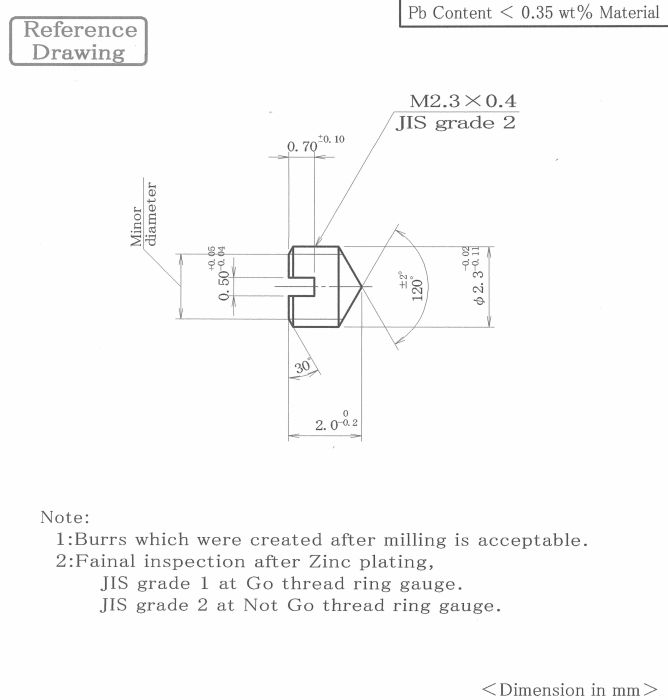

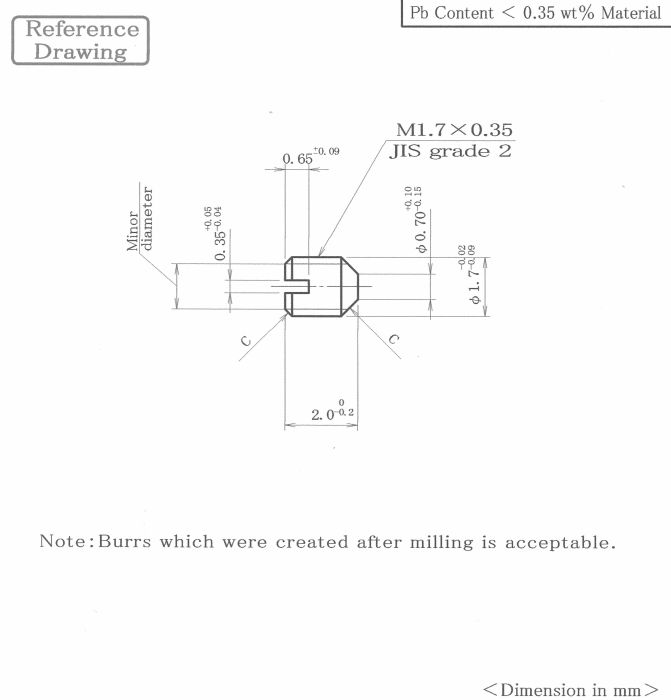

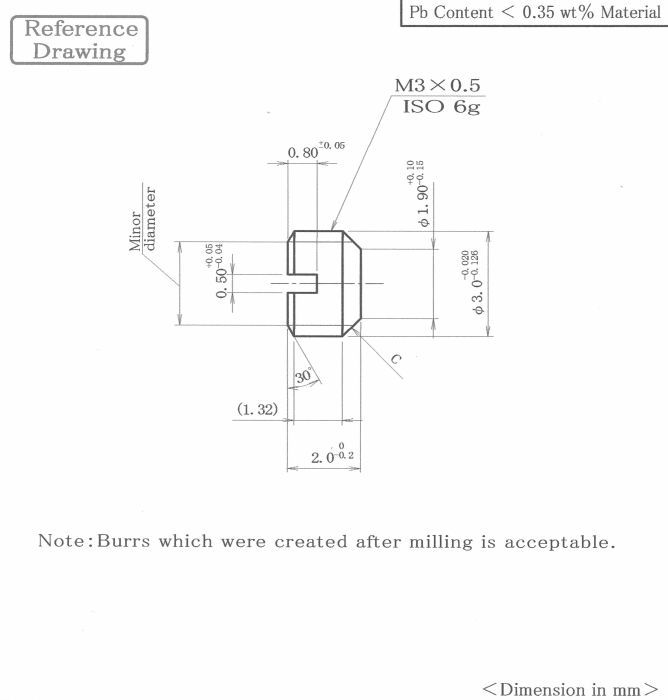

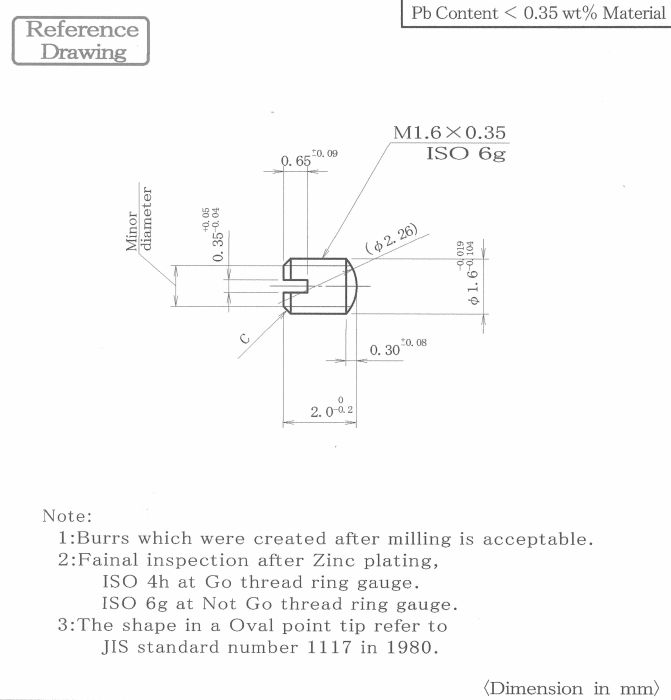

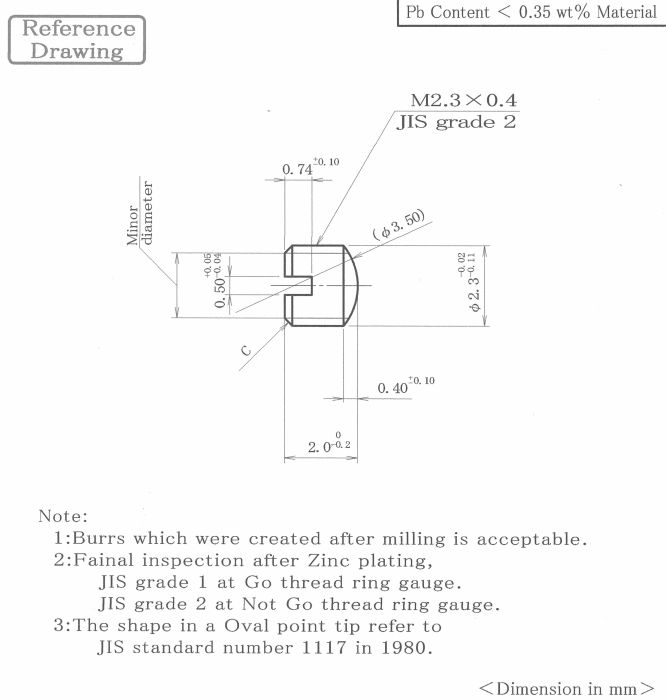

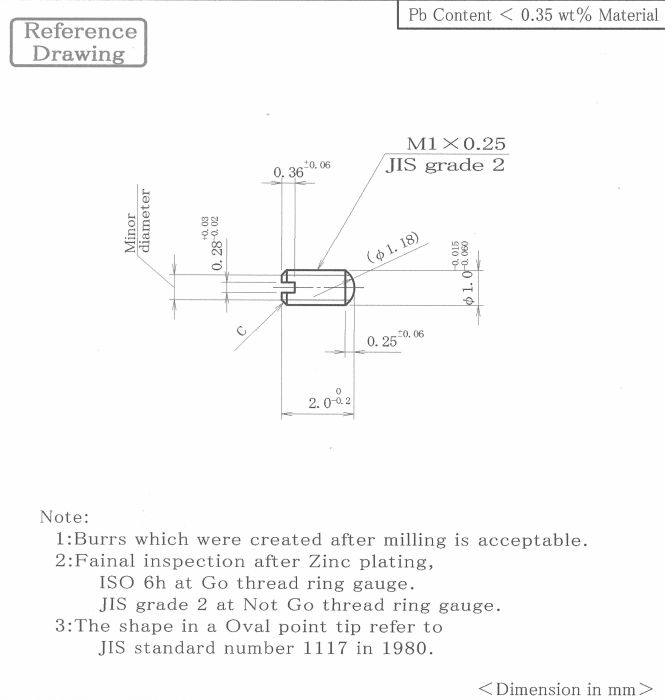

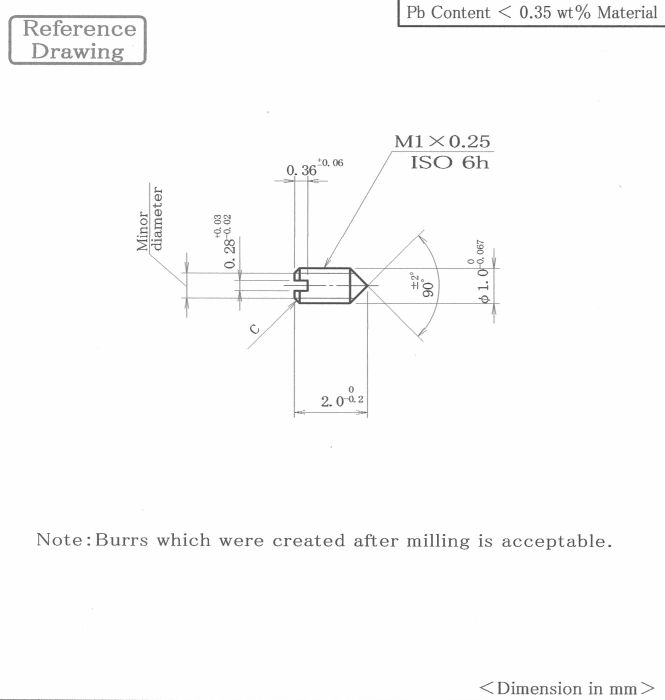

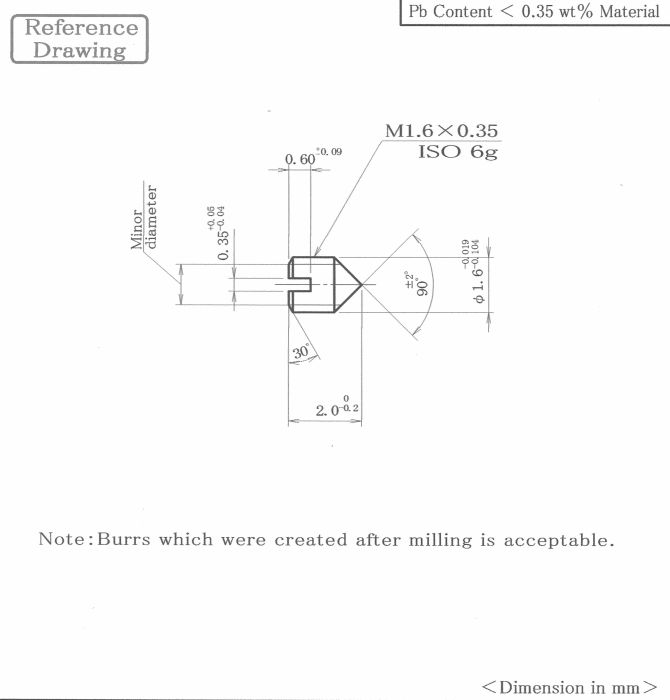

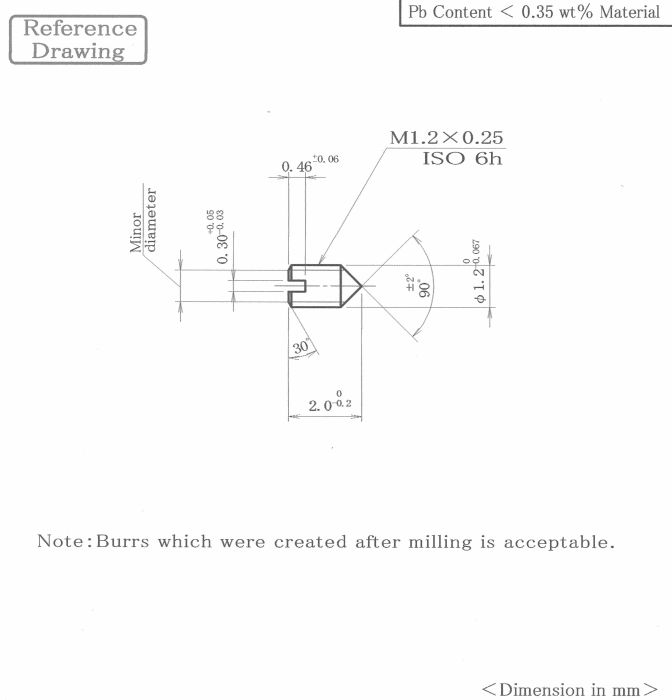

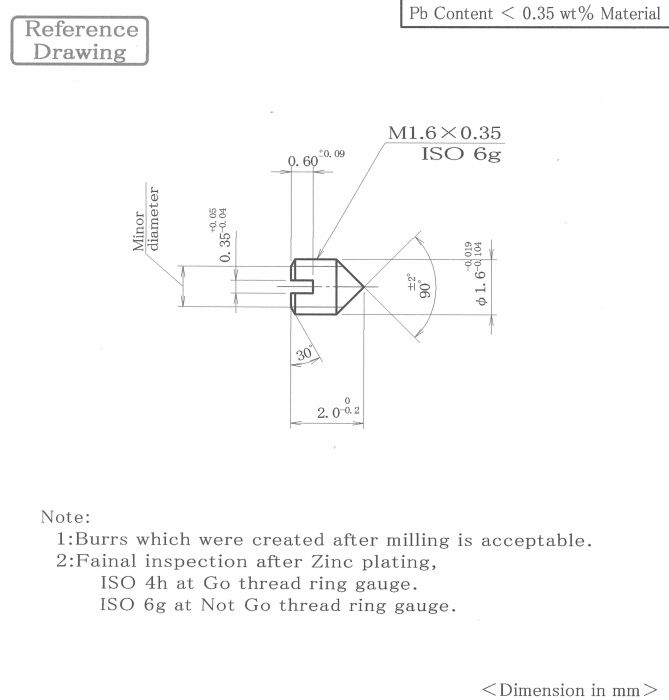

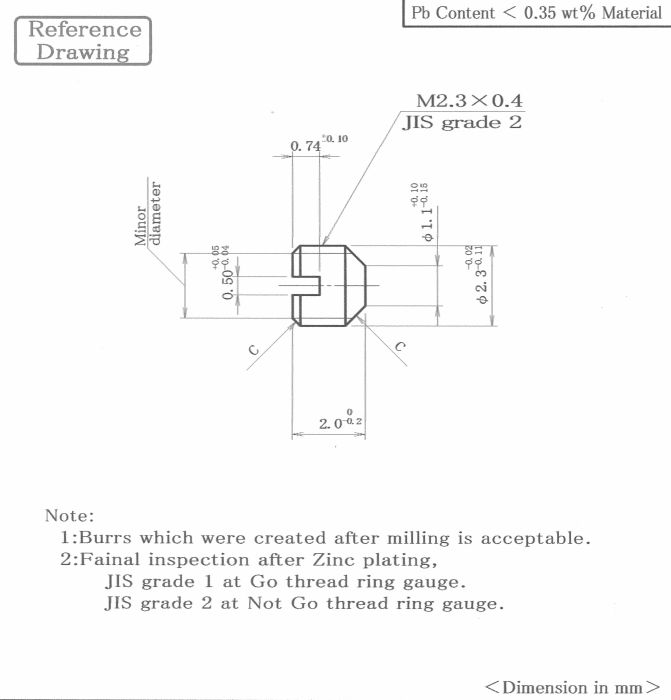

For example, M1x2 size is the nominal diameter M1, length 2 mm. You click a cell of size, a drawing of detailed dimensions is displayed. Please confirm the screw pitch, the tolerance of overall length, etc. in detailed drawing. Click each Tip shape to display a list of "nominal diameters" and "overall lengths" by its tip shape. Click each Nominal diameter to display a list of "tip shapes" and "overall lengths" by its nominal diameter.

We are manufacturing the flat point set screws in the cutting work. Therefore, the flatness accuracy of the flat point set screws is less than 0.01mm. In addition, the squareness of the threaded portion and the flat portion is less than 0.01mm. And, the variations of the flat diameter is less than 0.02mm.

Free-cutting steel (ASK2600S) is easy to be rusted, our standard stocks offers black or white zinc plating (trivalent). Other plating (electric nickel plating, electroless nickel plating, etc.) is possible as a special order product.
