M1.6 slotted set screws overall length by Tip shape
Nominal diameter x Pitch : M1.6 x 0.35
Free sample click here.
M1.6 hexagon socket set screws click here.
M1.2 size chart in click
M1.4 size chart in click
M1.6 size chart
M1.7 size chart in click
M2 size chart in click
Free-cutting steel (ASK2600S)
with zinc plating (Black and White)
|Stainless steel (ASK3000FL)|

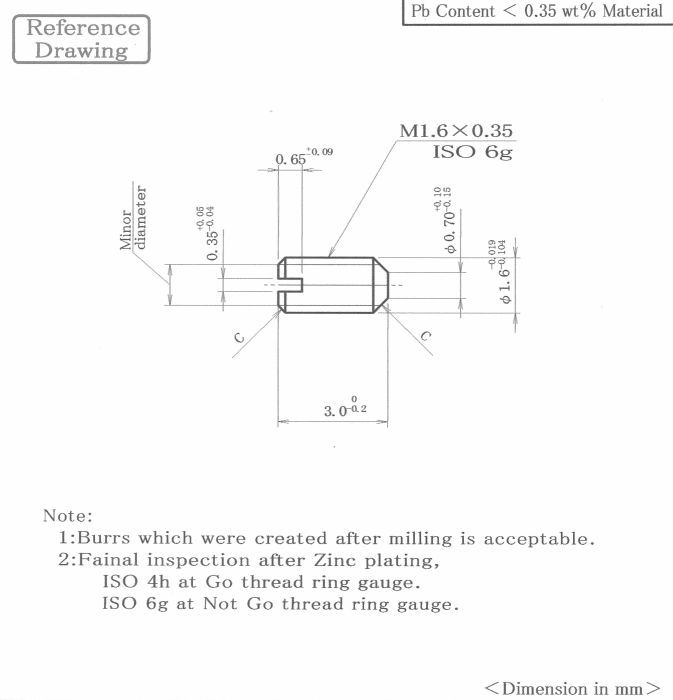

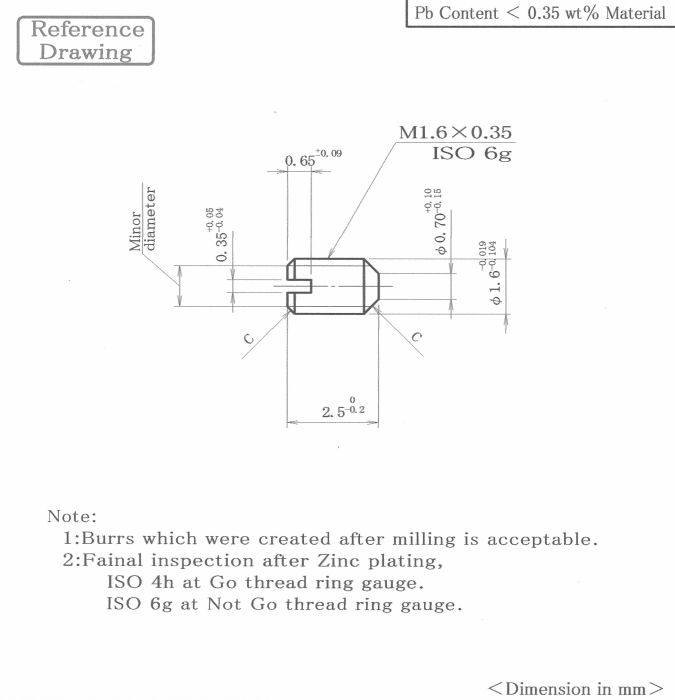

|Tip shape||Flat point
|Nominal diameter||length (mm)|
We are manufacturing the flat point set screws in the cutting work. Therefore, the flatness accuracy of the flat point set screws is less than 0.01mm. In addition, the squareness of the threaded portion and the flat portion is less than 0.01mm. And, the variations of the flat diameter is less than 0.02mm.
Free-cutting steel (ASK2600S) is easy to be rusted, our standard stocks offers black or white zinc plating (trivalent). Other plating (electric nickel plating, electroless nickel plating, etc.) is possible as a special order product.
