We specialize in small flat point set screws.

Slotted set screw's nominal diameters are M1, M1.2, M1.4, M1.6, M1.7, M2, M2.3, M2.5, and M3. Slotted set screw's overall lengths are 1mm, 1.1mm, 1.2mm, 1.3mm, 1.4mm, 1.5mm, 1.6mm, 1.7mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm, 5mm and 6mm. Slotted set screw's tip shapes are flat point, cone point, oval point.

SAIDA Manufacturing Co. Ltd.
Akiruno-city Tokyo JAPAN

Return to the previous place

M3 slotted set screws size chart Nominal diameter x Pitch : M3 x 0.5 Free sample click here. M3 hexagon socket set screws click here.
					M1.6 size chart in click
					M1.7 size chart in click
					M2.3 size chart in click
					M2.5 size chart in click
					M3 size chart
Material		Free-cutting steel (ASK2600S) with zinc plating (Black and White)			Stainless steel (ASK3000FL)
Tip shape		Flat point	Cone point	Oval point	Flat point	Cone point
Nominal diameter	length (mm)	Flat point	Cone point	Oval point	Flat point	Cone point
M3	1
	1.1
	1.2
	1.3
	1.4
	1.5
	1.6
	1.7
	1.8
	2				M3x2
	2.5				M3x2.5
	3				M3x3	M3x3
	3.5				M3x3.5	M3x3.5
	4				M3x4	M3x4
	5				M3x5	M3x5
	6				M3x6	M3x6

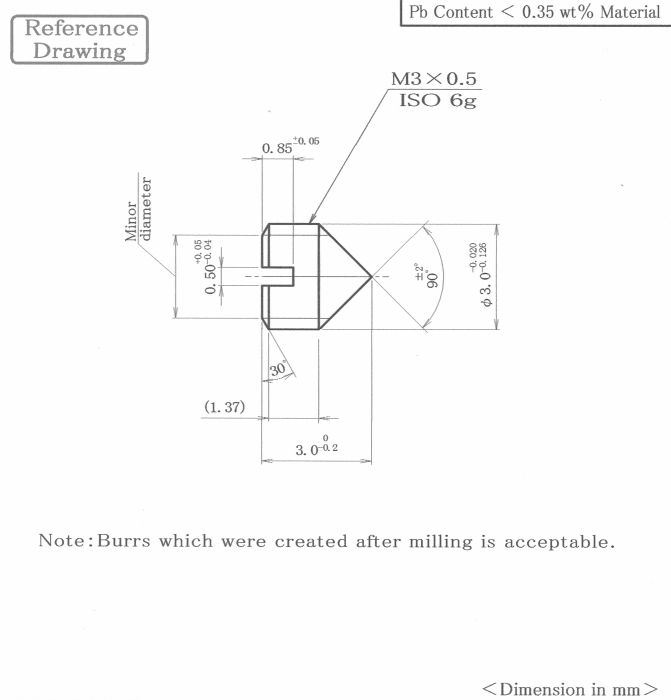

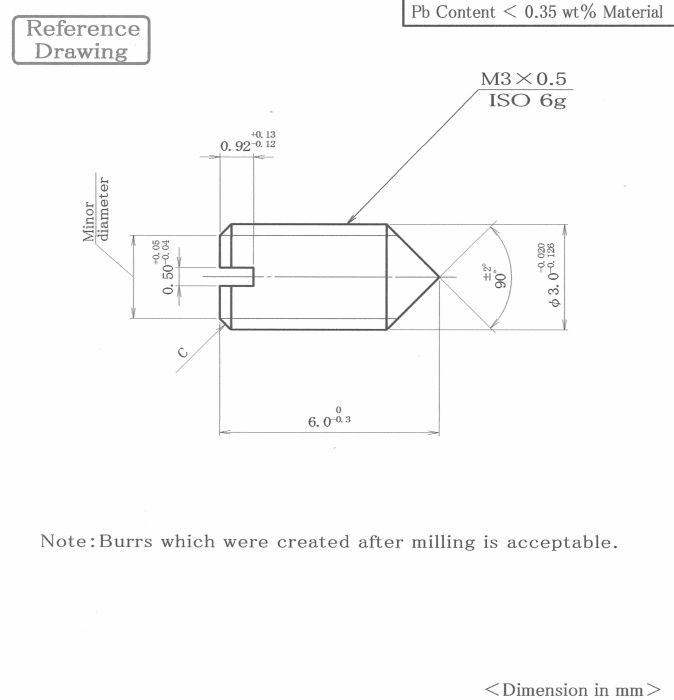

For example, M3x2 size is the nominal diameter M3, length 2 mm. You click a cell of size, a drawing of detailed dimensions is displayed. Please confirm the screw pitch, the tolerance of overall length, etc. in detailed drawing. Click each Tip shape to display a list of "nominal diameters" and "overall lengths" by its tip shape. Click each length to display a list of "tip shapes" and "nominal diameters" by its overall length.

We are manufacturing the flat point set screws in the cutting work. Therefore, the flatness accuracy of the flat point set screws is less than 0.01mm. In addition, the squareness of the threaded portion and the flat portion is less than 0.01mm. And, the variations of the flat diameter is less than 0.02mm.
