M2.3 slotted set screws overall length by Tip shape
Nominal diameter x Pitch : M2.3 x 0.4
Free sample click here.
M2.3 set screrw is not included in hexagon socket set screws.
M1.7 size chart in click
M2 size chart in click
M2.3 size chart
M2.5 size chart in click
M3 size chart in click
Material  Free-cutting steel (ASK2600S)
with zinc plating (Black and White)
Stainless steel (ASK3000FL)
Tip shape  Flat point
鉄製の平先イモネジ
Cone point
鉄製のとがり先イモネジ
Oval point
鉄製の丸先イモネジ
Flat point
ステンレス製の平先イモネジ
Cone point
ステンレス製のとがり先イモネジ
Nominal diameter length (mm)
M2.3 1
1.1
1.2
1.3
1.4 M2.3x1.4
1.5 M2.3x1.5
1.6 M2.3x1.6 M2.3x1.6 M2.3x1.6
1.7 M2.3x1.7 M2.3x1.7 M2.3x1.7
1.8 M2.3x1.8 M2.3x1.8 M2.3x1.8
2 M2.3x2 M2.3x2 M2.3x2
2.5 M2.3x2.5 M2.3x2.5 M2.3x2.5
3 M2.3x3 M2.3x3 M2.3x3
4 M2.3x4 M2.3x4 M2.3x4
5 M2.3x5 M2.3x5 M2.3x5
6 M2.3x6 M2.3x6 M2.3x6

  • For example, M2.3x1.6 size is the nominal diameter M2.3, length 1.6 mm.

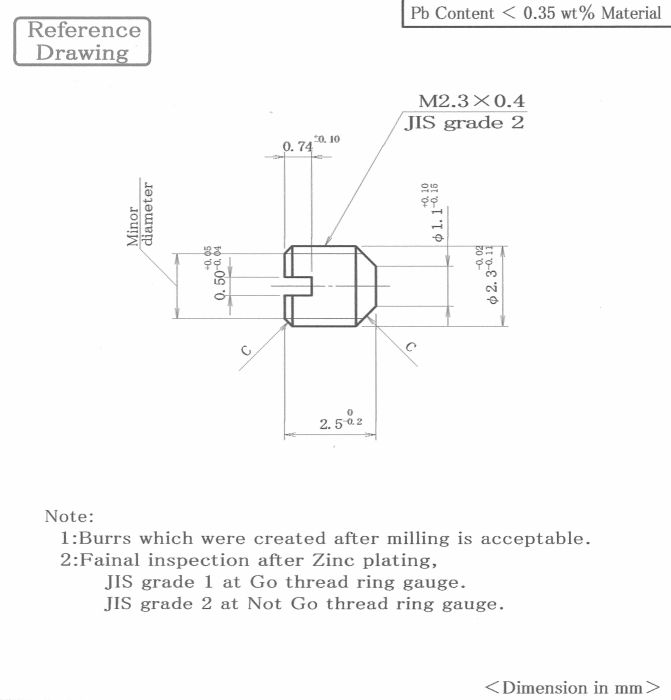

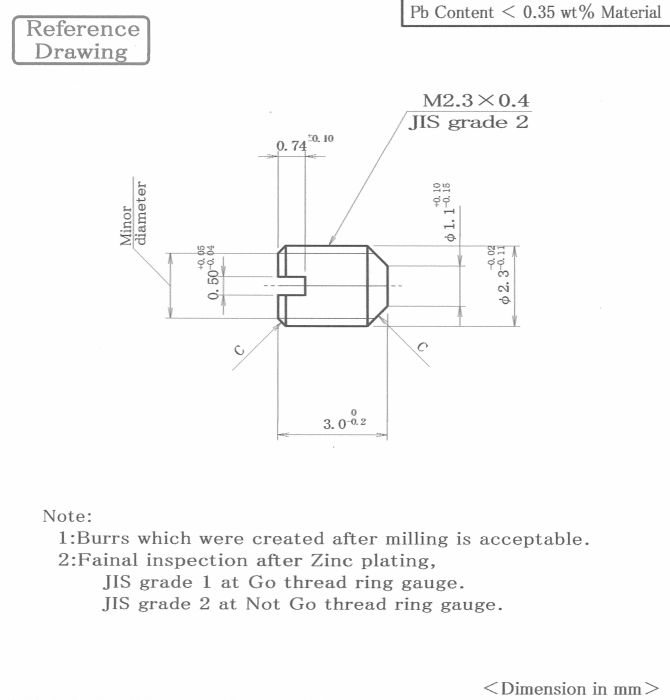

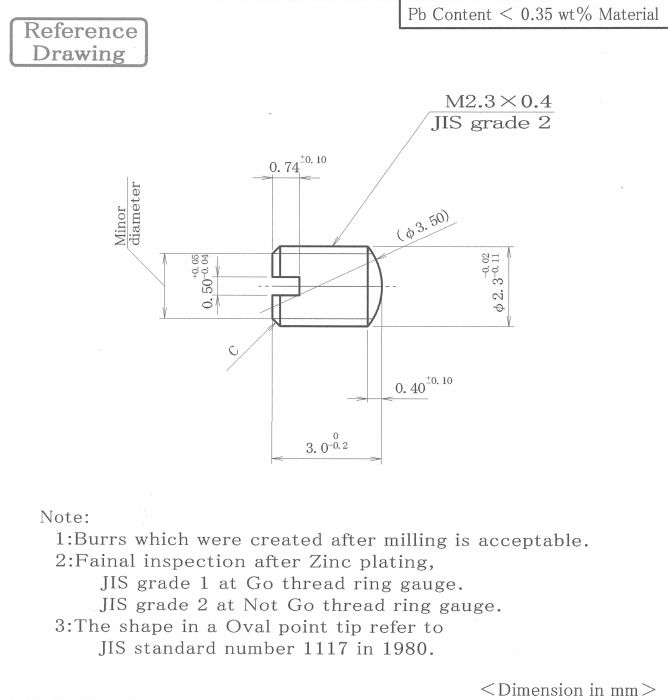

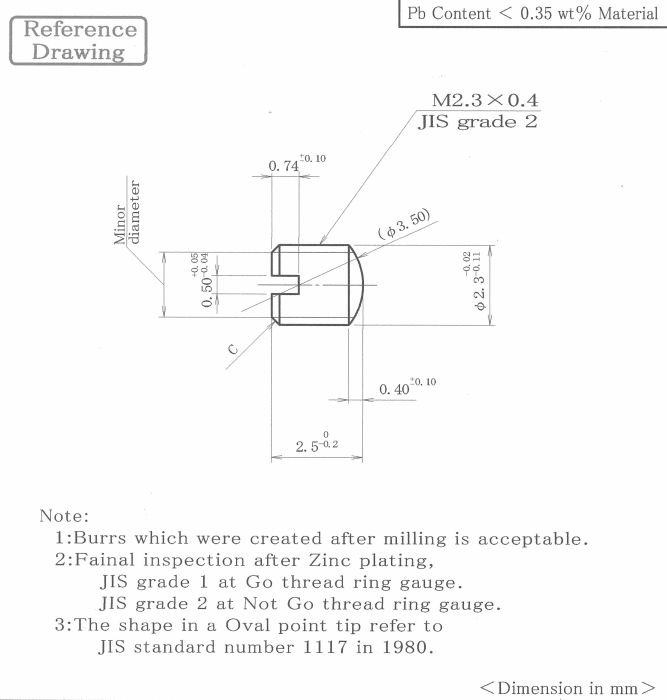

  • You click a cell of size, a drawing of detailed dimensions is displayed.
    Please confirm the screw pitch, the tolerance of overall length, etc. in detailed drawing.
  • Click each Tip shape to display a list of "nominal diameters" and "overall lengths" by its tip shape.
  • Click each length to display a list of "tip shapes" and "nominal diameters" by its overall length.

We are manufacturing the flat point set screws in the cutting work. Therefore, the flatness accuracy of the flat point set screws is less than 0.01mm. In addition, the squareness of the threaded portion and the flat portion is less than 0.01mm. And, the variations of the flat diameter is less than 0.02mm.

Free-cutting steel (ASK2600S) is easy to be rusted, our standard stocks offers black or white zinc plating (trivalent). Other plating (electric nickel plating, electroless nickel plating, etc.) is possible as a special order product.
